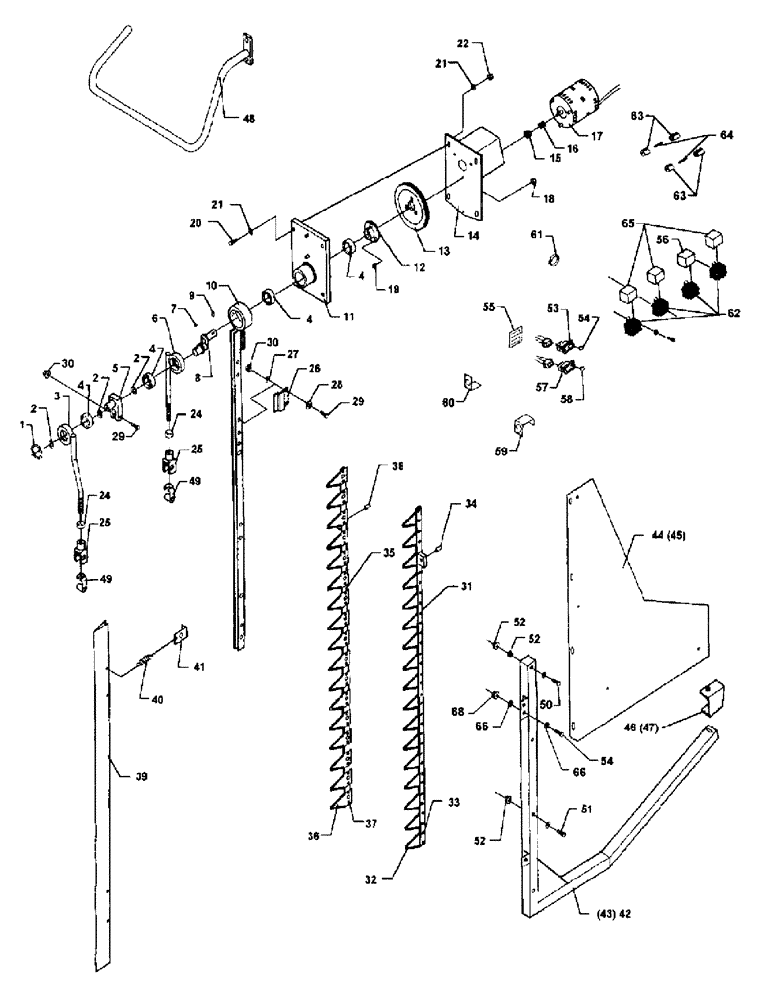

Запчасти Case IH 1030 (1-10) - ELECTRIC VERTICAL KNIFE No Description
№
Артикул
Название
Примечание
Количество
1
42501800
CIRCLIP
1шт.
2
20400441
WASHER
1шт.
3
28284074
ASSEMBLING ROD
SPARE PART
4шт.
4
41616800
BALL BEARING
ball
1шт.
5
28284087
SUPPORT
SPARE PART CRANK
1шт.
6
28284072
ASSEMBLING ROD
SPARE PART
1шт.
7
43100900
SPLIT PIN/SAFETY PIN
SPARE PART KEY
1шт.
8
28284084
SUPPORT
SPARE PART CRANK
1шт.
9
42612000
SPLIT PIN/SAFETY PIN
tightning
1шт.
10
28284079
SUPPORT
KNIFE vertical
1шт.
11
28284093
SUPPORT
SPARE PART bearing housing
1шт.
12
28284069
HUB
SPARE PART
1шт.
13
28284081
PULLEY
WHEEL gear
1шт.
14
28284090
SUPPORT
SPARE PART BRACKET engine
1шт.
15
28284111
WASHER
SPARE PART NUT
1шт.
16
28284080
WASHER
pinion
1шт.
17
45070083
MOTOR, ELECTRIC
1шт.
18
40688000
SCREW
SPARE PART
3шт.
19
15896221
NUT,Hex, M6, 5.20mm High, Cl 10
3шт.
20
40426000
SCREW,Hex, M10 x 50mm, Cl 8.8
hex
4шт.
21
20400471
WASHER
DIA.10.5/20X2
8шт.
22
41010800
NUT
hex
4шт.
25
45905200
CLEVIS
SPARE PART head
2шт.
26
28284094
SHIN
CLIP knife
8шт.
27
20400500
WASHER
SPARE PART
1шт.
28
20400409
WASHER
32шт.
29
40423700
SCREW,Hex, M8 x 40mm, Cl 8.8
hex
16шт.
30
41087500
NUT
lock
16шт.
28284060
BLADE
I POS.31-34
1шт.
31
28284105
BLADE
back, I
1шт.
32
44104100
KNIFE
17шт.
33
41314900
RIVET
countersunk
34шт.
34
43360800
BUSHING
LINING bronze
1шт.
28284061
BLADE
SPARE PART II, POS.35-38
1шт.
35
28284104
BLADE
BACK, II
1шт.
36
44104100
KNIFE
17шт.
37
41314900
RIVET
countersunk
34шт.
38
43360800
BUSHING
LINING bronze
1шт.
39
28284124
LARGE PLATE
SPARE PART protection
1шт.
40
26500317
SPRING
2шт.
41
28284125
SHIN
SPARE PART retainer
2шт.
42
28284100
SUPPORT
BRACKET, rh, (AZ) optional equipment electric vertical knife, right
1шт.
43
28284099
SUPPORT
BRACKET, lh, (AY) optional equipment electric vertical knife, left
1шт.
44
28284140
LARGE PLATE
PLATE, LARGE GUARD, rh, (AZ) optional equipment electric vertical knife, right
2шт.
45
28284139
LARGE PLATE
PLATE, LARGE GUARD, lh, (AY) optional equipment electric vertical knife, left
1шт.
46
28284136
SUPPORT
BRACKET, rh, (AZ) optional equipment electric vertical knife, right
1шт.
47
28284137
SUPPORT
BRACKET, lh, (AY) optional equipment electric vertical knife, left
1шт.
48
28284107
PROTECTOR
SPARE PART
1шт.
50
40422400
BOLT
SPARE PART hex
1шт.
51
40422300
SCREW,Hex, M6 x 55mm, Cl 8.8
hex
1шт.
52
41013400
NUT
combi
1шт.
53
45065000
SWITCH
(AZ) optional equipment electric vertical knife, right
1шт.
54
28781207
SYMBOLS
SYMBOL PLATE, (AZ) optional equipment electric vertical knife, right
1шт.
55
28284371
LARGE PLATE
PLATE, LARGE contact, (AZ) optional equipment electric vertical knife, right
1шт.
56
45060021
RELAY
auziliary, (AY) optional equipment electric vertical knife, left
1шт.
57
45065000
SWITCH
(AY) optional equipment electric vertical knife, left
1шт.
58
28781207
SYMBOLS
SYMBOL PLATE, (AY) optional equipment electric vertical knife, left
1шт.
59
28284370
RETAINER
(AZ) optional equipment electric vertical knife, right
1шт.
60
38780381
ANGLE
retainer, (AZ) optional equipment electric vertical knife, right
2шт.
60
38780381
ANGLE
retainer, (AY) optional equipment electric vertical knife, left
1шт.
61
45728200
CIRCLIP
PIPE
1шт.
62
45087800
SOCKET/RECEPTACLE
(AZ) optional equipment electric vertical knife, right
3шт.
63
45025700
BOX, FUSE
(AZ) optional equipment electric vertical knife, right
1шт.
63
45025700
BOX, FUSE
(AY) optional equipment electric vertical knife, left
1шт.
64
45010086
FUSE
40 AMP, (AZ) optional equipment electric vertical knife, right
1шт.
64
45010086
FUSE
40 AMP, (AY) optional equipment electric vertical knife, left
1шт.
65
45060021
RELAY
auxiliary, (AZ) optional equipment electric vertical knife, right
3шт.
66
20400419
WASHER
2шт.
67
40425800
SCREW,Hex, M10 x 40mm, Cl 8.8
hex
1шт.
68
41087600
LOCK NUT
lock
1шт.
Выбрано товаров: 71
