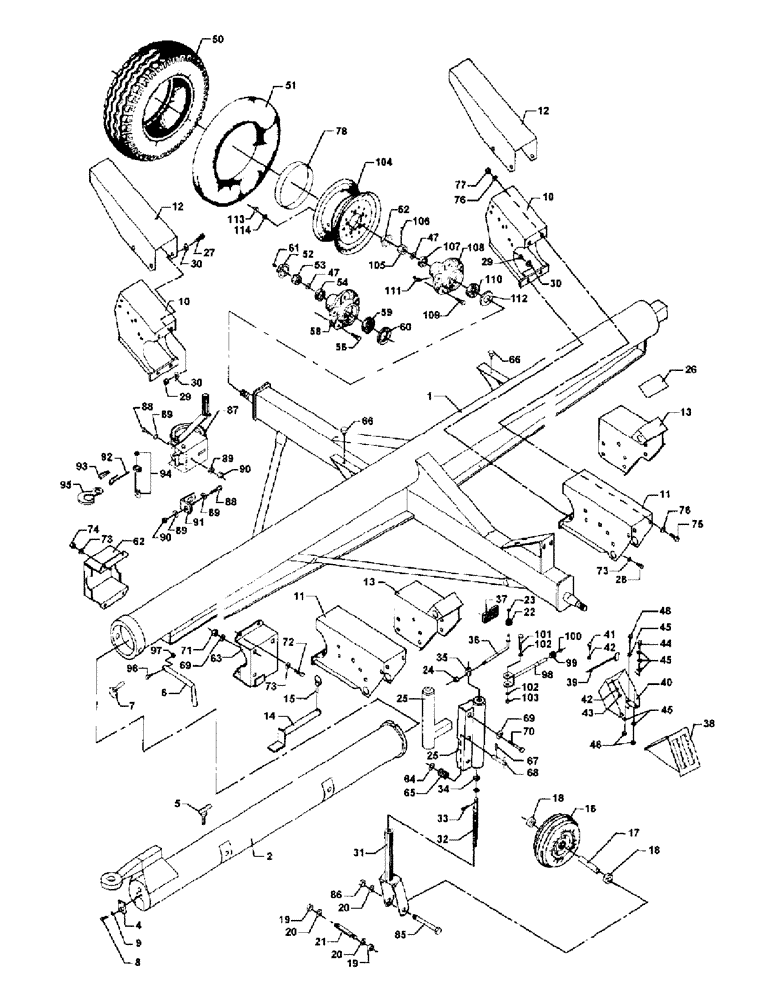

Запчасти Case IH 1030 (1-07) - TABLE TRAILER No Description

1

28283658

HITCH ASSY, TRAILER

TABLE

1шт.

1

28283961

HITCH ASSY, TRAILER

TABLE, (B6) equipment required and approved by the TOV authorities

1шт.

2

28283668

BAR

draw

1шт.

4

28250748

SUPPORT

CABLE

1шт.

5

28283634

SCREW

wing, T.922466

1шт.

6

28283633

LARGE PIN

PIN, LARGE split

1шт.

7

41446200

PIN

split, T.927792

1шт.

8

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

hex

2шт.

9

20400404

WASHER

2шт.

10

28283675

SUPPORT

BRACKET

2шт.

11

28283676

SUPPORT

BRACKET

2шт.

12

28283678

SUPPORT

profile, front

2шт.

13

28283683

SUPPORT

profile, rear

2шт.

14

28283693

LARGE PIN

PIN, LARGE

2шт.

15

41446200

PIN

split

2шт.

16

46721700

WHEEL ASSY.

1шт.

17

28250317

BUSHING

1шт.

18

28250305

SPACER

2шт.

19

100020

NUT,M16 x 2.0, Cl 8

hex, T.926041

2шт.

20

20400459

WASHER

DIA., 17/30X3

2шт.

21

28250315

TRUNNION

JOURNAL, T.926041

1шт.

22

28200609

BALL

bacelit, (E4)

1шт.

23

20400466

WASHER

(E4) 12'-14-16-18 and 20', DIA. 5,3/15X1.2

1шт.

24

41087700

NUT

lock

1шт.

25

28283635

TUBE

outer, T.922466

1шт.

25

28284035

TUBE

SPARE PART outer, F.922467

1шт.

26

49138600

DECAL

yellow reflex

1шт.

27

40410900

SCREW,Hex, M12 x 30mm, Cl 8.8

hex

16шт.

28

40411100

SCREW,Hex, M12 x 40mm, Cl 8.8

hex

4шт.

29

41087700

NUT

lock

20шт.

30

20400423

WASHER

DIA. 13/37X3

32шт.

31

28250340

PIPE

inner

1шт.

32

28250337

SPINDLE

1шт.

33

42612000

SPLIT PIN/SAFETY PIN

tightening

1шт.

34

41597100

BALL BEARING

1шт.

35

28250356

HUB

1шт.

36

28250327

LEVER

(E4) 12'-14-16-18 and 20'

1шт.

37

45084600

REFLECTOR

6шт.

38

45907200

WEDGE

(LL) equipment required and approved by the TOV authorities

2шт.

39

28260477

HOLDER

spring, (LL) equipment required and approved by the TOV authorities

2шт.

40

28283963

SUPPORT

retainer, (LL) equipment required and approved by the TOV authorities

2шт.

41

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

hex, (LL) equipment required and approved by the TOV authorities

2шт.

42

20400404

WASHER

(LL) equipment required and approved by the TOV authorities

4шт.

43

41087400

LOCK NUT

lock, (LL) equipment required and approved by the TOV authorities

2шт.

44

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

hex, (LL) equipment required and approved by the TOV authorities

4шт.

45

20400413

WASHER

(LL) equipment required and approved by the TOV authorities, DIA. 8.4/16X1.6

28шт.

46

41087500

NUT

lock, (LL) equipment required and approved by the TOV authorities

4шт.

47

20400459

WASHER

DIA. 17/30X3

2шт.

48

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

(LL) Equipment required and approved by the TOV authorities

4шт.

28251629

WHEEL ASSY.

(DK) POS. 49-51, 78 , T.935963

2шт.

49

28251111

RIM

WHEEL T.935963

2шт.

50

46734700

TYRE/TIRE

2шт.

51

46708800

AIR TUBE

2шт.

52

46723900

PLUG

CAP screw

2шт.

53

41087900

NUT

lock

2шт.

54

41618200

BEARING, BALL

SPARE PART

2шт.

56

40438200

SCREW,M12 x 1.5 x 36mm

HUB

10шт.

57

41021500

NUT

WHEEL

10шт.

58

46724000

HUB

housing

2шт.

59

41618400

BEARING, BALL

2шт.

60

41582400

PACKING RING

2шт.

61

43002500

NIPPLE, LUBE

NIPPLE

2шт.

62

28284043

SUPPORT

SPARE PART BRACKET, F.922467

1шт.

63

28284048

SUPPORT

SPARE PART BRACKET, F.922467

1шт.

64

28750035

SPACER

RING, F.922467

1шт.

65

28700136

SPRING

F.922467

1шт.

66

43385200

SCREW

SPARE PART FINGER, F.922467

2шт.

67

41410800

KEY

PIN split, F.922467

1шт.

68

28250355

SPLIT PIN/SAFETY PIN

lock, F.922467

1шт.

69

20400523

SPACER

WASHER, F.922467, DIA.21/37X3

2шт.

70

40418800

SCREW

SPARE PART hex, F.922467

1шт.

71

41088100

NUT

lock, F.922467

1шт.

72

40411100

SCREW,Hex, M12 x 40mm, Cl 8.8

hex, F.922467

1шт.

73

20400426

WASHER

F.922467, DIA.13/24X2.5

14шт.

74

41087700

NUT

lock

2шт.

75

40435100

SCREW

hex

4шт.

76

28181284

WASHER

8шт.

77

41087900

NUT

lock

4шт.

78

46737500

STRIP

BAND rim

2шт.

85

28281711

SCREW

+F.926042

1шт.

86

41087900

NUT

lock, +F.926042

1шт.

87

45906700

WINCH

CAPSTAN trailer, (3) optional equipment

1шт.

88

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

hex, (3) optional equipment

3шт.

89

20400506

SPACER

(3) optional equipment, DIA. 8.5/20X2,5

6шт.

90

41087500

NUT

lock, (3) optional equipment

3шт.

91

28284042

ANGLE BAR

RING draw, (3) optional equipment

1шт.

28284143

HOOK

PIPE, (3) optional equipment, POS.92-95

1шт.

92

43404300

CABLE

(3) optional equipment, 5M

1шт.

93

43409000

GUIDE

THIMBLE, (3) optional equipment

1шт.

94

43405900

CLIP

SPARE PART LOCK wire, (3) optional equipment

2шт.

95

43410400

HOOK

draw, (3) optional equipment

1шт.

96

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

hex, F.927793

1шт.

97

41087500

NUT

lock, F.927793

1шт.

28281645

LEVER

CPL. (F4) 22', POS. 98-103

1шт.

98

28281644

LEVER

(F4) 22'

1шт.

99

28200609

BALL

baclit, (F4) 22'

1шт.

100

20400466

WASHER

(F4) 22', DIA.5,3/15X1,2

1шт.

101

40428800

SCREW,Hex, M12 x 70mm, Cl 8.8

hex, (F4) 22'

1шт.

102

20400537

SPACER

WASHER, (F4) 22'

2шт.

103

41087700

NUT

lock

1шт.

28284451

WHEEL ASSY.

CPL. F.925964

1шт.

104

28284450

RIM

WHEEL bolted, F.925964

1шт.

105

41048700

NUT

castle, F.925964

1шт.

106

41408800

LARGE PIN

PIN, LARGE split, F.925964

1шт.

107

41661100

BEARING, ROLLER

F.925964

1шт.

108

46729200

HUB

housing, F.925964

1шт.

109

46728300

SCREW

hub, F.925964

1шт.

110

41661300

ROLLER BEARING

roller, F.925964

1шт.

111

43001500

LUBE NIPPLE

F.925964

1шт.

112

46727400

SHAFT SEAL

F.925964

1шт.

113

41013000

NUT

hex, F.925964

1шт.

114

41111200

WASHER, LOCK

CIRCLIP, F.925964

1шт.
