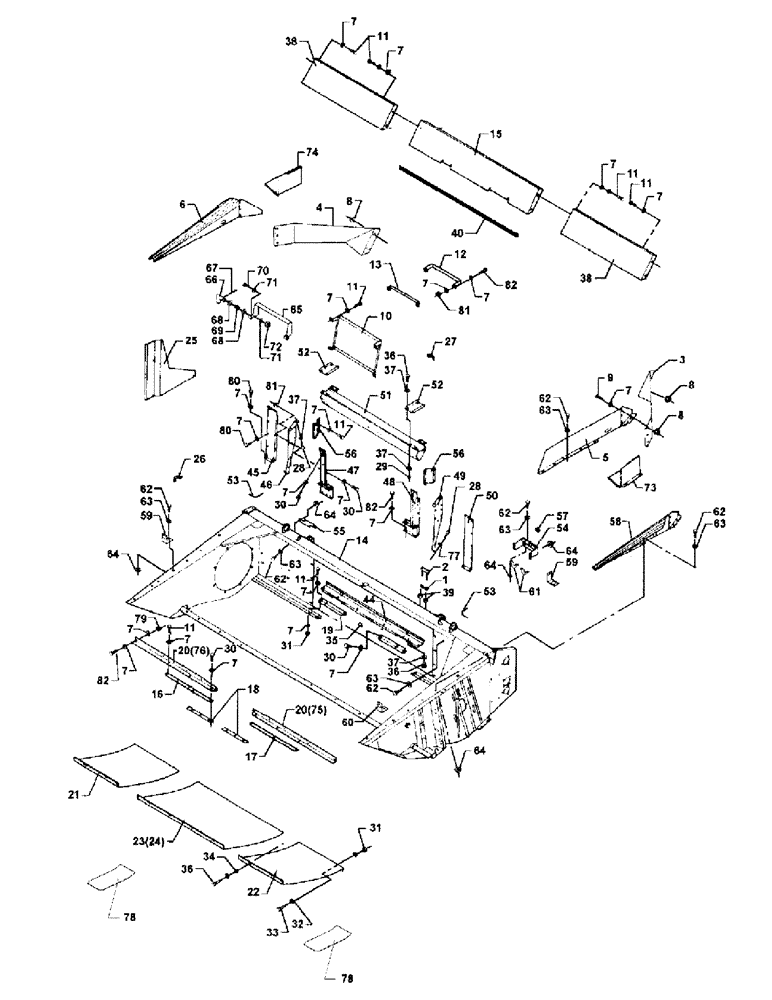

Запчасти Case IH 1030 (1-06) - TABLE BODY AND GUARDS No Description

1

28280587

STOP

dog

2шт.

2

28280570

SUPPORT

FITTINGS lock

2шт.

3

38283233

PROTECTION PLATE

side, high

1шт.

4

38283232

PROTECTION PLATE

side, high

1шт.

5

38280689

PANEL, SIDE

TABLE, T.925030

1шт.

6

38283516

PANEL, SIDE

TABLE

1шт.

7

20400506

SPACER

DIA. 8.5/20X2.5

1шт.

8

41013500

NUT

combi

1шт.

9

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

hex

1шт.

10

38251573

HOLDER

(V7) 14'-16'

1шт.

10

38281024

RETAINER

LIFTER crop (G3) 18'-20' and 22'

1шт.

11

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

12

38283622

HOLDER

LIFTER crop (S8) 12'

1шт.

13

38283623

HOLDER

LIFTER crop (S8) 12'

1шт.

14

38283687

CUTTERBAR

TABLE, (S8) 12'

1шт.

14

38283688

CUTTERBAR

TABLE, (T7) 14'

1шт.

14

38283689

CUTTERBAR

TABLE, (S4) 16'

1шт.

14

38283690

CUTTERBAR

TABLE. (T8) 18'

1шт.

14

38283691

CUTTER BAR

TABLE, (F3) 20'

1шт.

14

38283858

FRAME

TABLE, (F4) 22'

1шт.

15

38283236

PROTECTION PLATE

high, rear

1шт.

16

28283141

DEFLECTOR

PLATE, (T8) 18'

1шт.

16

28283143

PLATE

PLATE, (F3) 20'

1шт.

16

28283145

DEFLECTOR

PLATE, (S8) 12'

1шт.

16

28283410

DEFLECTOR

PLATE, (T7) 14'

1шт.

16

28283411

DEFLECTOR

PLATE, (S4) 16'

1шт.

17

28283140

DEFLECTOR

PLATE, (T8) 18'

1шт.

17

28283142

DEFLECTOR

PLATE, (F3) 20'

1шт.

17

28283144

DEFLECTOR

PLATE, (S8) 12'

1шт.

17

28283412

DEFLECTOR

PLATE, (T7) 14'

1шт.

17

28283413

DEFLECTOR

PLATE, (S4) 16'

1шт.

18

28283138

DEFLECTOR

2шт.

19

28283408

DEFLECTOR

+F.928818

2шт.

20

28283135

DEFLECTOR

angle, (S8) 12'

2шт.

20

28283136

DEFLECTOR

angle, (T8) 18'

2шт.

20

28283137

DEFLECTOR

angle, (F3) 20'

2шт.

20

28283339

DEFLECTOR

angle, (T7) 14'

2шт.

20

28283340

DEFLECTOR

angle, (S4) 16'

2шт.

21

28283253

WEAR PLATE

right

1шт.

22

28283254

WEAR PLATE

left

1шт.

23

28283256

WEAR PLATE

(S8) 12'

2шт.

23

28283256

WEAR PLATE

(T7) 14'

1шт.

23

28283256

WEAR PLATE

(S4) 16'

3шт.

23

28283256

WEAR PLATE

(T8) 18'

2шт.

23

28283256

WEAR PLATE

(F3) 20'

4шт.

23

28283256

WEAR PLATE

(F4) 22'

3шт.

24

28283255

WEAR PLATE

(T7) 14'

2шт.

24

28283255

WEAR PLATE

(T8) 18'

2шт.

24

28283255

WEAR PLATE

(F4) 22'

2шт.

25

28281665

HOOD

GUARD side

1шт.

26

28281042

HOLDER

1шт.

27

28281043

SUPPORT

BRACKET

1шт.

28

40407700

SCREW,Hex, M10 x 15mm, Cl 8.8

hex, +F.929460

8шт.

29

41087600

LOCK NUT

lock, +F.929460

12шт.

30

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

hex

6шт.

31

41087500

NUT

lock

10шт.

32

20400506

SPACER

DIA. 8.5/20X2.5

20шт.

33

40405300

CAPSCREW,Hex, M8 x 40mm, Cl 8.8

hex

10шт.

34

20400419

WASHER

14шт.

35

45745300

PLUG

+F.929460

1шт.

36

40407900

SCREW,Hex, M10 x 35mm, Cl 8.8

hex, +F.929460

12шт.

37

20400415

WASHER

16шт.

38

38283237

PROTECTION PLATE

rear, (T8) 18'

2шт.

38

38283238

PROTECTION PLATE

rear, (F3) 20'

2шт.

38

38283427

PROTECTION PLATE

rear, (S4) 16'

2шт.

38

38283428

PROTECTION PLATE

rear, (T7) 14'

2шт.

38

38283429

PROTECTION PLATE

rear, (S8) 12'

2шт.

38

38283862

PROTECTION PLATE

rear, (F4) 22'

2шт.

39

41087900

NUT

lock

4шт.

40

28283557

GASKET

LIST tension

1шт.

44

28283121

PROFILE

1шт.

45

28283084

LARGE PLATE

PLATE, LARGE rear

1шт.

46

28283113

LARGE PLATE

PLATE, LARGE side right

1шт.

47

28283565

COVER

right

1шт.

48

28283564

COVER

plate left

1шт.

49

28283114

LARGE PLATE

PLATE, LARGE side left

1шт.

50

28283083

LARGE PLATE

PLATE, LARGE rear left

1шт.

51

28283126

SUPPORT

profile

1шт.

52

38283195

LARGE PLATE

PLATE, LARGE WASHER

2шт.

53

44735900

PROTECTION STRIP

LIST tension, 0.2

1шт.

54

28283567

SUPPORT

BRACKET

1шт.

55

28283570

LARGE PLATE

PLATE, LARGE cover

1шт.

56

28283120

PLATE

guide

2шт.

57

44732400

BUSHING

GROMMET rubber

3шт.

58

38283938

SIDE PLATE

TABLE round, l (DF) optional equipment T.925030 standard equipment F.925031

1шт.

59

28780381

RETAINER

(AZ) optional equipm electric vertical knife, right

2шт.

60

28780381

RETAINER

(AY) optional equipm electric vertical knife, left

1шт.

61

45147500

RETAINER

2шт.

62

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

hex

1шт.

63

20400404

WASHER

1шт.

64

41013400

NUT

combi

1шт.

65

38281627

PROTECTOR

(E9) 18'-20', F.926971

1шт.

65

38281628

PROTECTOR

(V7) 14'-16', F.926971

1шт.

65

38281629

PROTECTOR

(S8) 12', F.926971

1шт.

66

28281625

LEVER

F.926971

2шт.

67

41404400

KEY

PIN split, F.926971

2шт.

68

20400404

WASHER

F.926971

4шт.

69

45667300

SPRING

pressure, F.926971

2шт.

70

40405100

SCREW,Hex, M8 x 30mm, Cl 8.8

hex, F.926971

2шт.

71

20400506

SPACER

F.926971, DIA. 8.5/20X2.5

4шт.

72

41087500

NUT

lock

1шт.

73

28281483

EXTENSION

PIECE left, (LJ) optional equipment, torpedo divider long

1шт.

74

28281482

EXTENSION

PIECE r., (LJ) optional equipment, torpedo divider long

1шт.

75

28283520

DEFLECTOR

angle, lh, (F4) 22'

1шт.

76

28283521

DEFLECTOR

angle, rh, (F4) 22'

1шт.

77

20400416

WASHER

+F.929460, DIA. 10.5/30X2.5

8шт.

78

28284101

WEAR PLATE

piece, +F.929460

2шт.

79

43362

NUT,M8 x 1.25, Cl 10

+F.931869

1шт.

80

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

+F.931664

1шт.

81

41087500

NUT

lock, +F.931664

1шт.

82

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

hex, +F.931869

1шт.
