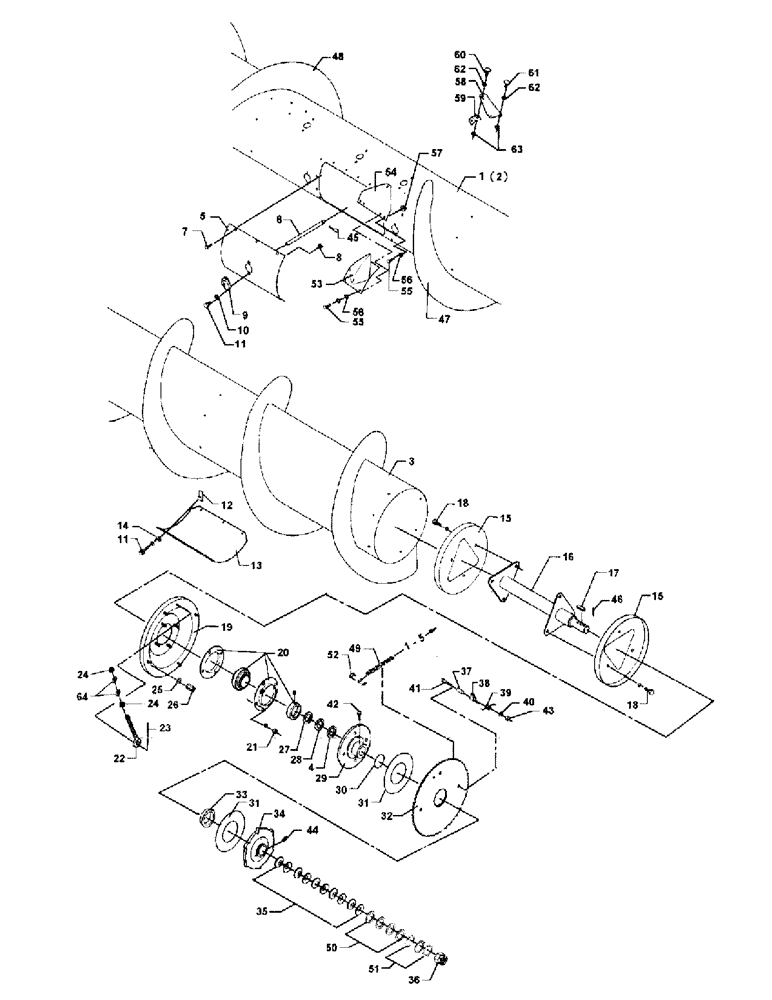

Запчасти Case IH 1030 (1-04) - FEEDER DRUM 2 No Description

1

38283788

AUGER

FEEDER, (S8) 12'

1шт.

1

38283789

AUGER

FEEDER, (T7) 14'

1шт.

1

38283790

AUGER

FEEDER, (S4) 16

1шт.

1

38283134

AUGER

FEEDER, (T8) 18'

1шт.

1

38283125

AUGER

FEEDER, (F3) 20'

1шт.

1

38283870

AUGER

DRUM feeder, 22' (F4) 22'

1шт.

2

28283012

TUBE

SHELL middle

1шт.

3

28283487

TUBE

SHELL lh, 12' (S8) 12'

1шт.

3

28283793

TUBE

SHELL lh, 14' (T7) 14'

1шт.

3

28283794

TUBE

SHELL lh, 16' (S4) 16

1шт.

3

28283033

TUBE

SHELL lh, 18' (T8) 18'

1шт.

3

28283031

TUBE

SHELL left, 20' (F3) 20'

1шт.

3

28283875

TUBE

SHELL left, 22' (F4) 22'

1шт.

4

28280957

SPACER, RING

(5) optional, 2 MM

1шт.

5

38283078

COVER

1шт.

6

28283815

FINGER

SPIKE carrier

15шт.

7

40402400

SCREW,Hex, M6 x 16mm, Cl 8.8

hex

1шт.

8

41087400

LOCK NUT

lock

1шт.

9

28283060

BUSHING

15шт.

10

20400404

WASHER

1шт.

11

40402600

SCREW,Hex, M6 x 20mm, Cl 8.8

hex

1шт.

12

43428200

NUT

6шт.

13

38283070

COVER

1шт.

14

20400470

DISC

DIA. 6.4/18X1.6

6шт.

15

28280014

PLATE

hub

2шт.

16

28283007

DRIVE SHAFT

1шт.

17

43106800

KEY

1шт.

18

40407600

SCREW,Hex, M10 x 20mm, Cl 8.8

hex

6шт.

19

38283053

SHEET

PLATE end, lh

1шт.

20

41716500

BEARING

FLANGE

1шт.

21

337475

NUT,M12, Cl 10

4шт.

22

28281387

EYEBOLT

BOLT, EYE tension

1шт.

23

41408900

LARGE PIN

PIN, LARGE split

1шт.

24

41010800

NUT

hex, +F.929460

2шт.

25

20400415

WASHER

4шт.

26

28280729

NUT

hex

4шт.

27

28280956

SPACER, RING

(5) optional, 1 MM

1шт.

28

28281029

SPACER, RING

(5) optional, 4 MM

1шт.

29

28283004

WASHER

1шт.

30

D45481600

O-RING

1шт.

31

45904300

DISC

CLUTCH facing

2шт.

32

28283152

PINION

SPROCKET

1шт.

33

28283000

BUSHING

1шт.

34

28283003

FLANGE

WASHER

1шт.

35

41112400

WASHER

SPRING

10шт.

36

41054100

NUT

castle

1шт.

37

28284131

PIPE spacer

1шт.

38

28281432

BLOCK DRIVER

carrier

1шт.

39

28283006

SPRING

1шт.

40

20400507

WASHER

1шт.

41

40426100

SCREW,Hex, M10 x 55mm, Cl 8.8

hex

1шт.

42

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

hex

1шт.

43

41087600

LOCK NUT

lock

1шт.

44

43001500

LUBE NIPPLE

1шт.

45

28283853

SPLIT PIN

hair

15шт.

46

41408800

LARGE PIN

PIN, LARGE split

1шт.

47

28281448

SPIRAL

(S8) 12'

1шт.

47

28280988

SPIRAL

(T7) 14'

1шт.

47

28280052

SPIRAL

(S4) 16

1шт.

47

28280051

SPIRAL

(T8) 18'

1шт.

47

28280005

SPIRAL

(F3) 20'

1шт.

47

28280067

SPIRAL

(F4) 22'

1шт.

48

28281449

SPIRAL

(S8) 12'

1шт.

48

28280989

SPIRAL

(T7) 14'

1шт.

48

28280054

SPIRAL

(S4) 16

1шт.

48

28280053

SPIRAL

(T8) 18'

1шт.

48

28280006

SPIRAL

(F3) 20'

1шт.

48

28280068

BRACKET

SPARE PART spiral, (F4) 22'

1шт.

49

42332900

CHAIN (AG)

98

1шт.

50

20400520

SPACER

4шт.

51

20400523

SPACER

DIA. 21/37X3

3шт.

52

42365100

CHAIN LINK

joint

1шт.

53

38283294

FINGER

fixed

4шт.

54

28281694

LARGE PLATE

PLATE, LARGE threaded

4шт.

55

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

20шт.

56

20400506

SPACER

DIA. 8.2/20X2.5

20шт.

57

41087500

NUT

lock

12шт.

58

28281194

EXTENSION

AUGER, (3) optional equipment

1шт.

59

28281195

ANGLE

iron, (3) optional equipment

1шт.

60

40684800

SCREW,M8 x 25mm, Cl 10.9

(3) optional equipment

2шт.

61

40685000

SCREW,M8 x 16mm, Cl 8.8

(3) optional equipment

2шт.

62

20400506

SPACER

(3) optional equipment, DIA. 8.5/20X2.5

4шт.

63

41087500

NUT

lock, (3) optional equipment

4шт.

64

20400416

WASHER

+F.929460, DIA. 10.5/30X2.5

2шт.
