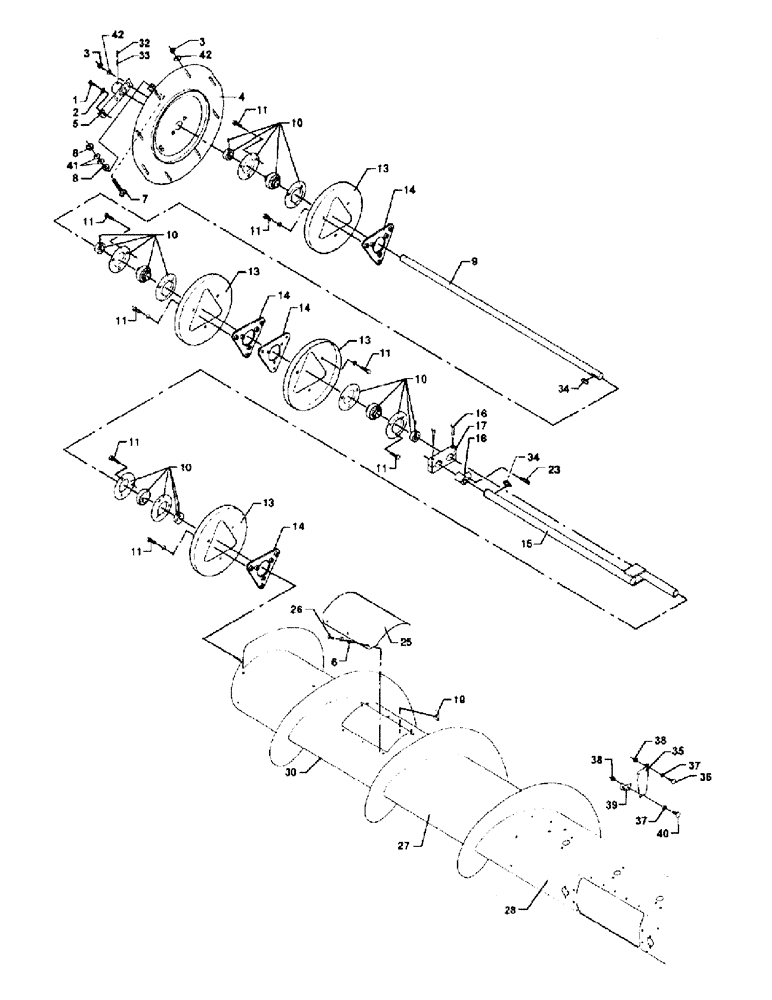

Запчасти Case IH 1030 (1-03) - FEEDER DRUM 1 No Description

1

40404700

SCREW,Hex, M8 x 16mm, Cl 8.8

hex

1шт.

2

20400506

SPACER

DIA. 8.5/20X2.5

1шт.

3

41087500

NUT

lock, +F.931503

10шт.

4

38280040

PLATE

end, r.

1шт.

5

28283029

SUPPORT

FITTINGS adjusting

1шт.

6

20400470

DISC

DIA. 6.4/18X1.6

6шт.

7

28211023

BOLT

ADJ.

1шт.

8

41087600

LOCK NUT

lock, +F.931503

2шт.

9

28283035

SHAFT

12' (S8) 12'

1шт.

9

28283767

SHAFT

14' (T7) 14'

1шт.

9

28283768

SHAFT

16' (S4) 16'

1шт.

9

28283036

SHAFT

18' (T8) 18'

1шт.

9

28283037

SHAFT

20' (F3) 20'

1шт.

9

28283871

SHAFT

22' (F4) 22'

1шт.

10

41707800

FLANGED BEARING

flange, (KQ) 16'-22'

4шт.

10

41707800

FLANGED BEARING

flange, (S3) 12'-14'

3шт.

11

40407900

SCREW,Hex, M10 x 35mm, Cl 8.8

1шт.

13

28280014

PLATE

hub, (KQ) 16'-22'

4шт.

13

28280014

PLATE

hub, (S3) 12'-14'

3шт.

14

28283847

LARGE PLATE

PLATE, LARGE bearing, (KQ) 16'-22'

4шт.

14

28283847

LARGE PLATE

PLATE, LARGE bearing, (S3) 12'-14'

3шт.

15

28283016

SHAFT

CRANK

1шт.

16

40426100

SCREW,Hex, M10 x 55mm, Cl 8.8

hex

2шт.

17

28283039

SHIN

ARM crank

1шт.

18

28251831

GUIDE

bearing

15шт.

19

43428200

NUT

6шт.

23

28283853

SPLIT PIN

hair

15шт.

25

38283070

COVER

1шт.

26

40402600

SCREW,Hex, M6 x 20mm, Cl 8.8

hex

6шт.

27

38283788

AUGER

FEEDER, (S8) 12'

1шт.

27

38283789

AUGER

FEEDER, (T7) 14'

1шт.

27

38283790

AUGER

FEEDER, (S4) 16'

1шт.

27

38283134

AUGER

FEEDER, (T8) 18'

1шт.

27

38283125

AUGER

FEEDER, (F3) 20'

1шт.

27

38283870

AUGER

DRUM feeder, 22' (F4) 22'

1шт.

28

28283012

TUBE

SHELL middle

1шт.

30

28283488

TUBE

SHELL rh, 12' (S8) 12'

1шт.

30

28283792

TUBE

SHELL rh, 14' (T7) 14'

1шт.

30

28283795

TUBE

SHELL rh, 16' (S4) 16'

1шт.

30

28283032

TUBE

SHELL rh, 18' (T8) 18'

1шт.

30

28283034

TUBE

SHELL right, 20' (F3) 20'

1шт.

30

28283876

TUBE

SHELL right, 22' (F4) 22'

1шт.

32

42616400

PIN

tightening

1шт.

33

42625300

SLOTTED PIN

tightening

1шт.

34

43104700

KEY

2шт.

35

28281193

EXTENSION

AUGER, (3) optional equipment

1шт.

36

40684800

SCREW,M8 x 25mm, Cl 10.9

(3) optional equipment

2шт.

37

20400506

SPACER

(3) optional equipment, DIA. 8.5/20X2.5

4шт.

38

41087500

NUT

lock, (3) optional equipment

4шт.

39

28281195

ANGLE

iron, (3) optional equipment

1шт.

40

40685000

SCREW,M8 x 16mm, Cl 8.8

(3) optional equipment

2шт.

41

20400471

WASHER

+F.929460, DIA. 10.5/20X2

1шт.

42

20400414

WASHER

+F.931503, DIA. 8.5/24.5X3

1шт.
