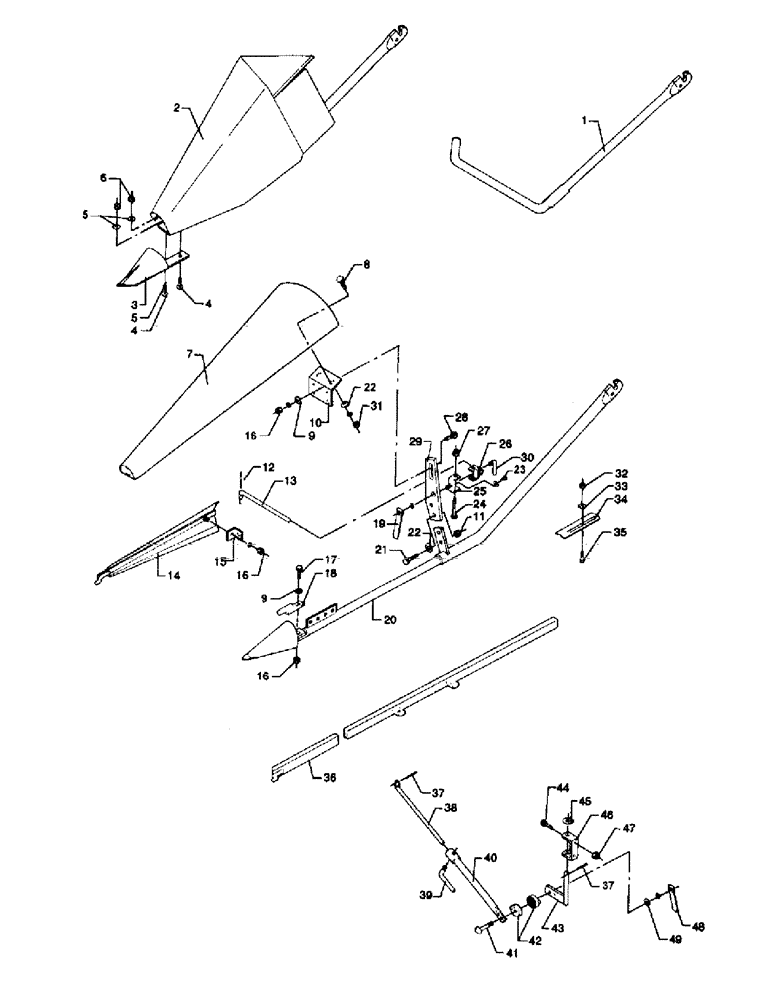

Запчасти Case IH 1030 (1-01) - STRAW DIVIDER No Description

1

38251600

DIVIDER ASSY.

BOW

1шт.

28251639

DIVIDER ASSY.

TORPEDO, DIV.SH.R+L POS.2-6

1шт.

2

38251602

DIVIDER

straw, l

1шт.

2

38251603

DIVIDER

straw, r

1шт.

3

38260226

POINT

STRAW divider

2шт.

4

40066800

SCREW,M10 x 30mm

4шт.

5

20400471

WASHER

DIA. 10.5/20X2

4шт.

6

41087600

LOCK NUT

lock

4шт.

28251605

DIVIDER ASSY.

TORPEDO, DIV. LONG R POS.7-31

1шт.

7

28211126

DIVIDER

straw

1шт.

8

40063700

SCREW,M8 x 25mm

2шт.

9

20400471

WASHER

DIA. 10.5/20X2

3шт.

10

28230447

PLATE

adjusting, I

1шт.

11

41013500

NUT

combi

2шт.

12

41408700

LARGE PIN

PIN, LARGE split

1шт.

13

28230462

ROD

adjusting

1шт.

14

28230457

DIVIDER

wing

1шт.

15

27200313

ANGLE

1шт.

16

41010800

NUT

hexagon

3шт.

17

40408000

SCREW,Hex, M10 x 40mm, Cl 8.8

hexagon

1шт.

18

27200640

STOP

1шт.

19

27300323

NUT

lock

1шт.

20

28251601

SUPPORT TUBE

1шт.

21

40405000

SCREW,Hex, M8 x 25mm, Cl 8.8

hexagon

2шт.

22

20400506

SPACER

DIA. 8.5/20X2.5

4шт.

28230467

SUPPORT ASSY.

ADJ.MOUNTING, COMPL POS.23-27

1шт.

23

40211200

SET SCREW

SPARE PART

1шт.

24

40424400

SCREW,Hex, M8 x 75mm, Cl 8.8

hexagon

1шт.

25

28230468

SUPPORT

mountings, 1

1шт.

26

28230471

SUPPORT

mountings, 2

1шт.

27

41087500

NUT

lock

1шт.

28

40066700

SCREW,M10 x 25mm

2шт.

29

28250549

SUPPORT

PIECE turning

1шт.

30

27200300

PIN

angle

1шт.

31

43362

NUT,M8 x 1.25, Cl 10

2шт.

32

41087700

NUT

lock

2шт.

33

20400423

WASHER

DIA. 13/37X3

2шт.

34

38251588

PLATE

adjusting

2шт.

35

40070200

SCREW,M12 x 30mm

2шт.

28230487

DIVIDER ASSY.

STRAW DIV.WING OUT. POS.36-49

1шт.

36

28230480

SUPPORT

STRAW DIV.WING OUT.

1шт.

37

41410600

LARGE PIN

PIN, LARGE split

2шт.

38

28230482

ROD

ADJ. SUPPORT

1шт.

39

27200364

LEVER

fastening

1шт.

40

28230486

TUBE

telescopic

1шт.

41

40021300

SCREW

1/2 WG

1шт.

41

40070900

SCREW,M12

M 12

1шт.

42

28230488

CLUTCH

star

2шт.

43

28230473

SUPPORT

1шт.

44

40407700

SCREW,Hex, M10 x 15mm, Cl 8.8

hexagon

2шт.

45

20400518

SPACER

WASHER

1шт.

46

28230472

SUPPORT

U-FITTINGS

1шт.

47

41087600

LOCK NUT

lock

2шт.

48

27300323

NUT

lock, 1/2 WG

1шт.

48

28284403

LEVER ASSY & KNOB

NUT lock, M12

1шт.

49

20400426

WASHER

DIA. 13/24X2.5

1шт.
