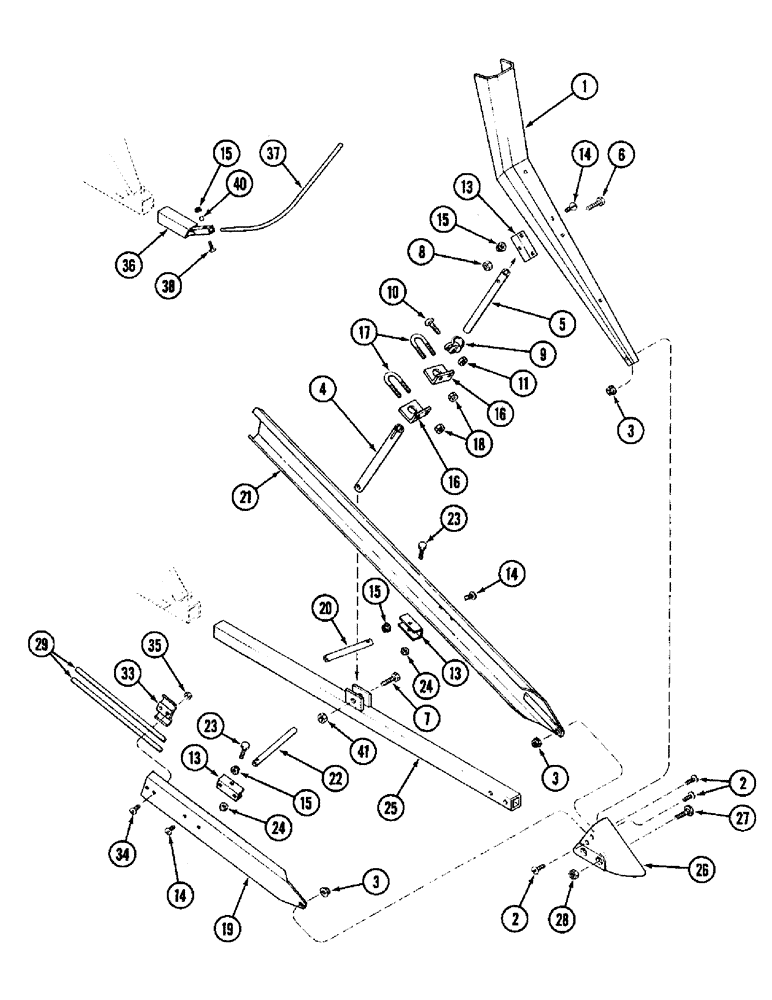

Запчасти Case IH 1020 (9D-20) - WING DIVIDERS AND ROD DIVIDERS (09) - CHASSIS/ATTACHMENTS

1

1316197C2

SUPPORT

- wing, upper

2шт.

2

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

4шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

NUT - hex serrated flange, 5/16 inch NC

4шт.

4

1307691C1

TUBE,390 mm Length

- wing, lower

2шт.

5

1307692C2

TUBE,390 mm Length

- wing, upper

2шт.

6

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

2шт.

7

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

8

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

9

1307694C1

CLAMP

- tube retaining

2шт.

10

433-832

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2", Gr 5

BOLT - carriage, 1/2 NC x 2 inch

2шт.

11

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

13

1307688C2

SUPPORT

- tube

6шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

16шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

18шт.

16

1313163C1

BRACKET

- support

4шт.

17

1313164C1

U-BOLT

- bracket

4шт.

18

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

8шт.

19

1316772C2

SUPPORT

- wing, inner

2шт.

20

1316826C1

PIPE

- wing support, inner

2шт.

21

1316773C2

SUPPORT

- wing, outer

2шт.

22

1307693C1

PIPE

- wing support, outer

2шт.

23

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

24

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

4шт.

25

1316201C1

SUPPORT

- wing

2шт.

26

1316649C1

DIVIDER POINT

POINT - wing

2шт.

27

280744

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 2 1/2", Gr 5

BOLT - carriage, 3/8 NC x 2-1/2 inch

4шт.

28

88902

NUT,3/8"-16

NUT - hex, self-locking, 3/8 inch NC

4шт.

29

1307689C1

TUBE,15.24 mm ID, 19.05 mm OD

- wing, inner

4шт.

33

1307684C1

CLAMP

- tine

2шт.

34

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

4шт.

35

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

4шт.

36

140649A1

SUPPORT

- divider

2шт.

37

131686A1

ROD

- divider

2шт.

38

164191C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1 1/2"

- slotted truss head, 5/16 NC x 1-1/2 inch

2шт.

40

700121908

SPACER

- pipe, 1/4 x 3/8 inch

2шт.

41

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.
