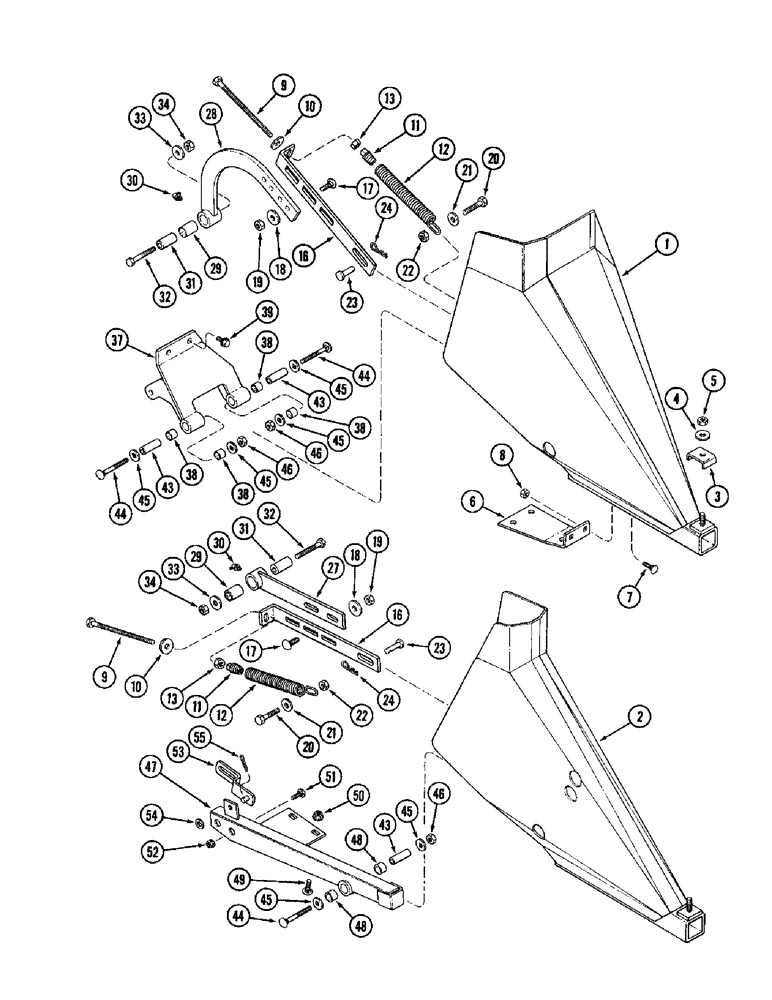

Запчасти Case IH 1020 (9D-18) - DIVIDERS (09) - CHASSIS/ATTACHMENTS

1

1316060C4

DIVIDER

- header, left-hand

1шт.

2

1316061C1

DIVIDER

- header, right-hand

1шт.

3

1316709C1

CLAMP

- wing

2шт.

4

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

2шт.

5

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

6

1316847C2

SUPPORT

BRACKET - guard support

1шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

8

231-4116

NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

9

480556C1

BOLT,Spcl, 1/2" - 13 x 8"

- hex, special, 1/2 NC x 8 inch

2шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

11

1316731C1

SPECIAL NUT

PLUG - spring

2шт.

12

1316732C1

SPRING

- divider pivot

2шт.

13

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

16

1316585C1

SUPPORT

- divider pivot

2шт.

17

433-828

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

BOLT - carriage, 1/2 NC x 1-3/4 inch

4шт.

18

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

19

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

4шт.

20

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

21

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

2шт.

22

425-1010

NUT,5/8"-11, G5

2шт.

23

439-51224

HEADED PIN,19.05mm OD x 38.1mm L

PIN - headed, 3/4 x 1-1/2 inch

2шт.

24

1978738C1

HAIR PIN COTTER

3/16"

2шт.

27

1316787C92

LEVER

ASSEMBLY - divider pivot, right-hand, Includes: Ref. 29 & 30

1шт.

28

136881A1

LINK

LEVER ASSEMBLY - divider pivot, left-hand, Includes: Ref. 29 & 30

1шт.

29

559317R1

BUSHING,25.55mm ID x 28.6mm OD x 38.1mm L

- pivot

1шт.

30

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

31

1326465C2

BUSHING,13.5mm ID x 25.4mm OD x 44.45mm L

SPACER - link pivot

2шт.

32

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- hex, 1/2 NC x 3 inch

2шт.

33

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

2шт.

34

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

3шт.

37

140387A1

SUPPORT

ASSEMBLY - divider, left-hand, Includes: Ref. 38

1шт.

38

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- 3/4 inch (19 mm) diameter, pivot

4шт.

39

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

4шт.

43

1316782C1

BUSHING,12.95mm ID x 18.9mm OD x 50.5mm L

- divider pivot

3шт.

44

433-852

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3 1/4", Gr 5

BOLT - carriage, 1/2 NC x 3-1/4 inch

3шт.

45

498-81006

SQ HOLE WASHER,13.49mm ID x 31.75mm OD x 3.05mm Thk

- flat, square hole, 17/32 x 1-1/4 x 1/8 inch

6шт.

46

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

3шт.

47

1316322C92

SUPPORT

ASSEMBLY - divider, right-hand, Includes: Ref. 48

1шт.

48

1280291C1

BUSHING,19.13mm ID x 22.3mm OD x 19.05mm L

- 3/4 inch (19 mm) diameter, pivot

2шт.

49

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

50

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

51

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

2шт.

52

231-5146

FLANGE NUT,3/8"-16

2шт.

53

1316674C2

BRACKET

- downstop, right-hand

1шт.

54

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

2шт.

55

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.
