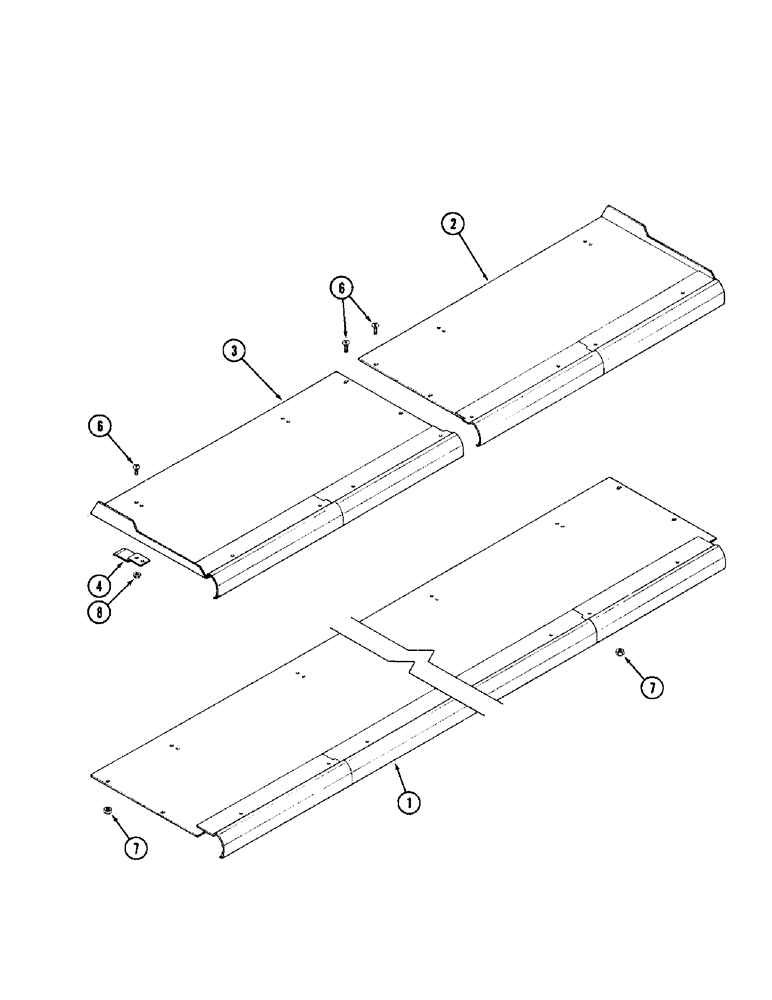

Запчасти Case IH 1020 (9D-16) - BOTTOM SHIELDS (09) - CHASSIS/ATTACHMENTS

1

1313156C2

SHIELD

- center, bottom

1шт.

2

1313132C2

SHIELD

- left-hand, bottom, (15.0 foot)

1шт.

2

1326814C2

SHIELD

- left-hand, bottom, (16.5 foot)

1шт.

2

1313133C2

SHIELD

- left-hand, bottom, (17.5 foot)

1шт.

2

1313134C2

SHIELD

- left-hand, bottom, (20.0 foot)

1шт.

2

1313135C2

SHIELD

- left-hand, bottom, (22.5 foot)

1шт.

2

1313136C2

SHIELD

- left-hand, bottom, (25.0 foot)

1шт.

2

1313137C2

SHIELD

- left-hand, bottom, (30.0 foot)

1шт.

3

1313138C2

SHIELD

- right-hand, bottom, (15.0 foot)

1шт.

3

1326815C2

SHIELD

- right-hand, bottom, (16.5 foot)

1шт.

3

1313139C2

SHIELD

- right-hand, bottom, (17.5 foot)

1шт.

3

1313140C2

SHIELD

- right-hand, bottom, (20.0 foot)

1шт.

3

1313141C2

SHIELD

- right-hand, bottom, (22.5 foot)

1шт.

3

1313142C2

SHIELD

- right-hand, bottom, (25.0 foot)

1шт.

3

1313143C2

SHIELD

- right-hand, bottom, (30.0 foot)

1шт.

4

1307580C1

CLIP

- shield retaining

1шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

1шт.

7

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

4шт.

8

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.
