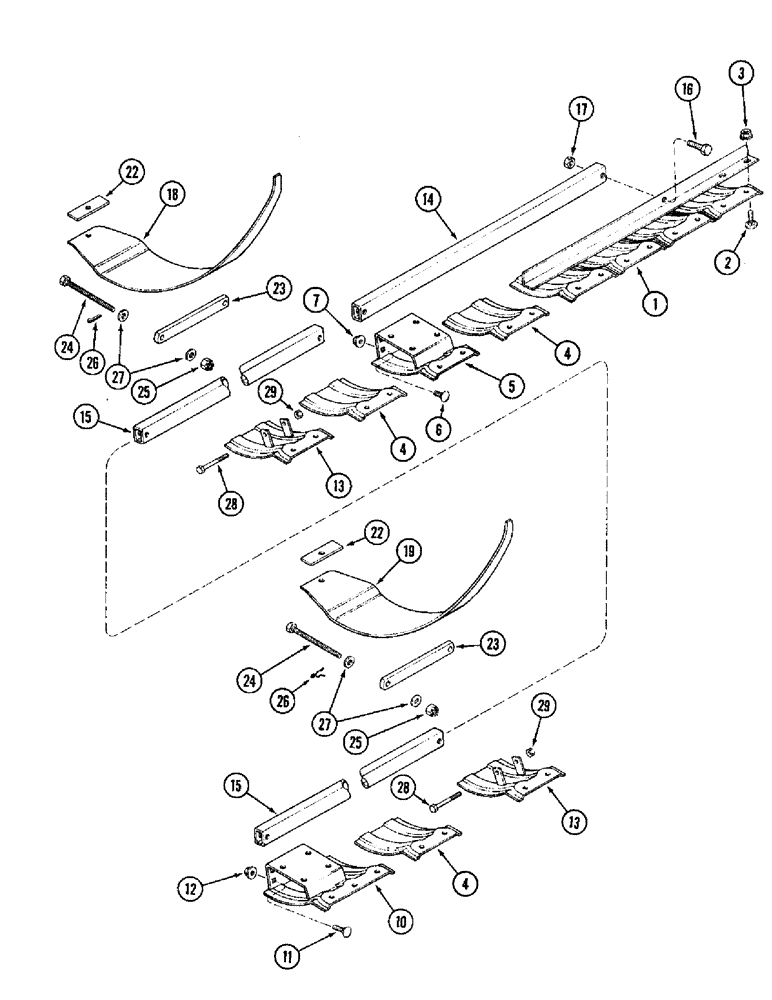

Запчасти Case IH 1020 (9D-12) - CUTTER BAR SKIDS AND SUPPORT SPRINGS (09) - CHASSIS/ATTACHMENTS

1

128512A1

SKID/SHOE

SUPPORT - skid, left-hand (15.0, 20.0, 25.0 and 30.0 foot)

1шт.

1

128514A1

SKID/SHOE

SUPPORT - skid, left-hand (16.5, 17.5 and 22.5 foot)

1шт.

2

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

2шт.

3

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

2шт.

4

1307399C3

SKID/SHOE

SKID - cutter bar

1шт.

#4/5---the wear plate that goes on these two items is part 244860a1. 10/7/97

1шт.

5

1307398C4

BRACKET

SKID - runner support (16.5, 17.5 and 22.5 foot)

1шт.

#4/5---the wear plate that goes on these two items is part 244860a1. 10/7/97

1шт.

6

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

1шт.

7

231-5146

FLANGE NUT,3/8"-16

1шт.

10

1316335C5

SKID/SHOE

SKID - runner support, right-hand (15.0, 20.0, 25.0 and 30.0 foot)

1шт.

11

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

1307466C3

BRACKET

SKID - spring support

1шт.

14

1320908C2

TUBE,845.5 mm Length

- cutter bar, lockout

1шт.

15

1320914C2

TUBE,1226.5 mm Length

- cutter bar (15.0 foot)

2шт.

15

1320913C2

TUBE,693 mm Length

- cutter bar (17.5 foot)

2шт.

15

1320912C2

TUBE,1074 mm Length

- cutter bar (20.0 foot)

2шт.

15

1320911C2

TUBE,540.5 mm Length

- cutter bar (16.5 and 22.5 foot)

2шт.

15

1320910C2

TUBE,921.5 mm Length

- cutter bar (25.0 foot)

2шт.

15

1320909C2

TUBE,769 mm Length

- cutter bar (30.0 foot)

2шт.

16

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

17

232-5316

FLANGE NUT,Flg, 3/8"-16

NUT - hex flange, self-locking, 3/8 inch NC

1шт.

18

87450184

SPRING, LEAF

SPRING - cutter bar support

1шт.

19

87450185

SUPPORT

SPRING - cutter bar support, right-hand

1шт.

22

1316387C1

PLATE

- spring support

1шт.

23

1305054C2

BAR

- spring adjusting

1шт.

24

1313175C1

BOLT,Hex, 1/2" - 13 x 6.25", Type 8, Full Thd, Drilled

BOLT - special, 1/2 NC x 6-1/4 inch, grade 8

1шт.

25

425-128

SLOTTED NUT,1/2"-13, G5

NUT - hex, slotted, 1/2 inch NC

1шт.

26

19674R1

PIN,2.36mm OD x 25.4mm L, Coiled

1шт.

27

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

1шт.

28

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

1шт.

29

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

1шт.
