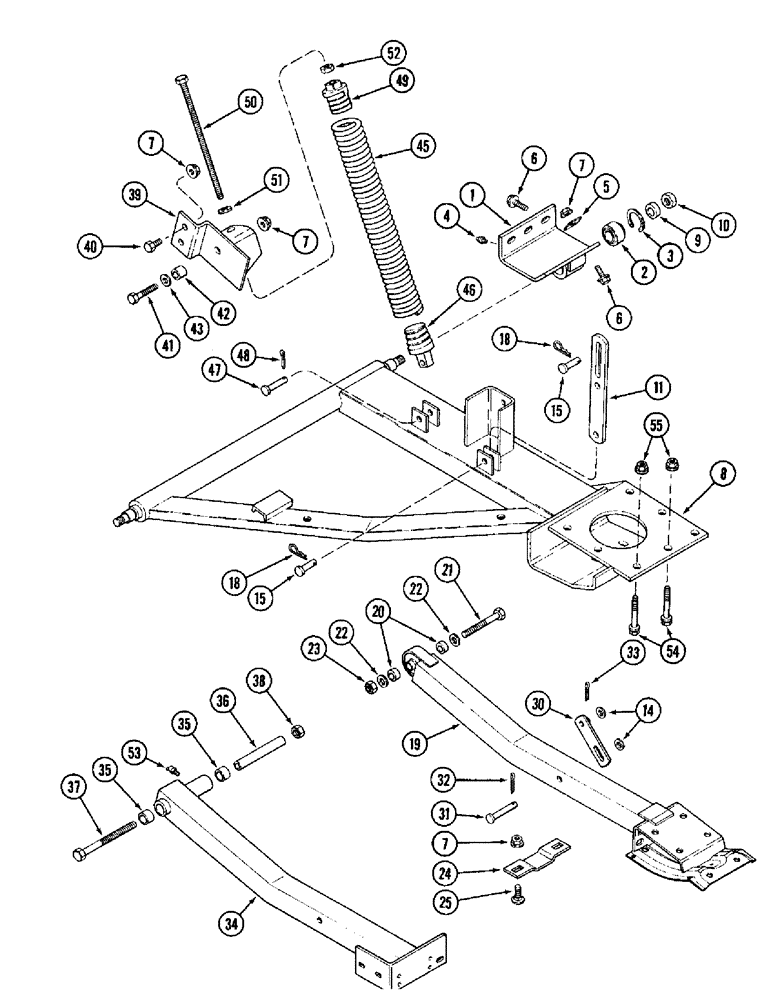

Запчасти Case IH 1020 (9D-10) - MAIN FRAME SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1313979C91

SUPPORT

ASSEMBLY - pivot, outer, Includes: Ref. 2 & 3

1шт.

2

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

- pivot

1шт.

3

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

4

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

5

199408C1

SHIM,28mm OD x 1mm Thk

- .032 inch, support

1шт.

6

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

5шт.

7

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

8

128452A2

SUPPORT

- runner, left hand

1шт.

(For #8) weldment for the inner pivot assembly is 1313980c91 dmm 10/1/97

1шт.

9

1316828C1

SPACER

- support

1шт.

10

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

2шт.

11

130867A1

STRAP

- down stop, left-hand

1шт.

14

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

15

439-1824

HEADED PIN,1/2" x 1 1/2", G2

PIN - headed, 1/2 x 1-1/2 inch, grade 2

2шт.

18

480523R1

HAIR PIN COTTER

2шт.

19

1989223C3

SUPPORT

- runner, inner

1шт.

20

577715R1

SPACER,16.69mm ID x 22.23mm OD x 10.32mm L

- 7/8 x 3/8 inch

1шт.

21

413-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- hex, 5/8 NC x 3-3/4 inch

1шт.

22

495-81177

WASHER,21/32" x 1" x .030"

- flat, 21/32 x 1 x 1/32 inch

1шт.

23

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

24

1316681C1

SUPPORT

- runner

1шт.

25

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

1шт.

30

1316302C1

ARM

- stop

1шт.

31

23173R1

CLEVIS PIN

PIN - clevis, 1/2 x 2-3/4 inch

1шт.

32

432-1216

COTTER PIN,3/16" x 1"

1шт.

33

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

1шт.

34

1316677C2

SUPPORT

ASSEMBLY - runner, right-hand, Includes: Ref. 35

1шт.

35

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

- concave control housing

2шт.

36

1316883C2

SPACER

- 5/8 x 5 inch

1шт.

37

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

1шт.

38

232-41110

NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

39

137928A1

SUPPORT

- spring, left-hand

1шт.

40

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

2шт.

41

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

42

610399R1

SPACER,13.9mm ID x 21.34mm OD x 9.5mm L

- 1/2 x 7/8 inch

1шт.

43

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

45

1313103C1

SPRING

- left

1шт.

46

1313104C1

PLUG

- spring, lower

1шт.

47

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

PIN - headed, 1/2 x 2 inch

1шт.

48

432-1216

COTTER PIN,3/16" x 1"

1шт.

49

124366A1

SPECIAL NUT

PLUG - spring, upper

1шт.

50

124365A1

BOLT,Hex, 5/8" - 11 x 254mm, Gr 5

- hex, special, 5/8 NC x 10 inch

1шт.

51

396-31066

WASHER,21/32" x 1 5/16" x .188", HDN

- flat, 21/32 x 1-5/16 x 3/16 inch

1шт.

52

425-1010

NUT,5/8"-11, G5

1шт.

53

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

54

414077C1

BOLT,Hex, 5/8" - 18 x 1 3/4"

- hex flange, special, 5/8 NC x 1-3/4 inch

2шт.

55

414089C1

FLANGE NUT,5/8" - 18

NUT - hex flange, special, 5/8 inch NF, grade 8

2шт.
