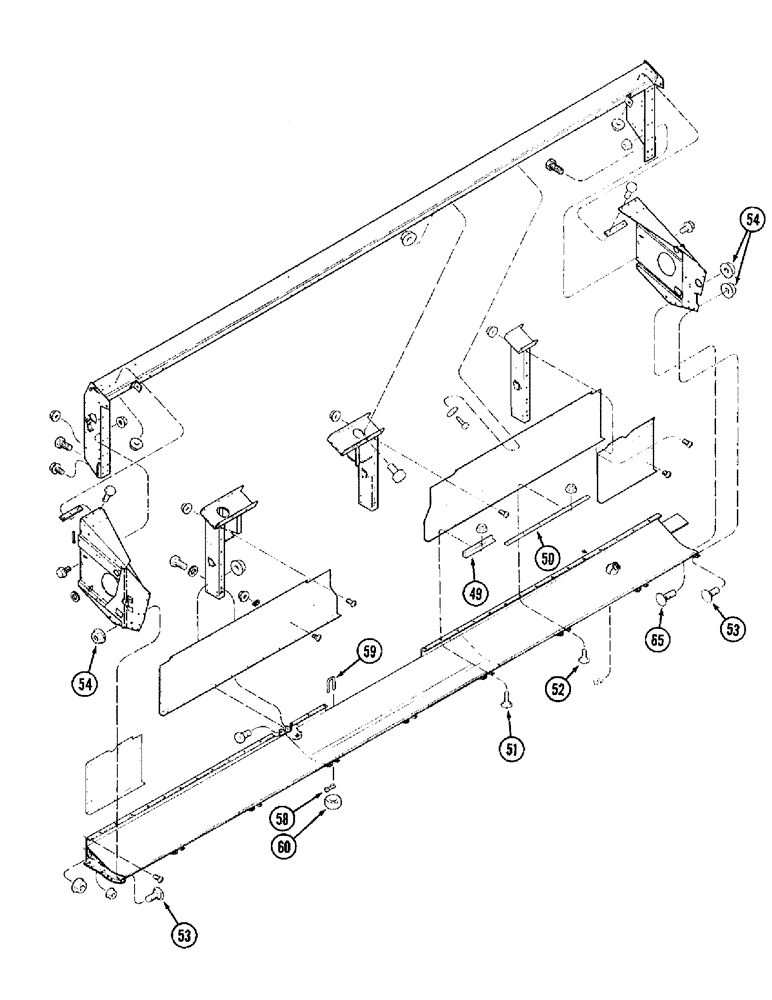

Запчасти Case IH 1020 (9D-08) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER (CONTD) (09) - CHASSIS/ATTACHMENTS

49

1316564C1

ANGLE

- stripper extension

2шт.

50

189825C2

STRIPPER

BAR - auger stripper, adjustable

1шт.

51

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

4шт.

52

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

53

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

1шт.

54

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

17шт.

58

1307371C1

LATCH

BAR - feeder latch

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

- feeder latch

2шт.

60

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.
