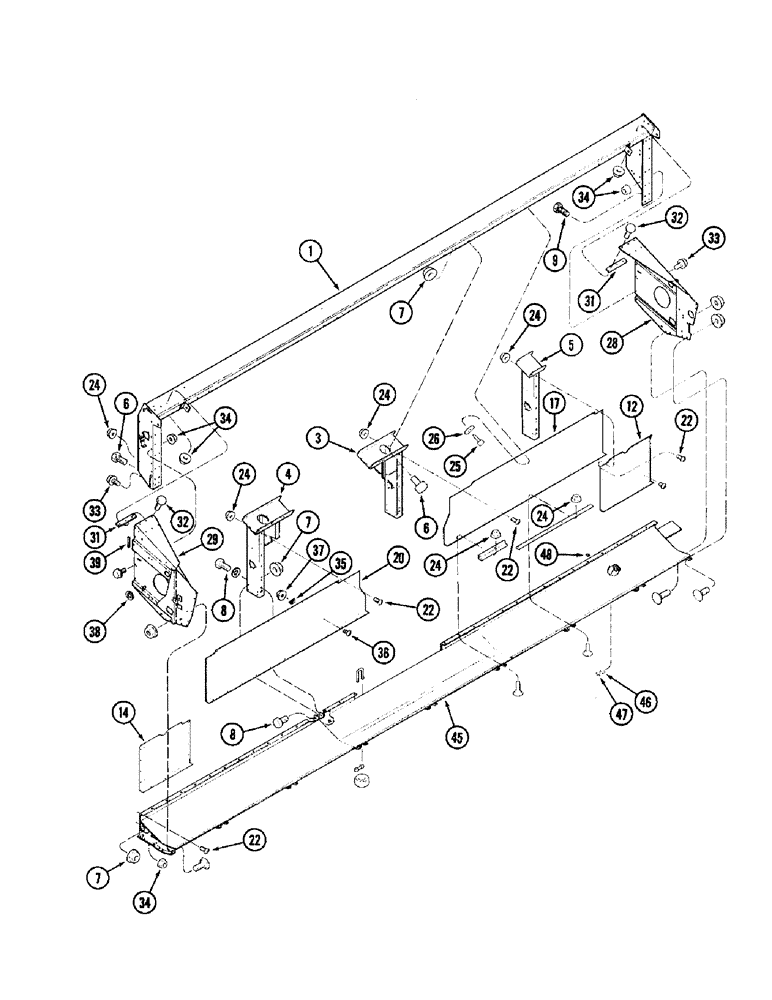

Запчасти Case IH 1020 (9D-06) - MAIN FRAME, 22.5, 25.0 AND 30.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

1

133213A1

FRAME

BEAM - main, with decals (22.5 foot)

1шт.

1

133214A1

FRAME

BEAM - main, with decals (25.0 foot)

1шт.

1

133215A1

FRAME

BEAM - main, with decals (30.0 foot)

1шт.

3

1307374C5

SUPPORT

POST - vertical, left-hand

1шт.

4

1307375C5

SUPPORT

POST - vertical, right-hand

1шт.

5

1307376C4

SUPPORT

POST - intermediate, left-hand

1шт.

5

128414A2

SUPPORT

POST - intermediate, right-hand

1шт.

6

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch (22.5 foot)

20шт.

6

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1 inch

20шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

54шт.

8

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

38шт.

9

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

10

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

4шт.

12

1307093C1

SHEET

- rear, left-hand, with decals (22.5 foot)

1шт.

12

1307095C1

SHEET

- rear, left-hand, with decals (25.0 foot)

1шт.

12

1307097C1

SHEET

- rear, left-hand, with decals (30.0 foot)

1шт.

14

1307094C1

SHEET

- rear, right-hand, with decals (22.5 foot)

1шт.

14

1307096C1

SHEET

- rear, right-hand, with decals (25.0 foot)

1шт.

14

1307098C1

SHEET

- rear, right-hand, with decals (30.0 foot)

1шт.

17

1326062C92

SHIELD

SHEET - center rear, left-hand, with decals

1шт.

20

1326063C93

SHIELD

SHEET - center rear, right-hand, with decals

1шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

22

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

25

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

26

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

28

131176A1

SHEET

- end, left-hand

1шт.

29

130817A1

SHEET

- end, right-hand

1шт.

31

1313966C1

BAR

- shim

2шт.

32

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

6шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

12шт.

34

231-5146

FLANGE NUT,3/8"-16

18шт.

35

133973A1

ANGLE

- chain

4шт.

36

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

4шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

38

135370A1

PROTECTION STRIP

TRIM - edge, 194 mm (7-5/8 inch) long, cut from 1330108CX bulk trim, lift cylinder hose, front

1шт.

39

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

TRIM - edge, 76 mm (3 inch) long, cut from 1330108CX bulk trim, lift cylinder hose, rear

1шт.

45

1307503C94

BEAM

ASSEMBLY - lower (22.5 foot), Includes: Ref. 46 & 47

1шт.

45

1307504C94

BEAM

ASSEMBLY - lower (25.0 foot), Includes: Ref. 46 & 47

1шт.

45

1307505C94

BEAM

ASSEMBLY - lower (30.0 foot), Includes: Ref. 46 & 47

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

- pivot

1шт.

47

100-28162

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

48

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

1313980C91

PIVOT

ASSEMBLY inner, weldment

1шт.
