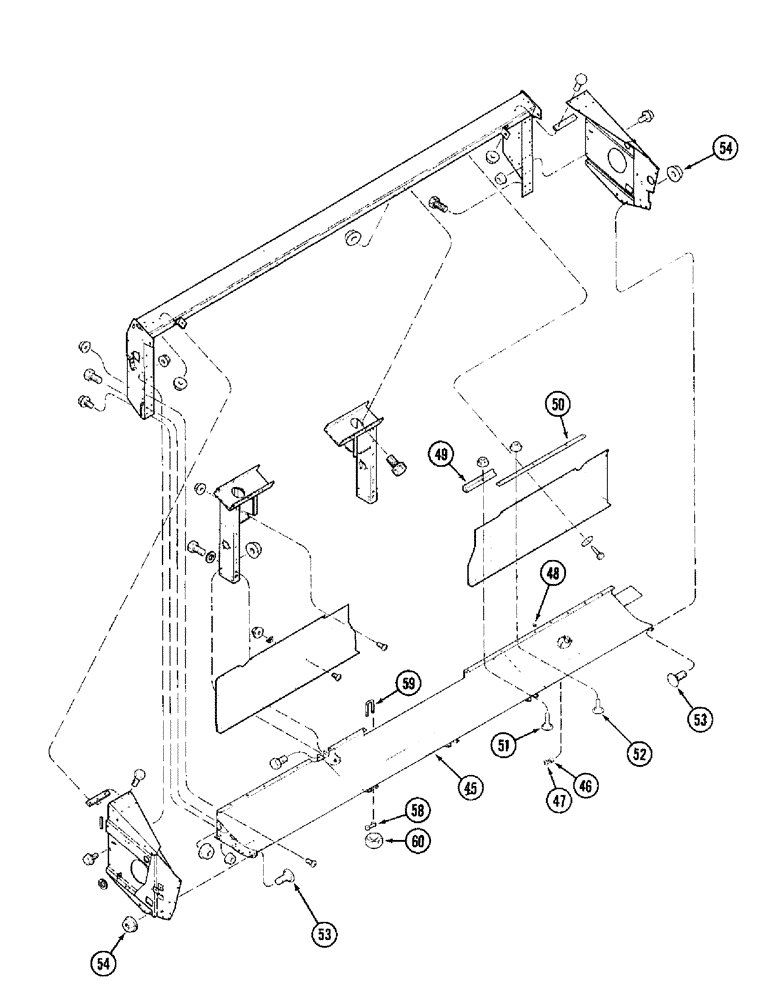

Запчасти Case IH 1020 (9D-04) - MAIN FRAME, 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (CONTD) (09) - CHASSIS/ATTACHMENTS

45

1307500C94

BEAM

ASSEMBLY - lower (15.0 foot), Includes: Ref. 46 & 47

1шт.

45

1326806C4

FRAME

BEAM ASSEMBLY - lower (16.5 foot), Includes: Ref. 46 & 47

1шт.

45

1307501C95

BEAM

ASSEMBLY - lower (17.5 foot), Includes: Ref. 46 & 47

1шт.

45

1307502C95

BEAM

ASSEMBLY - lower (20.0 foot), Includes: Ref. 46 & 47

1шт.

46

1316827C1

BUSHING,25.4mm ID x 41.27mm OD x 22.23mm W

- pivot

1шт.

47

206321H1

SNAP RING,1.625", Int, #162

Ring, Snap, 1.625", Int, #162

1шт.

48

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

49

1316564C1

ANGLE

- stripper extension

2шт.

50

189825C2

STRIPPER

BAR - auger stripper, adjustable

1шт.

51

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

BOLT - carriage, 5/16 NC x 1 inch

1шт.

52

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

53

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

54

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

4шт.

58

1307371C1

LATCH

BAR - feeder latch

2шт.

59

177134C3

U-BOLT,5/8" - 11 x 2.18" W x 4.60" L

- feeder latch

2шт.

60

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

4шт.
