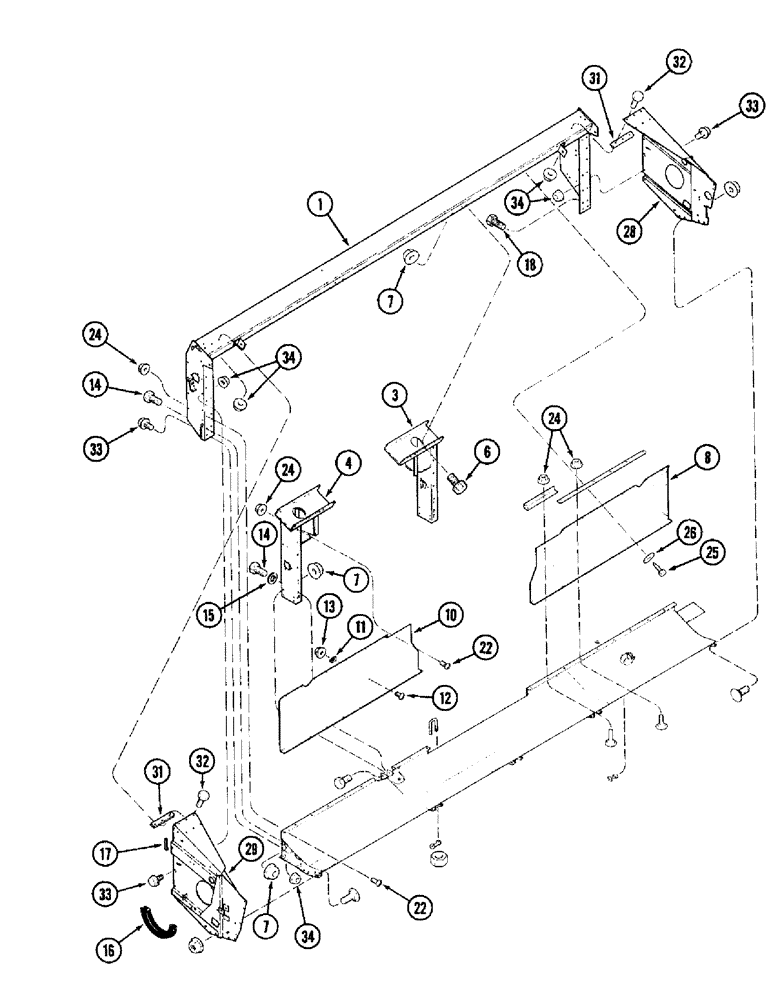

Запчасти Case IH 1020 (9D-02) - MAIN FRAME, 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

1

133209A1

FRAME

BEAM ASSEMBLY - main, with decals (15.0 foot)

1шт.

1

133210A1

FRAME

BEAM ASSEMBLY - main, with decals (16.5 foot)

1шт.

1

133211A1

FRAME

BEAM ASSEMBLY - main, with decals (17.5 foot)

1шт.

1

133212A1

FRAME

BEAM ASSEMBLY - main, with decals (20.0 foot)

1шт.

3

1307374C5

SUPPORT

POST - vertical, left-hand

1шт.

4

1307375C5

SUPPORT

POST - vertical, right-hand

1шт.

6

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

12шт.

7

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

30шт.

8

1326056C92

SHIELD

SHEET ASSEMBLY - rear, left-hand, with decals (15.0 foot)

1шт.

8

1326802C2

SUPPORT

SHEET ASSEMBLY - rear, left-hand, with decals (16.5 foot)

1шт.

8

1326058C92

SHIELD

SHEET ASSEMBLY - rear, left-hand, with decals (17.5 foot)

1шт.

8

1326060C92

SHIELD

SHEET ASSEMBLY - rear, left-hand, with decals (20.0 foot)

1шт.

10

1326057C93

SHEET

ASSEMBLY - rear, right-hand, with decals (15.0 foot)

1шт.

10

1326803C3

SUPPORT

SHEET ASSEMBLY - rear, right-hand, with decals (16.5 foot)

1шт.

10

1326059C93

SHIELD

SHEET ASSEMBLY - rear, right-hand, with decals (17.5 foot)

1шт.

10

1326061C93

SHIELD

SHEET ASSEMBLY - rear, right-hand, with decals (20.0 foot)

1шт.

11

133973A1

ANGLE

- chain

4шт.

12

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

5шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

14

326-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

20шт.

15

396-31053

WASHER,17/32" x 1 1/16" x .188", HDN

- flat, 17/32 x 1-1/16 x 3/16 inch, hardened

2шт.

16

135370A1

PROTECTION STRIP

TRIM - edge, 7-5/8 inch (194 mm) long, cut from 1330108CX bulk trim, lift cylinder hose, front

1шт.

17

87435C1

MOLDING,0.19mm Grip, 76.2mm OAL

TRIM - edge, 3 inch (76 mm) long, cut from 1330108CX bulk trim, lift cylinder hose, rear

1шт.

18

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

25

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

1шт.

26

495-81120

WASHER,.344" x 1 1/4" x .120"

- flat, 11/32 x 1-1/4 x 7/64 inch

1шт.

28

131176A1

SHEET

- end, left-hand

1шт.

29

130817A1

SHEET

- end, right-hand

1шт.

31

1313966C1

BAR

- shim

2шт.

32

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

6шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

12шт.

34

231-5146

FLANGE NUT,3/8"-16

24шт.
