Запчасти Case IH 1020 (9C-24) - AUGER DRIVE SHAFT, 22.5, 25.0 AND 30.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

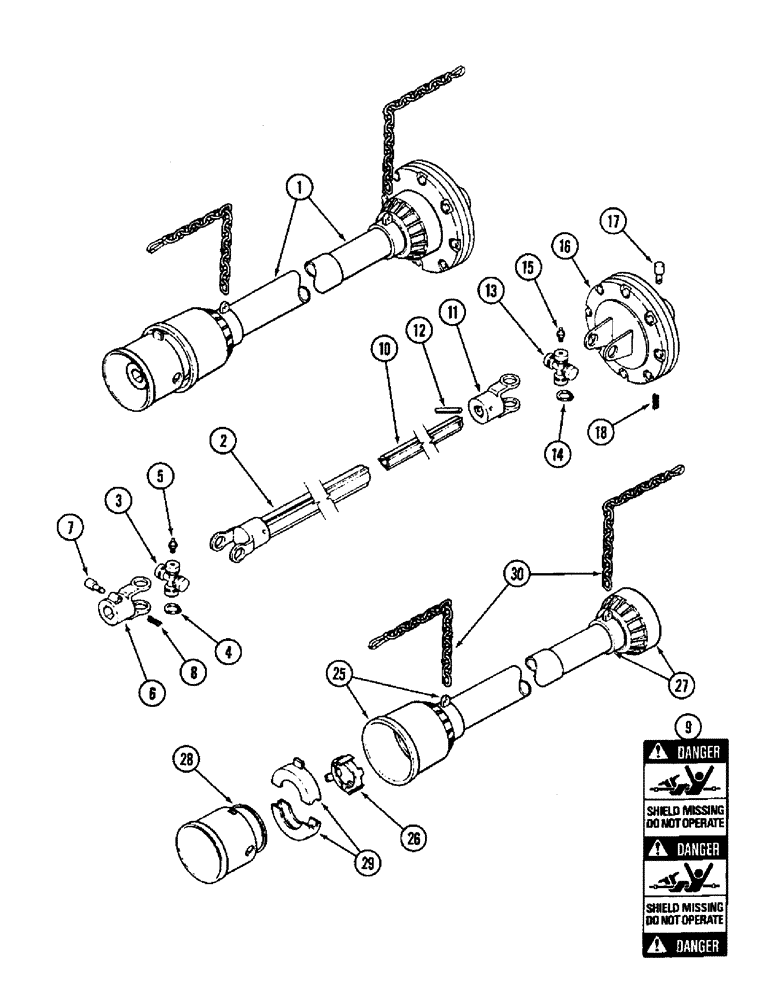

Схема запчастей Case IH 1020 - (9C-24) - AUGER DRIVE SHAFT, 22.5, 25.0 AND 30.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS
1
3
14
25
18
29
7
26
13
2
4
11
16
10
27
5
9
8
30
17
6
28
12
15

Артикул

Название

Примечание

Количество

1

106043A1

DRIVE SHAFT

SHAFT ASSEMBLY - auger drive, with decals, Includes: Ref. 2 - 30

1шт.

106107A1

SHAFT

ASSEMBLY - female drive, Includes: Ref. 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE ASSEMBLY - outer

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing, Includes: Ref. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

CROSS AND BEARING ASSEMBLY - drive shaft

1шт.

4

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

5

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, 6 x 1.00 mm, straight

2шт.

6

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

1311950C1

KIT

- push pin, yoke, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

PIN - yoke release

1шт.

8

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

9

1326528C1

DECAL

- Danger, shield missing, do not operate

1шт.

106109A1

SHAFT

ASSEMBLY - male drive, Includes: Ref. 10 - 18

1шт.

10

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

11

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

12

Q2937

LOCK PIN,M8 x 55, Slotted

PIN, LOCK, M8 x 55, Slotted

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing, Includes: Ref. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

CROSS AND BEARING ASSEMBLY - drive shaft

1шт.

14

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

15

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, 6 x 1.00 mm, straight

2шт.

16

106089A1

CLUTCH

ASSEMBLY - drive shaft, See Figure 9C-28

1шт.

1311950C1

KIT

- push pin, yoke, Includes: Ref. 17 & 18

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - yoke release

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

25

106103A1

OUTER SHIELD

SHIELD ASSEMBLY - outer female shaft, Includes: Ref. 26

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

27

106105A1

INNER SHIELD

SHIELD ASSEMBLY - inner, Includes: Ref. 29

1шт.

28

1326625C91

SHIELD

ASSEMBLY - yoke, outer, Includes: Ref. 29

1шт.

29

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

30

1326632C1

CHAIN

- drive shaft

2шт.

Выбрано товаров: 30
