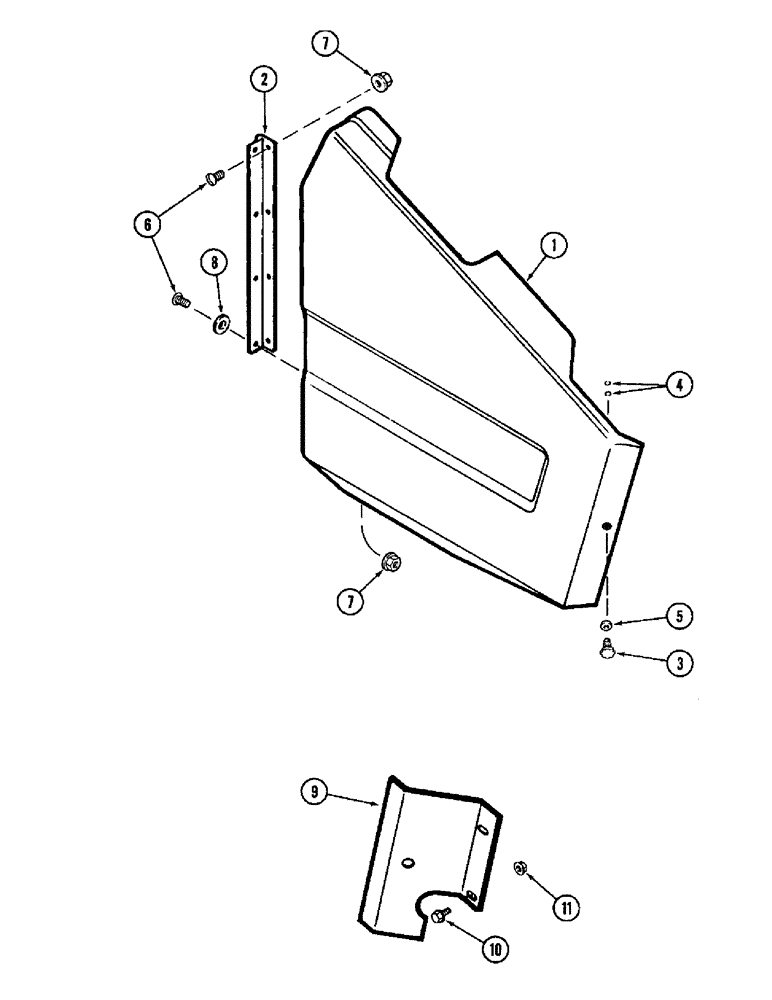

Запчасти Case IH 1020 (9C-12) - AUGER DRIVE SHIELD AND SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

1316566C3

SHIELD

- auger drive

1шт.

2

1326230C1

HINGE

- shield, auger drive

1шт.

3

1326408C2

STUD,25.4mm OD x 52.3mm L

STUD - fastener, shield

1шт.

4

1326407C1

RETAINER

- shield stud

2шт.

5

495-81023

WASHER,17/32" x 1 1/4" x .030"

- flat, 17/32 x 1-1/4 x 1/32 inch

6шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

8шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

8

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

9

1316721C1

SUPPORT

- auger shield, front

1шт.

10

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.
