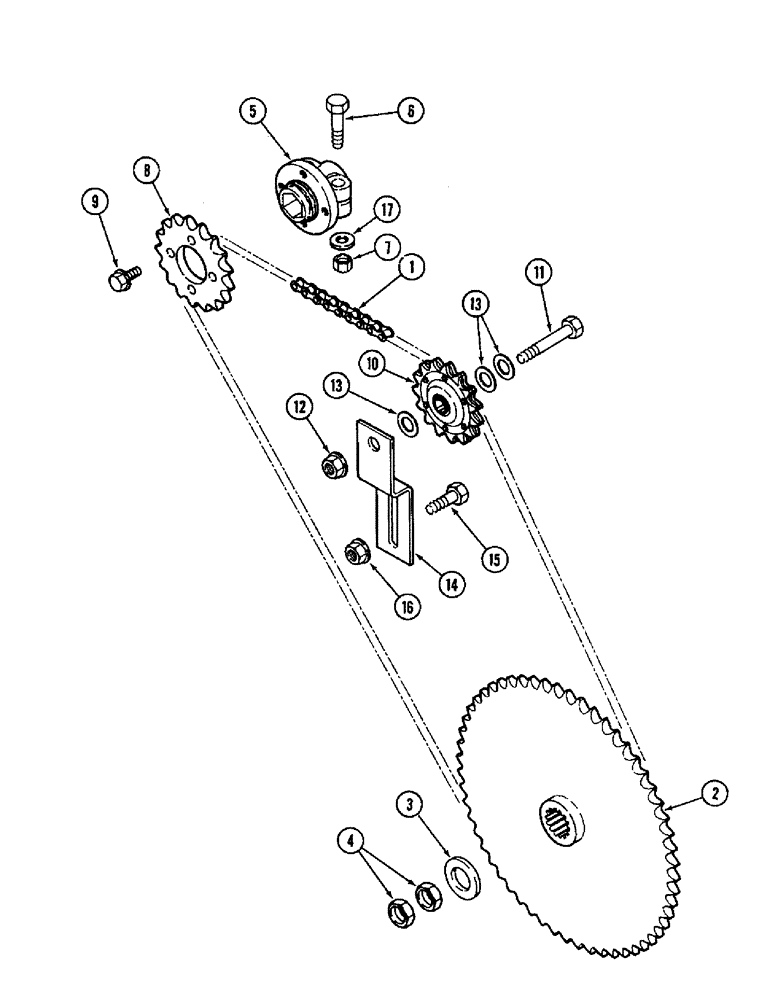

Запчасти Case IH 1020 (9C-10) - AUGER DRIVE (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - auger drive

1шт.

With Auger Drive Sprocket (Ref. 2), Use Bulk Chain 611362R91, Connecting Link 574532R91 And Roller Link 241-1116 In The Following Quantities: 56 - Tooth Sprocket - 85 Chain Links, 2 Connecting Links And 1 Roller Link. 50 Tooth Sprocket - 83 Chain Links And 1 Connecting Link. 45 Tooth Sprocket - 81 Chain Links And 1 Connecting Link. 40 Tooth Sprocket - 79 Chain Links And 1 Connecting Link.

1шт.

2

106055A1

SPROCKET

- auger drive, 152 RPM, 56 tooth (Standard)

1шт.

2

106056A1

SPROCKET

- auger drive, 170 RPM, 50 tooth (Optional)

1шт.

2

106057A1

SPROCKET

- auger drive, 189 RPM, 45 tooth (Optional)

1шт.

2

106058A1

SPROCKET

- auger drive, 213 RPM, 40 tooth (Optional)

1шт.

3

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

1шт.

4

425-1416

JAM NUT,Jam, 1"-8, G5

- hex, jam, 1 inch NC

2шт.

5

125966A1

HUB

- auger drive sprocket

1шт.

6

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

8

125990A1

SPROCKET

- auger drive, 17 tooth

1шт.

9

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

4шт.

10

179013A1

SPROCKET

- idler, 15 tooth

1шт.

11

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

1шт.

12

131-943

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

3шт.

14

128261A3

BRACKET

- idler sprocket

1шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

16

131-943

FLANGE NUT,Flg, 1/2"-13, G5

1шт.

17

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch

2шт.
