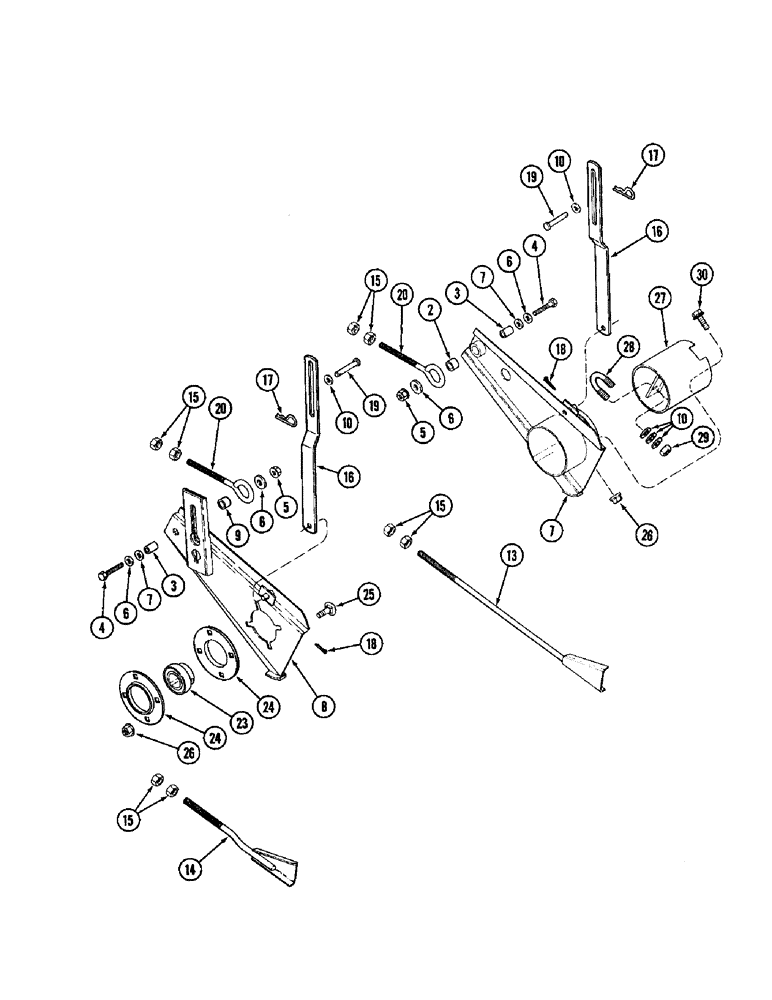

Запчасти Case IH 1020 (9C-08) - AUGER SUPPORTS (09) - CHASSIS/ATTACHMENTS

1

106041A1

BRACKET

ASSEMBLY - auger, left-hand, Includes: Ref. 2

1шт.

2

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

- pivot

1шт.

3

1968840C1

SPACER

- 3/4 OD x 1-1/16 inch, auger pivot

2шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

5

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

2шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

4шт.

7

495-81256

WASHER,19.84mm ID x 28.57mm OD x 0.84mm Thk

- flat, 25/32 x 1-1/8 x 3/64 inch

1шт.

8

128429A2

SUPPORT

BRACKET ASSEMBLY - auger, right-hand, Includes: Ref. 9

1шт.

9

189971C1

BUSHING,19.33mm ID x 22.38mm OD x 19.3mm L

- pivot

1шт.

10

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

8шт.

13

128199A1

SUPPORT

- auger adjusting, left-hand

1шт.

14

133822A1

SUPPORT

- auger adjusting, right-hand

1шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

16

1320723C1

SUPPORT

- auger lift

2шт.

17

480523R1

HAIR PIN COTTER

2шт.

18

432-1218

COTTER PIN,3/16" x 1 1/8"

3/16" x 1 1/8"

2шт.

19

439-5844

HEADED PIN,1/2" x 2 3/4", G5

PIN - headed, 1/2 x 2-3/4 inch

2шт.

20

127870A1

EYEBOLT

BOLT - eye, auger pivot

2шт.

23

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING - ball, drive shaft

1шт.

24

663562R1

FLANGE

- bearing, round (Alternate with 1307583C1)

2шт.

24

1307583C1

FLANGED BEARING

- bearing, square (Alternate with 663562R1)

2шт.

25

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch

4шт.

26

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT - hex flange, self-locking, 1/2 inch NC

6шт.

27

1320695C1

TUBE

- finger adjusting, inner

1шт.

28

1307195C2

U-BOLT,1/2" - 13 x 40.37mm W x 55mm L, Gr 8

- 1/2 inch NC

1шт.

29

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

30

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

2шт.
