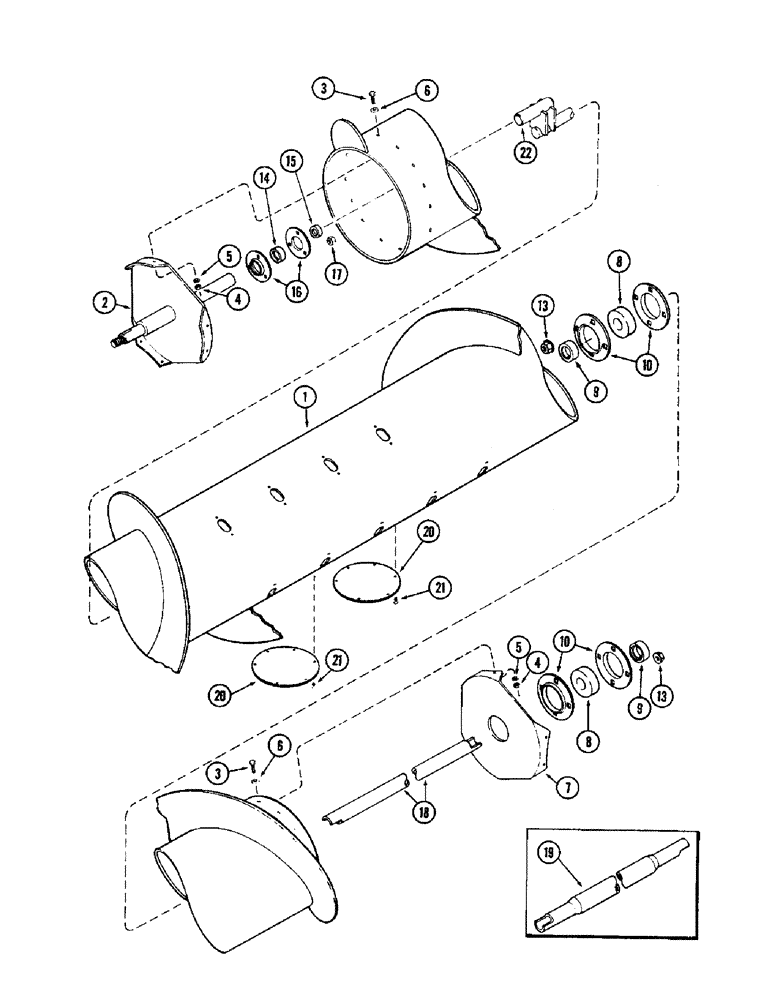

Запчасти Case IH 1020 (9C-02) - AUGER (09) - CHASSIS/ATTACHMENTS

1

106001A2

AUGER

- (15.0 foot)

1шт.

1

106002A2

AUGER

- (16.5 foot)

1шт.

1

106003A2

AUGER

- (17.5 foot)

1шт.

1

106004A2

AUGER

- (20.0 foot)

1шт.

1

106005A2

AUGER

- (22.5 foot)

1шт.

1

106006A2

AUGER

- (25.0 foot)

1шт.

1

106007A2

AUGER

- (30.0 foot)

1шт.

2

106024A1

SHAFT

ASSEMBLY - drive

1шт.

3

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

4

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8

12шт.

5

492-11038

LOCK WASHER,3/8"

12шт.

6

25534R1

WASHER

- flat, 13/32 x 13/16 x 1/16 inch

12шт.

7

1307256C1

RETAINER

- auger LH

1шт.

8

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

BEARING - ball, auger shaft

2шт.

9

455112R11

COLLAR

- locking, bearing (With set screw)

2шт.

10

663562R1

FLANGE

- bearing, round (Alternate with 1307583C1)

4шт.

10

1307583C1

FLANGED BEARING

- bearing, square (Alternate with 663562R1)

4шт.

13

232-5318

FLANGE NUT,Flg, 1/2"-13

NUT, LOCK, Flg, 1/2"-13

8шт.

14

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

BEARING - ball, auger shaft inner

1шт.

15

455102R21

COLLAR

- locking, bearing, includes set screw

1шт.

16

937517R1

FLANGE

- bearing

2шт.

17

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

3шт.

18

1307262C1

TUBE,38.087 mm OD, 1793 mm Length

- finger adjusting (15.0 foot)

1шт.

18

1326828C1

TUBE,38.087 mm OD, 2021.6 mm Length

- finger adjusting (16.5 foot)

1шт.

18

1307263C1

TUBE,38.087 mm Diameter, 2174 mm Length

- finger adjusting (17.5 foot)

1шт.

18

1307264C1

TUBE,38.087 mm Diameter, 2555 mm Length

- finger adjusting (20.0 foot)

1шт.

18

1307265C1

TUBE,38.087 mm Diameter, 2936 mm Length

- finger adjusting (22.5 foot)

1шт.

19

1307266C1

TUBE

- finger adjusting (25.0 foot)

1шт.

19

1307267C1

TUBE

- finder adjusting (30.0 foot)

1шт.

20

184505C1

COVER

- handhole

2шт.

21

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW - self-tapping, hex washer head, 1/4 NC x 1/2 inch

12шт.

22

REF

INSTRUCTION

SHAFT ASSEMBLY - finger, See Figure 9C-04

1шт.
