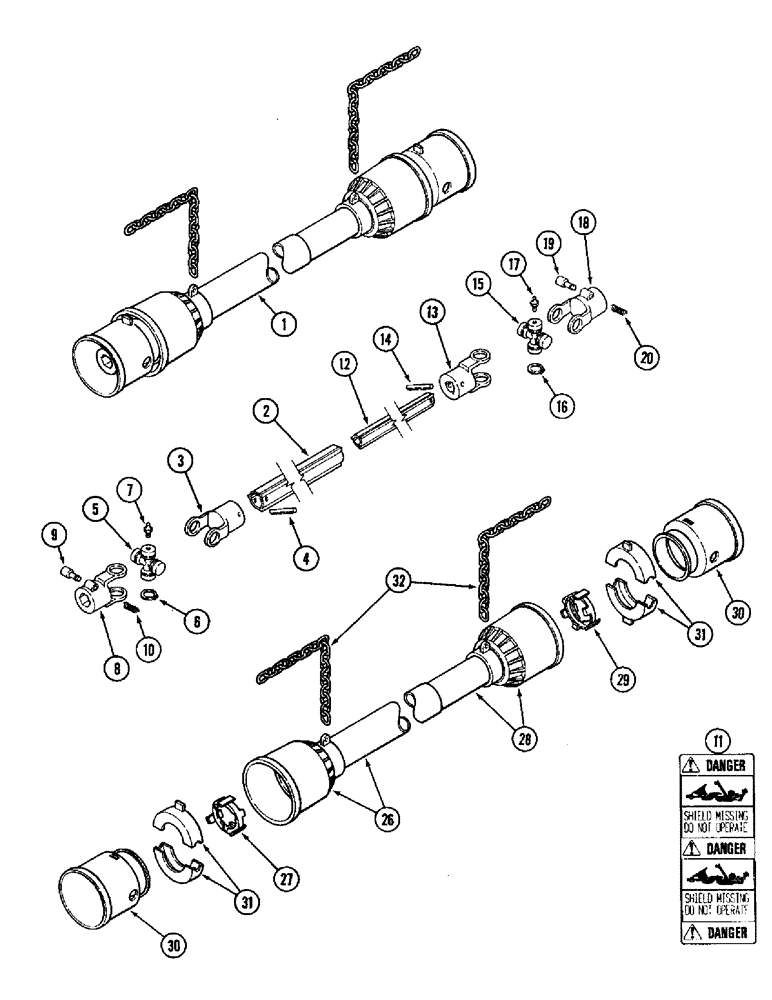

Запчасти Case IH 1020 (9B-30) - KNIFE DRIVE SHAFT, 22.5, 25.0 AND 30.0 FOOT HEADER (BONDIOLI AND PAVESI) (09) - CHASSIS/ATTACHMENTS

1

1313570C92

DRIVE SHAFT

SHAFT ASSEMBLY - drive, auger (With decals), Includes: Ref. 2 - 32

1шт.

1326659C91

DRIVE SHAFT

SHAFT ASSEMBLY - female drive, Includes: Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - outer

1шт.

3

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

4

Q2937

LOCK PIN,M8 x 55, Slotted

PIN, LOCK, M8 x 55, Slotted

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

CROSS AND BEARING ASSEMBLY - drive shaft

1шт.

6

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

7

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, 6 x 1.00 mm, straight

2шт.

8

1325022C1

YOKE

- drive shaft

1шт.

1311950C1

KIT

- push pin, yoke, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - yoke release

1шт.

10

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

11

1326528C1

DECAL

- Danger, shield missing, do not operate

1шт.

1326624C91

DRIVE SHAFT

SHAFT ASSEMBLY - male drive, Includes: Ref. 12 - 20

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - inner

1шт.

13

NSS

NOT SOLD SEPARAT

YOKE - drive shaft

1шт.

14

838-5845

LOCK PIN,M8 x 45, Slotted

PIN - roll, 8 x 45 mm

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing, Includes: Ref. 15 - 17

1шт.

15

NSS

NOT SOLD SEPARAT

CROSS AND BEARING ASSEMBLY - drive shaft

1шт.

16

933916R1

SNAP RING,M24, Int

RING - internal retaining, 26 mm

4шт.

17

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, 6 x 1.00 mm, straight

2шт.

18

1325022C1

YOKE

- drive shaft

1шт.

1311950C1

KIT

- push pin, yoke, Includes: Ref. 19 & 20

1шт.

19

NSS

NOT SOLD SEPARAT

PIN - yoke release

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

26

1326628C91

OUTER SHIELD

SHIELD ASSEMBLY - outer, Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

28

1326631C91

OUTER SHIELD

SHIELD ASSEMBLY - inner, Includes: Ref. 29

1шт.

29

1544650C1

BEARING

- shield

1шт.

30

1326625C91

SHIELD

ASSEMBLY - yoke, Includes: Ref. 31

2шт.

31

NSS

NOT SOLD SEPARAT

BEARING - shield

1шт.

32

1326632C1

CHAIN

- drive shaft

2шт.
