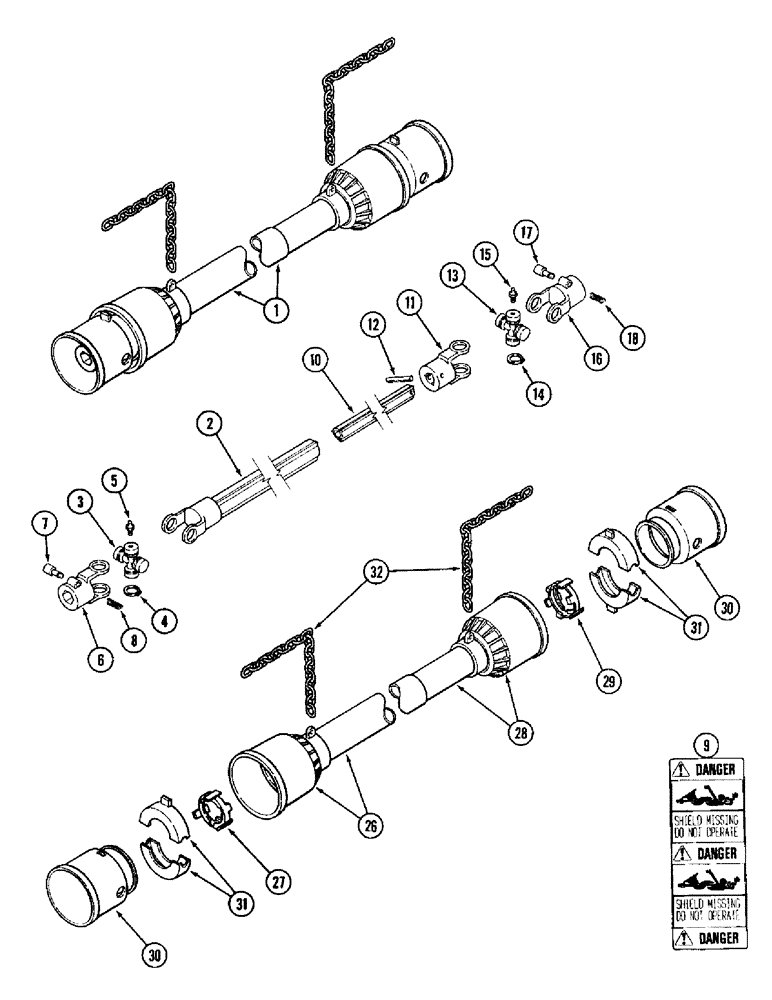

Запчасти Case IH 1020 (9B-24) - KNIFE DRIVE SHAFT, 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (BONDIOLI AND PAVESI) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1313569C92
DRIVE SHAFT
SHAFT ASSEMBLY - drive, auger (With decals), Includes: Ref. 2 - 32
1шт.
2
NSS
NOT SOLD SEPARAT
TUBE ASSEMBLY - outer
1шт.
1330586C1
REPAIR KIT
KIT - cross and bearing, Includes: Ref. 3 - 5
1шт.
3
NSS
NOT SOLD SEPARAT
CROSS AND BEARING ASSEMBLY - drive shaft
1шт.
4
933916R1
SNAP RING,M24, Int
RING - internal retaining, 26 mm
4шт.
5
933756R1
LUBE NIPPLE,M6 x 1
FITTING - grease, 6 x 1.00 mm, straight
2шт.
6
1325022C1
YOKE
- drive shaft
1шт.
1311950C1
KIT
- push pin, yoke, Includes: Ref. 7 & 8
1шт.
7
NSS
NOT SOLD SEPARAT
PIN - yoke release
1шт.
8
NSS
NOT SOLD SEPARAT
SPRING - return
1шт.
9
1326528C1
DECAL
- Danger, shield missing, do not operate
1шт.
1326623C92
DRIVE SHAFT
SHAFT ASSEMBLY - male drive, Includes: Ref. 10 - 18
1шт.
10
NSS
NOT SOLD SEPARAT
TUBE - inner
1шт.
11
NSS
NOT SOLD SEPARAT
YOKE - drive shaft
1шт.
12
838-5845
LOCK PIN,M8 x 45, Slotted
PIN - roll, 8 x 45 mm
1шт.
1330586C1
REPAIR KIT
KIT - cross and bearing, Includes: Ref. 13 - 15
1шт.
13
NSS
NOT SOLD SEPARAT
CROSS AND BEARING ASSEMBLY - drive shaft
1шт.
14
933916R1
SNAP RING,M24, Int
RING - internal retaining, 26 mm
4шт.
15
933756R1
LUBE NIPPLE,M6 x 1
FITTING - grease, 6 x 1.00 mm, straight
2шт.
16
1325022C1
YOKE
- drive shaft
1шт.
1311950C1
KIT
- push pin, yoke, Includes: Ref. 17 & 18
1шт.
17
NSS
NOT SOLD SEPARAT
PIN - yoke release
1шт.
18
NSS
NOT SOLD SEPARAT
SPRING - return
1шт.
26
1326627C92
INNER SHIELD
SHIELD ASSEMBLY - outer, Includes: Ref. 27
1шт.
27
NSS
NOT SOLD SEPARAT
BEARING - shield
1шт.
28
1326630C92
OUTER SHIELD
SHIELD ASSEMBLY - inner, Includes: Ref. 29
1шт.
29
NSS
NOT SOLD SEPARAT
BEARING - shield
1шт.
30
1326625C91
SHIELD
ASSEMBLY - yoke, Includes: Ref. 31
2шт.
31
NSS
NOT SOLD SEPARAT
BEARING - shield
1шт.
32
1326632C1
CHAIN
- drive shaft
2шт.
Выбрано товаров: 31
