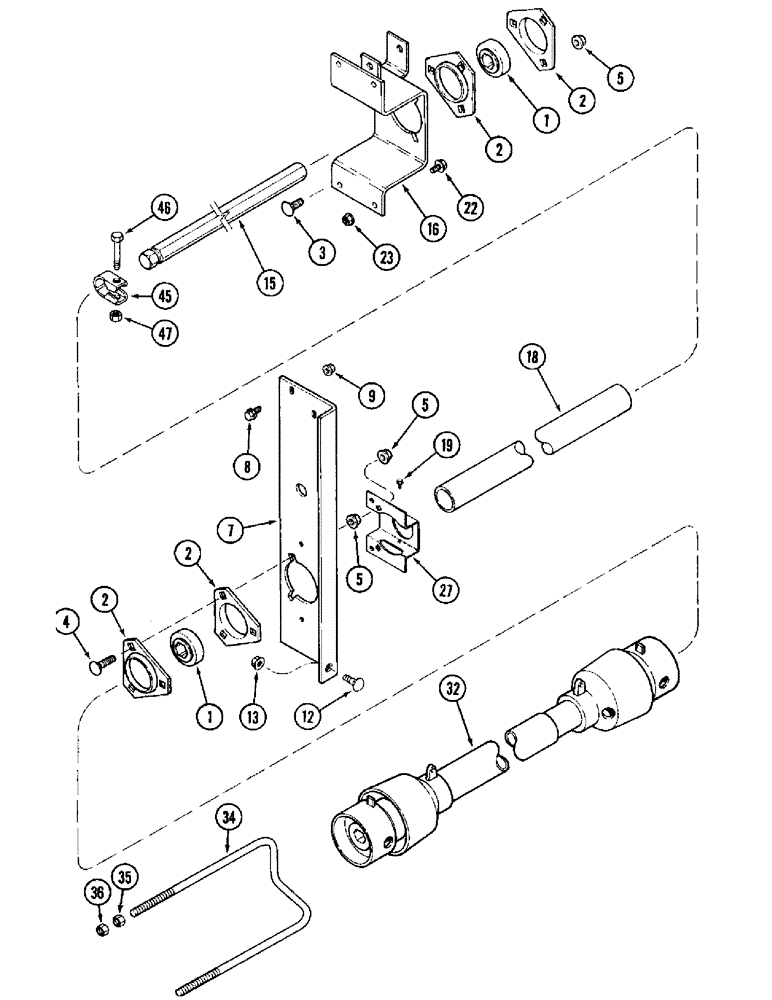

Запчасти Case IH 1020 (9B-18) - KNIFE JACKSHAFT DRIVE, 17.5 AND 20.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
156816C91
BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W
BEARING - ball, jackshaft
2шт.
2
180955C1
FLANGED BEARING,0.375"
FLANGE - bearing
4шт.
3
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - carriage, 3/8 NC x 1 inch
3шт.
4
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
5
231-5146
FLANGE NUT,3/8"-16
8шт.
7
1307339C1
SUPPORT
- jackshaft
1шт.
8
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
- hex serrated flange, 5/16 NC x 3/4 inch
2шт.
9
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
12
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT - carriage, 1/2 NC x 1 inch
1шт.
13
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
1шт.
15
125970A1
JACKSHAFT
BAR - jackshaft (17.5 foot)
1шт.
15
125971A1
JACKSHAFT
BAR - jackshaft (20.0 foot)
1шт.
16
138653A1
SUPPORT
- knife drive
1шт.
18
125982A1
TUBE,48.26 mm OD, 448 mm Length
- jackshaft shield (17.5 foot)
1шт.
18
125983A1
TUBE,48.26 mm OD, 829 mm Length
- jackshaft shield (20.0 foot)
1шт.
19
282-1448
SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"
SCREW - self tapping, No. 8-18 x 1 inch
1шт.
21
409-7620
BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl
- hex serrated flange, 3/8 NC x 1-1/4 inch
1шт.
22
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
3шт.
23
231-5146
FLANGE NUT,3/8"-16
4шт.
27
125992A1
SUPPORT
SHIELD - jackshaft
1шт.
32
REF
INSTRUCTION
DRIVE SHAFT ASSEMBLY - knife, See Figures 9B-24 - 9B-28)
1шт.
34
138005A1
HANGER
- drive line
1шт.
35
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
2шт.
36
231-4118
LOCK NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2 inch NC
2шт.
45
225265R1
CLAMP
- jackshaft
1шт.
46
413-840
BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5
- hex, 1/2 NC x 2-1/2 inch
1шт.
47
231-4118
LOCK NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2 inch NC
1шт.
Выбрано товаров: 27
