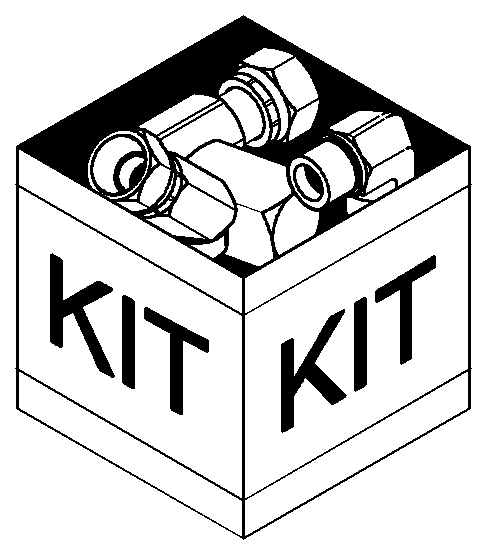

Запчасти Case IH 1020 (9B-09[05]) - KIT CUTTERBAR W/DHT GRDS 25FT L/KNIFE (09) - CHASSIS/ATTACHMENTS

1

B95638

KIT

Incl 2 - 17

1шт.

2

PM-1051

INSTRUCTION

1шт.

3

126628C1

SHIM

50шт.

4

1307280C3

KNIFE CLIP

24шт.

5

1316039C1

SHIM

73шт.

6

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

24шт.

7

1338269C1

GUARD

2шт.

8

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

9

326-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 8

2шт.

10

87613283

WASHER,0.66" ID x 1.31" OD x 0.15" Thk

2шт.

11

434-732

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2", Gr 5

2шт.

12

87442324

GUARD

47шт.

13

86637767

FLANGE NUT

100шт.

14

87442329

GUARD

3шт.

15

280980

NUT,7/16"-14, GC

2шт.

16

86508778

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

48шт.

17

88586

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

52шт.
