Запчасти Case IH 1020 (9B-08) - KNIFE ASSEMBLY - COARSE, 3 INCH - BOLTED, (TRW) (09) - CHASSIS/ATTACHMENTS

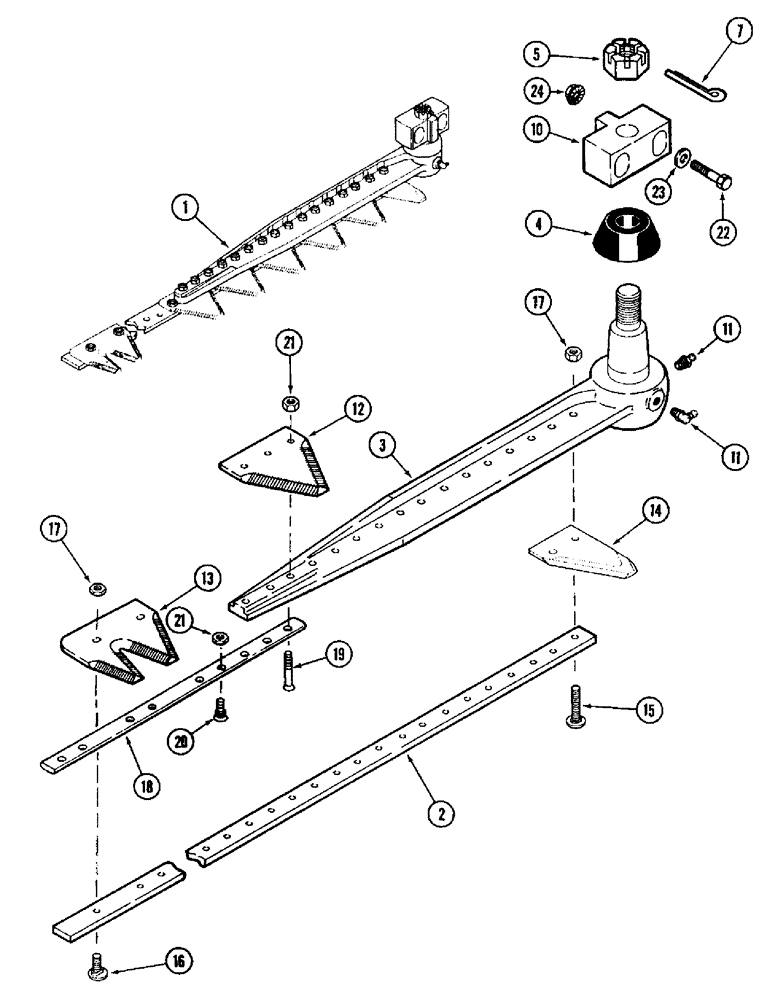

Схема запчастей Case IH 1020 - (9B-08) - KNIFE ASSEMBLY - COARSE, 3 INCH - BOLTED, (TRW) (09) - CHASSIS/ATTACHMENTS
11
22
12
4
13
3
23
16
17
18
24
5
7
20
19
15
21
1
11
2
17
10
21
14

Артикул

Название

Примечание

Количество

1

1307281C98

KNIFE ASSY

KNIFE ASSEMBLY - 15.0 foot, Includes: Ref. 2 - 17

1шт.

1

1326835C8

KNIFE ASSY

KNIFE ASSEMBLY - 16.5 foot, Includes: Ref. 2 - 17

1шт.

1

1307282C98

KNIFE ASSY

KNIFE ASSEMBLY - 17.5 foot, Includes: Ref. 2 - 17

1шт.

1

1307283C98

KNIFE ASSY

KNIFE ASSEMBLY - 20.0 foot, Includes: Ref. 2 - 17

1шт.

1

1307284C98

KNIFE ASSY

KNIFE ASSEMBLY - 22.5 foot, Includes: Ref. 2 - 17

1шт.

1

1307285C98

KNIFE ASSY

KNIFE ASSEMBLY - 25.0 foot, Includes: Ref. 2 - 17

1шт.

1

1307286C98

BLADE

KNIFE ASSEMBLY - 30.0 foot, Includes: Ref. 2 - 17

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1316161C94

KNIFE HEAD

HEAD ASSEMBLY - knife, Includes: Ref. 4

1шт.

4

1345491C2

DUST CAP

COVER - dust

1шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

10

1313797C1

BLOCK

- knife head

1шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper, if used 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

11

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , If used 1/4"-28 x .56" lg, Self-Tap

1шт.

12

112074A1

KNIFE SECTION

SECTION - knife, overserrated, 3 inch

1шт.

12

191256A1

KNIFE SECTION

SECTION - knife, overserrated 3 inch, chrome, if used

1шт.

13

148200C1

KNIFE SECTION

SECTION - knife, 3 inch, right-hand end

1шт.

14

1316030C2

KNIFE SECTION

SECTION - knife, 3 inch, plain half

1шт.

15

1979166C1

BOLT

BOLT - truss head ribbed neck, special, No. 12 NC x 1-1/8 inch

16шт.

16

700708646

BOLT AND NUT,Slotted, Btn Hd, #12 - 24 x 5/8"

SCREW - truss head ribbed neck, special, No. 12 NC x 5/8 inch, no longer available, order 700705296, see below

1шт.

Part of bolt and lock nut package P/N 700705296.

1шт.

17

1954816C1

LOCK NUT

NUT - hex, self-locking, special, No. 12 NC

1шт.

18

227455A1

STRAP

- knife back reinforcement, if used

1шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

19

227456A1

SCREW,FLAT, #12 - 24 x 1-1/4", Gr 8

- machine, socket head, special, No.12 NC x 1-1/4 inch

3шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

20

227457A1

SCREW,#12 - 24 x 13/16", Gr 8

- machine, socket head, special, No. 12 NC x 13/16 inch

6шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

21

1954816C1

LOCK NUT

NUT - hex, self-locking, special, No. 12 NC

9шт.

Part of Knife Back Reinforcement Kit, P/N 227213A1

1шт.

22

426-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

1шт.

23

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

1шт.

24

231-5146

FLANGE NUT,3/8"-16

For spare knife Flg, USR, 3/8"-16

1шт.

700705296

BOLT AND NUT

PACKAGE - bolt and lock nut, box of 50 each, Includes: Ref. 16

1шт.

227213A1

KIT

- knife back reinforcement, Includes: Ref. 18 - 21

1шт.
