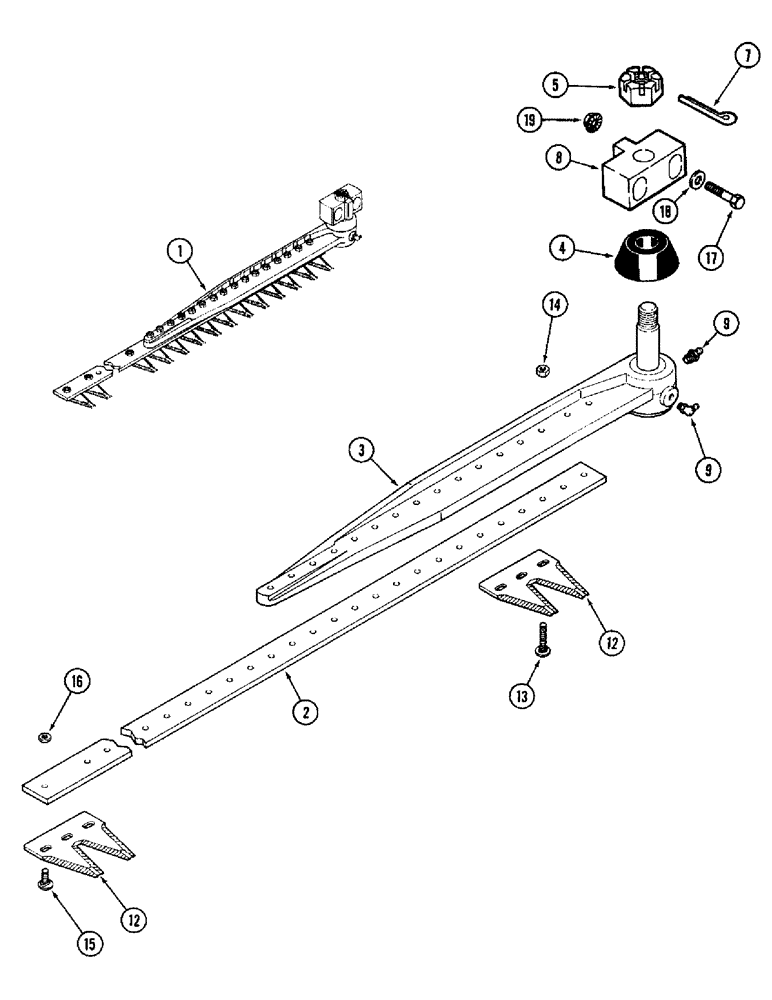

Запчасти Case IH 1020 (9B-06) - KNIFE ASSEMBLY, 1.5 INCH - BOLTED, (TRW) (09) - CHASSIS/ATTACHMENTS

1

1970400C5

KNIFE ASSY

KNIFE ASSEMBLY - 20 foot, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

BAR - knife back

1шт.

3

1313795C94

KNIFE HEAD

HEAD ASSEMBLY - knife, Includes: Ref. 4

1шт.

4

1345491C2

DUST CAP

COVER - dust

1шт.

5

425-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex, slotted, 5/8 inch NF

1шт.

7

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

8

1313797C1

BLOCK

- knife head

1шт.

9

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper, if used 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , If used 1/4"-28 x .56" lg, Self-Tap

1шт.

12

1970390C4

KNIFE SECTION

SECTION - overserrated knife, 1-1/2 inch

1шт.

12

191257A1

KNIFE SECTION

SECTION - overserrated knife, 1-1/2 inch, chrome , if used

1шт.

13

1970506C1

CARRIAGE BOLT,#12 - 24 x 1.125" , Gr 8

BOLT - round head oval neck, special, No. 12 NC x 1-1/8 inch, Grade 8

16шт.

14

1954816C1

LOCK NUT

NUT - hex, self-locking, special, No. 12 NC

16шт.

15

1970505C1

CARRIAGE BOLT,#12 - 24 x 0.532", Gr 8

BOLT - round head oval neck, special, No. 12 NC x 17/32 inch, Grade 8

1шт.

16

1970507C2

LOCK NUT

NUT - hex, self-locking, special, No. 12 NC

1шт.

17

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- hex, 3/8 NC x 2-1/4 inch, for spare knife

1шт.

18

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), for spare knife 3/8"

1шт.

19

231-5146

FLANGE NUT,3/8"-16

For spare knife Flg, USR, 3/8"-16

1шт.
