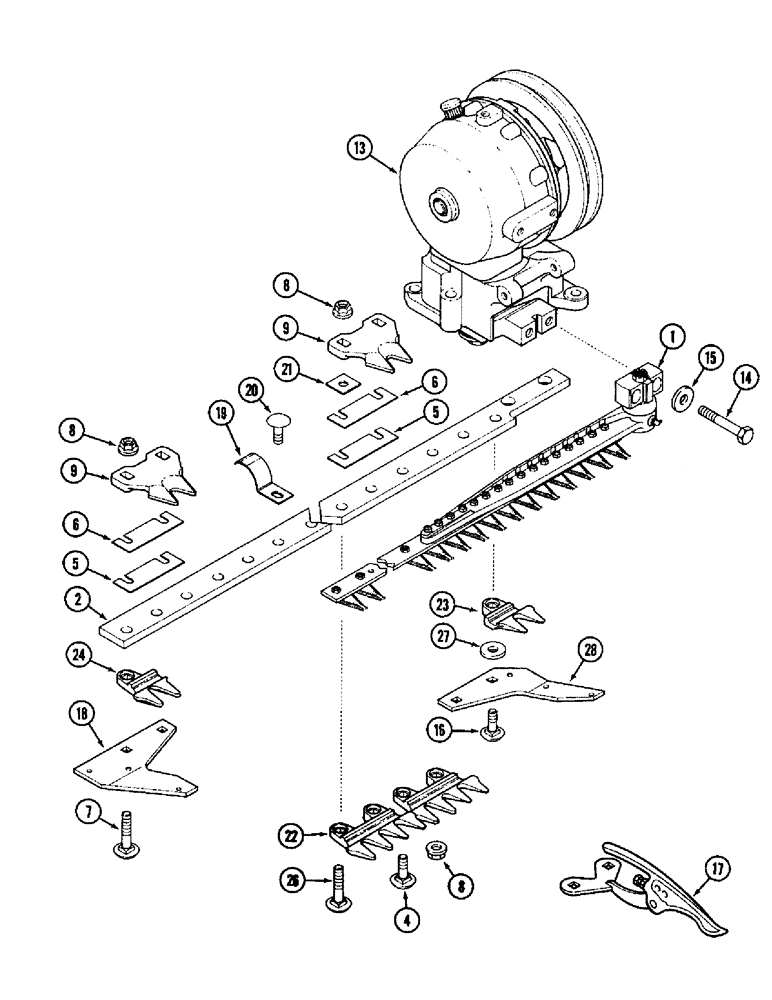

Запчасти Case IH 1020 (9B-02) - KNIFE GUARDS AND CUTTER BAR, 1.5 INCH KNIFE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

KNIFE ASSEMBLY - header, 1.5 inch, See Figure 9B-06

1шт.

2

1307412C1

CUTTERBAR

BAR - cutter (15.0 foot)

1шт.

2

1326813C1

CUTTERBAR

BAR - cutter (16.5 foot)

1шт.

2

1307413C1

CUTTERBAR

BAR - cutter (17.5 foot)

1шт.

2

1307414C1

CUTTERBAR

BAR - cutter (20.0 foot)

1шт.

2

1307415C1

CUTTERBAR

BAR - cutter (22.5 foot)

1шт.

2

1307416C1

CUTTERBAR

BAR - cutter (25.0 foot)

1шт.

2

1307417C1

CUTTERBAR

BAR - cutter (30.0 foot)

1шт.

4

433-724

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 1/2", Gr 5

BOLT - carriage, 7/16 NC x 1-1/2 inch

1шт.

5

1316040C1

SHIM,38.1mm OD x 2.1mm Thk

- .067 inch, knife guard

1шт.

6

1316039C1

SHIM

- .016 inch, knife guard

1шт.

7

434-740

CARRIAGE BOLT,Sht Sq Nk, 7/16" - 14 x 2 1/2", Gr 5

BOLT - carriage, 7/16 NC x 2-1/2 inch

2шт.

8

1313463C1

FLANGE NUT

NUT - hex small flange lock, 7/16 inch NC

1шт.

9

101001A2

KNIFE CLIP

CLIP - knife hold down

1шт.

ref #9 - if dlr looking for high arch, p/n sh/be 112428a1 per aj, dmm 9/9/97

1шт.

13

REF

INSTRUCTION

BOX ASSEMBLY - knife drive, See Figure 9B-12

1шт.

14

326-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 8

2шт.

15

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

16

433-732

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2", Gr 5

BOLT - carriage, 7/16 NC x 2 inch, , grade 5

2шт.

17

1326538C91

GRAIN LIFTER

LIFTER - grain

1шт.

18

1316688C4

SUPPORT

- crop deflector, right-hand

1шт.

19

1313160C1

CLIP

- hold down

1шт.

20

433-728

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 1 3/4", Gr 5

BOLT - carriage, 7/16 NC x 1-3/4 inch

1шт.

21

104155A1

SHIM,11.9mm ID x 38.1mm OD x 2.95mm Thk

- .093 inch, hold down clip

1шт.

22

1989552C1

GUARD

- knife, 4 point

1шт.

23

100999A1

GUARD

- 2 point, left-hand (15.0, 20.0, 25.0 and 30.0 foot)

1шт.

24

101000A1

GUARD

- 2 point, right-hand (15.0, 20.0, 25.0 and 30.0 foot)

1шт.

26

433-736

CARRIAGE BOLT,Sq Nk, 7/16" - 14 x 2 1/4", Gr 5

BOLT - carriage, 7/16 NC x 2-1/4 inch

1шт.

27

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

28

1957435C3

DEFLECTOR

SUPPORT - crop deflector, left-hand

1шт.
