Запчасти Case IH 1020 (9A-36) - REEL DRIVE, DRIVES, 1440E, 1460E AND 1480E COMBINE (09) - CHASSIS/ATTACHMENTS

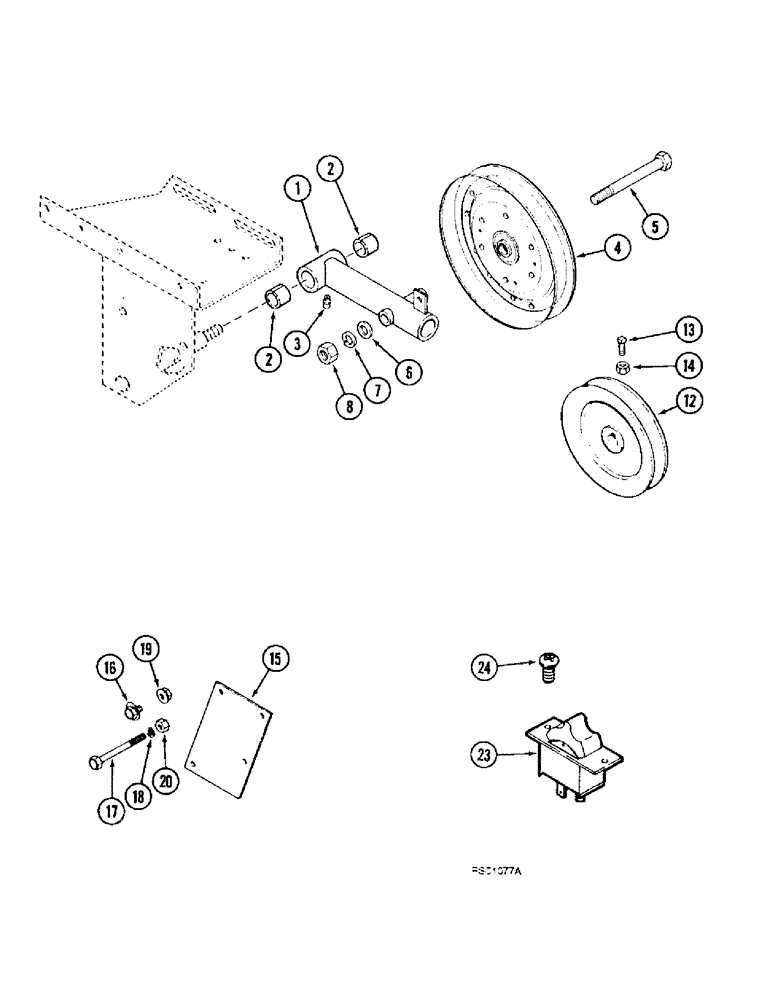

Схема запчастей Case IH 1020 - (9A-36) - REEL DRIVE, DRIVES, 1440E, 1460E AND 1480E COMBINE (09) - CHASSIS/ATTACHMENTS
6
4
8
2
19
18
14
20
16
7
24
17
15
12
13
23
2
3
5
1

Артикул

Название

Примечание

Количество

1

195528C92

ARM

ASSEMBLY - pump tightener, Includes: Ref. 2

1шт.

2

583346R1

BUSHING,25.45mm ID x 28.55mm OD x 25.4mm L

- tightener arm

2шт.

3

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

4

674966R91

PULLEY,203.2mm Idler Dia x 222.25mm OD x 36.51mm W

- belt idler, 8-3/4 inch OD

1шт.

5

413-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

1шт.

6

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch

1шт.

7

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

12

193252C1

PULLEY

ASSY, pump driven, 7.5" O.D., 7/8" I.D.

1шт.

13

485-13812

SET SCREW,Sq Hd, 3/8"-16 x 3/4"

SCREW - set, square head, 3/8 NC x 3/4 inch, cup point

2шт.

14

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

2шт.

15

1315461C1

BRACKET

- reel speed valve

1шт.

16

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

17

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

- hex, 5/16 NC x 1-3/8 inch

2шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

23

1301176C1

SWITCH

- rocker

1шт.

24

342-10610

SCREW,Cross Oval Hd, #6-32 x 5/8"

- machine, oval Phillips, No. 6 NC x 5/8 inch

1шт.

Выбрано товаров: 19
