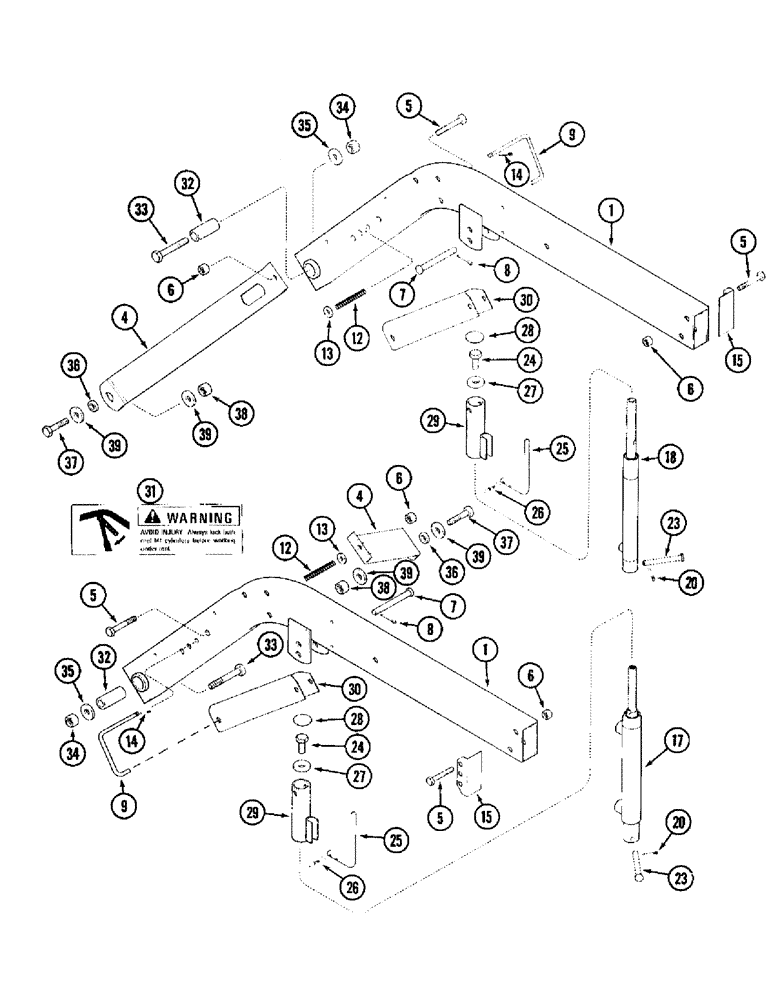

Запчасти Case IH 1020 (9A-26) - REEL SUPPORT ARMS AND LIFT CYLINDERS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
1308352C3
ARM
- support
2шт.
4
128428A2
SUPPORT
- arm
2шт.
5
413-848
BOLT,Hex, 1/2" - 13 x 3", Gr 5
- hex, 1/2 NC x 3 inch
4шт.
6
231-4118
LOCK NUT,1/2"-13, GB
NUT - hex, self-locking, 1/2 inch NC
4шт.
7
439-5848
HEADED PIN,1/2" x 3", G5
PIN - headed, 1/2 x 3 inch
2шт.
9
1320928C1
ROD
- stand support
2шт.
12
M296
SPRING
- compression
2шт.
13
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
2шт.
14
432-812
COTTER PIN,3/4" OAL x 1/8" W
PIN, SPLIT (COTTER), 1/8" x 3/4"
2шт.
15
1305175C3
SUPPORT
BRACKET - reflector
2шт.
17
REF
INSTRUCTION
CYLINDER ASSEMBLY - lift, master, See Figure 8-16
1шт.
18
REF
INSTRUCTION
CYLINDER ASSEMBLY - lift, slave, See Figure 8-18
1шт.
23
439-5848
HEADED PIN,1/2" x 3", G5
PIN - headed, 1/2 x 3 inch
2шт.
24
413-812
BOLT,Hex, 1/2" - 13 x 3/4", Gr 5
- hex, 1/2 NC x 3/4 inch
2шт.
25
1320927C2
ROD
- cylinder adjusting
2шт.
26
480523R1
HAIR PIN COTTER
2шт.
27
396-11066
WASHER,0.66" ID x 1.31" OD x 0.1" Thk
- flat, 21/32 x 1-5/16 x 3/32 inch, hardened
2шт.
28
1316193C1
PLUG
- button
2шт.
29
128729A1
TUBE
- reel arm adjusting
2шт.
30
144672A2
SUPPORT
- lift cylinder, left-hand, with decal
1шт.
30
144673A2
SUPPORT
- lift cylinder, right-hand, with decal
1шт.
31
185067A1
DECAL
- Warning, avoid injury, always lock both reel lift cylinders
1шт.
32
128427A1
SPACER
- reel arm
2шт.
33
413-1272
BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5
- hex, 3/4 NC x 4-1/2 inch
2шт.
34
231-41112
LOCK NUT,3/4"-10, GB
NUT - hex, self-locking, 3/4 inch NC
2шт.
35
496-21081
WASHER,13/16" x 1 1/2" x .179", HDN
2шт.
36
128426A1
SPACER
- support
2шт.
37
413-1028
BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5
- hex, 5/8 NC x 1-3/4 inch
2шт.
38
231-41110
LOCK NUT,5/8"-11, GB
NUT - hex, self-locking, 5/8 inch NC
2шт.
39
496-41066
WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk
2шт.
Выбрано товаров: 32
