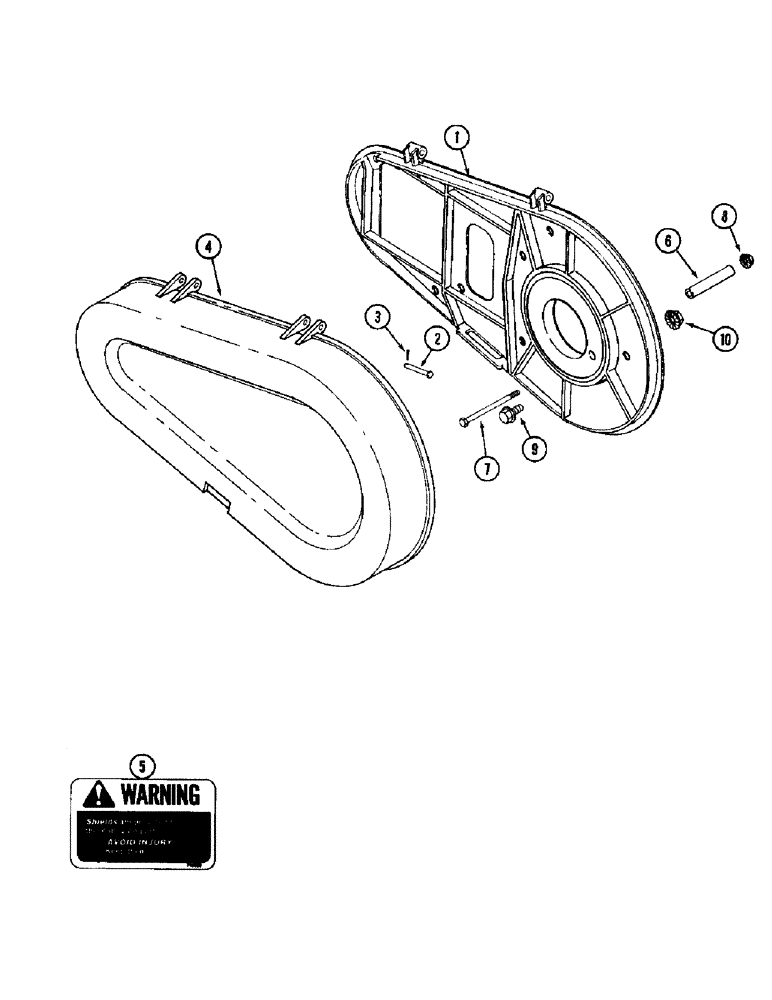

Запчасти Case IH 1020 (9A-24) - REEL DRIVE SHIELD (09) - CHASSIS/ATTACHMENTS

140214A2

HOUSING

SHIELD ASSEMBLY - reel drive (No longer available, order components), Includes: Ref. 1 - 5

1шт.

1

140216A2

SUPPORT

- reel drive shield

1шт.

2

439-1428

HEADED PIN,1/4" OD x 1-3/4" OAL, Gr 2

PIN - headed, 1/4 x 1-3/4 inch, grade 2

2шт.

3

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

4

140218A3

SHIELD

- reel drive (Replaces 140215A2), Includes: Ref. 5

1шт.

THE PARTS NOTES STATES: MUST USE SUPPORT 258981A1, SUPPORT 258980A1 AND LATCH 291944A1. CAN SEE IN LATER 1010 BOOKS. CNS/CAM 2/4/98

1шт.

5

144385A1

WARNING DECAL

DECAL, WARNING, Shields are, Serial Range: provided-guard

1шт.

6

465593R1

SPACER,12.5mm ID x 17.14mm OD x 63.5mm L

- mounting

1шт.

7

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

9

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.
