Запчасти Case IH 1020 (9A-22) - REEL DRIVE (09) - CHASSIS/ATTACHMENTS

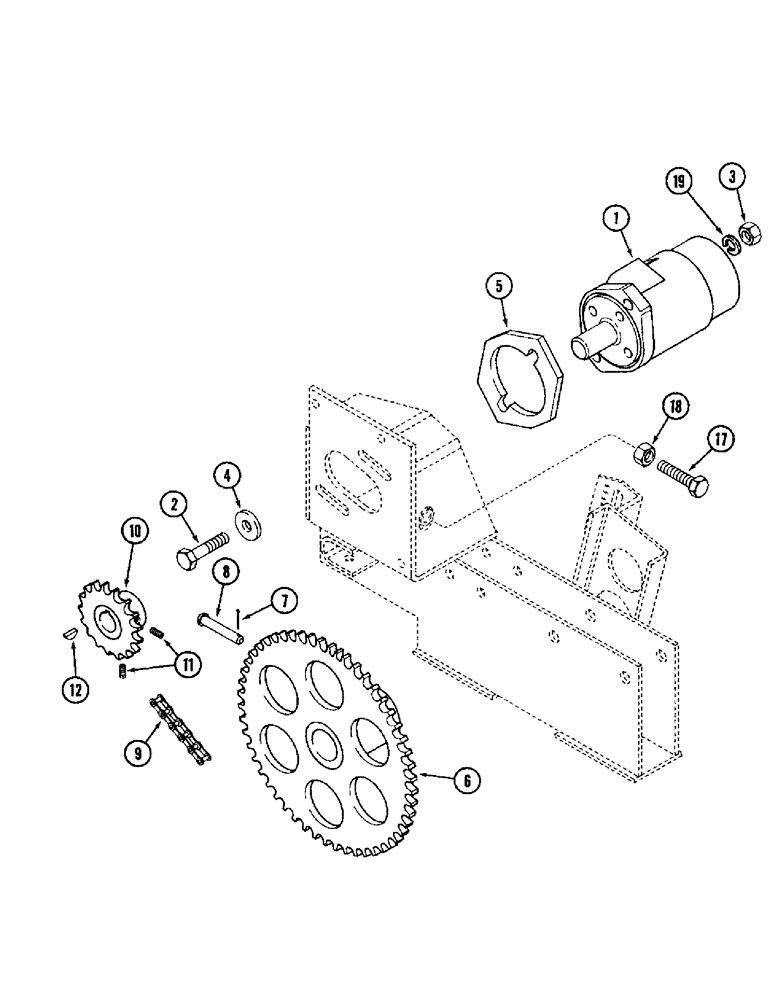

Схема запчастей Case IH 1020 - (9A-22) - REEL DRIVE (09) - CHASSIS/ATTACHMENTS
1
19
11
3
4
10
6
2
17
8
9
7
18
5
12

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MOTOR ASSEMBLY - reel drive, See Figure 8-12

1шт.

2

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

3

129-857

SQUARE NUT,Sq, 1/2"-13

- heavy square, 1/2 inch NC, grade 2

2шт.

4

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

2шт.

5

1308371C1

SHIM

- bar

1шт.

6

129973A2

SPROCKET

- driven, 51 tooth

1шт.

7

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

8

27-7278

CLEVIS PIN,7/16" x 2.781"

PIN - clevis, 7/16 x 2-25/32 inch, hardened

2шт.

9

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - reel drive (Use 67 links from bulk chain 1315D, 1 connecting link 241-1315, and 2 offset links 241-1715)

1шт.

10

129967A1

SPROCKET

- drive, 17 tooth

1шт.

11

484-1386

SET SCREW,Hex Soc, 3/8"-24 x 3/8"

SCREW - set, hex socket headless, 3/8 NF x 3/8 inch, cup point

2шт.

12

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

17

113-2663

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

- hex, full threads, 1/2 NC x 3 inch

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.
