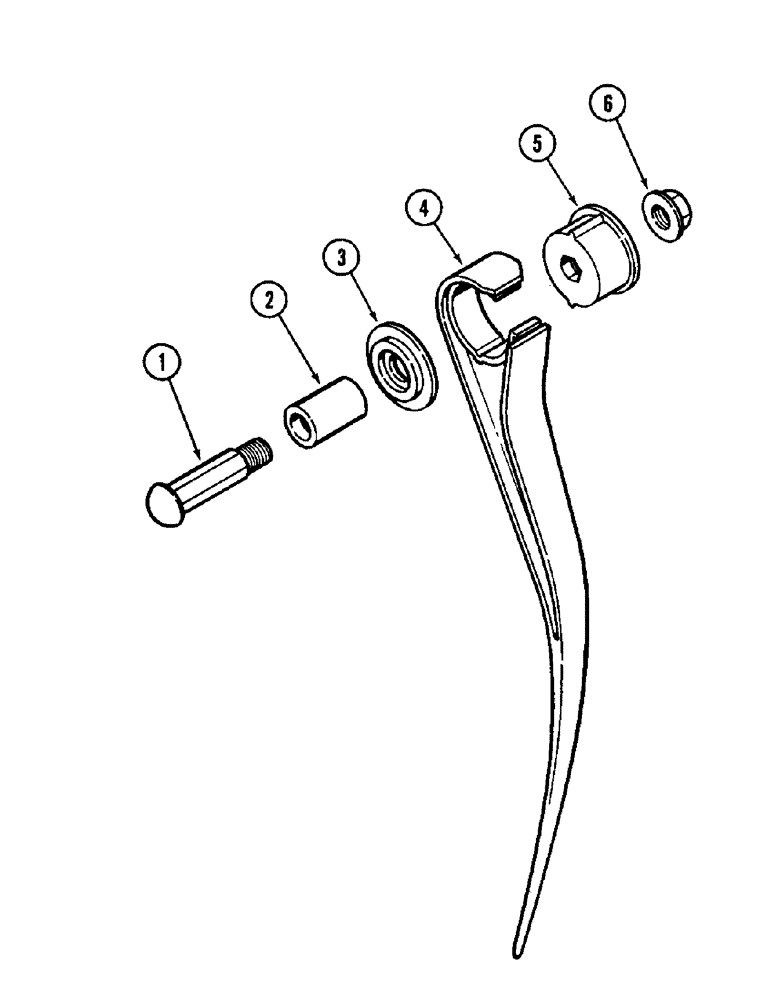

Запчасти Case IH 1020 (9A-20) - AUXILIARY PICKUP TINE, 6 BAT REEL WITH PLASTIC TINES (09) - CHASSIS/ATTACHMENTS

1970589C1

REEL TINE

TINE ASSEMBLY - auxiliary pickup, Includes: Ref. 2 - 6

1шт.

1

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

- round head hex shank, special, 1/2 NF x 2-1/2 inch

12шт.

2

598246R1

SPACER

- 9/16 ID x 1-1/4 inch

12шт.

3

1970591C1

RETAINER

- auxiliary tine

12шт.

4

1970590C1

TINE

- plastic, auxiliary

12шт.

5

1970592C1

SUPPORT

- auxiliary tine

12шт.

6

827386C1

FLANGE NUT

NUT - hex flange, self-locking, 1/2 inch NF

12шт.
