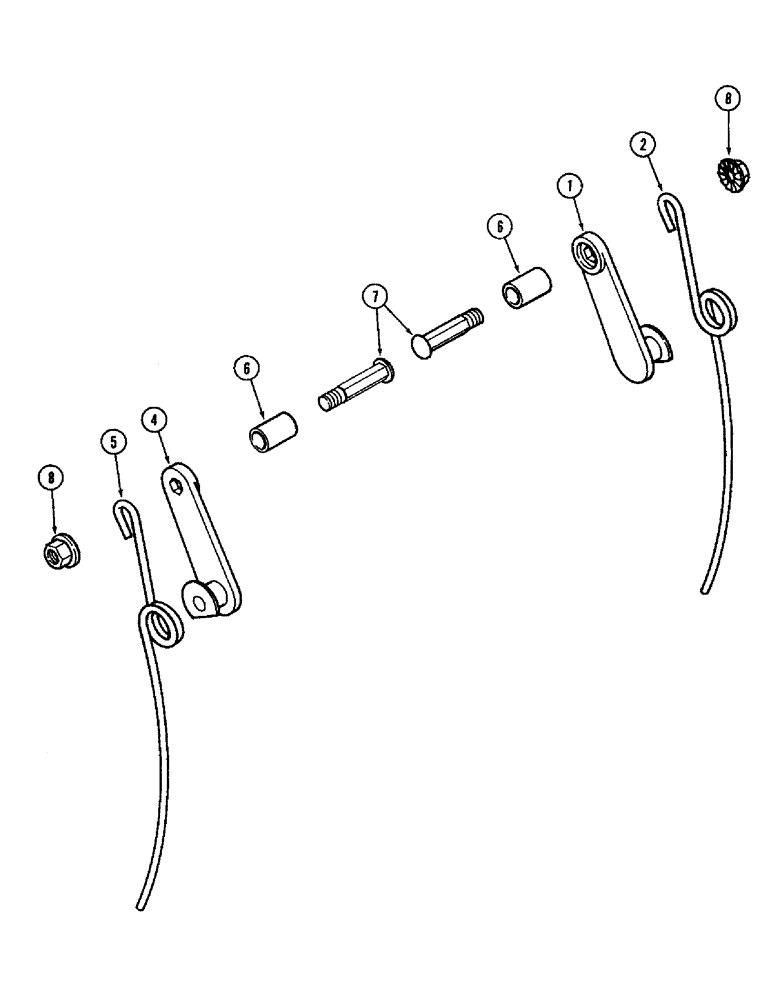

Запчасти Case IH 1020 (9A-18) - AUXILIARY PICKUP TINES, 6 BAT REEL WITH STEEL TINES (09) - CHASSIS/ATTACHMENTS

167605C91

TINE

ASSEMBLY - auxiliary pickup, left-hand, Includes: Ref. 1 & 2

6шт.

1

592627R21

STRAP

- finger

1шт.

2

167652C1

TINE,Coiled, 1 Prong, 437mm L

- left-hand

1шт.

167606C91

TINE

ASSEMBLY - auxiliary pickup, right-hand, Includes: Ref. 4 & 5

6шт.

4

592627R21

STRAP

- finger

1шт.

5

167651C1

TORSION SPRING

- right-hand

1шт.

6

598246R1

SPACER

- 9/16 ID x 1-1/4 inch

12шт.

7

827385C1

BOLT,Rnd Hd, Spcl Shank, 1/2" x 2 1/2"

- round head hex shank, special, 1/2 NF x 2-1/2 inch

12шт.

8

827386C1

FLANGE NUT

NUT - hex flange, self-locking, 1/2 inch NF

12шт.
