Запчасти Case IH 1020 (9A-16) - 6 BAT REEL, BAT AND PLASTIC TINES (09) - CHASSIS/ATTACHMENTS

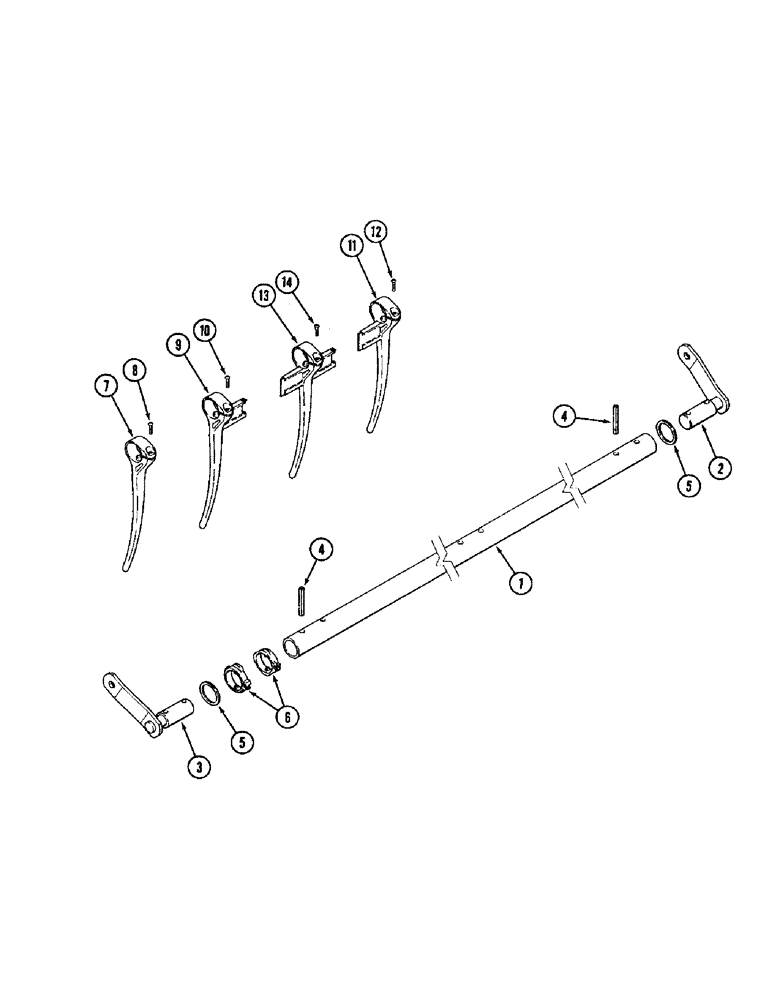

Схема запчастей Case IH 1020 - (9A-16) - 6 BAT REEL, BAT AND PLASTIC TINES (09) - CHASSIS/ATTACHMENTS
12
9
5
3
11
6
8
5
1
2
4
7
4
14
10
13

Артикул

Название

Примечание

Количество

1

1989429C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (15.0 foot)

6шт.

1

1989430C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (16.5 foot)

6шт.

1

1989431C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (17.5 foot)

6шт.

1

1994813C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (20.0 foot)

6шт.

1

1347080C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (22.5 foot)

6шт.

1

1347081C1

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (25.0 foot)

6шт.

1

1347082C2

SUPPORT TUBE,29.718 mm ID, 35.052 mm OD

TUBE - tine support (30.0 foot)

6шт.

2

1347094C1

BRACKET

- crank arm, left-hand

6шт.

3

1347095C1

ARM

BRACKET - crank arm, right-hand (Double eccentric)

6шт.

4

838-1840

LOCK PIN,8mm OD x 40mm L, Slotted

PIN - roll, 8 x 40 mm

1шт.

5

1989468C1

WASHER

- flat, special, 35.6 x 46 x 2.0 mm

1шт.

6

126748A1

THRUST WASHER

WASHER - thrust, plastic

1шт.

1989441C1

KIT

- tine, end, Includes: Ref. 7 & 8

1шт.

7

NSS

NOT SOLD SEPARAT

TINE - end

6шт.

8

126173A1

SELF-TAP SCREW

SCREW - hex washer head, slotted tap, special, 3.5 x 1.3 x 16 mm

6шт.

1989439C1

KIT

- tine, right-hand, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

TINE - right

6шт.

10

126173A1

SELF-TAP SCREW

SCREW - hex washer head, slotted tap, special, 3.5 x 1.3 x 16 mm

6шт.

1989440C1

KIT

- tine, left-hand, Includes: Ref. 11 & 12

1шт.

11

NSS

NOT SOLD SEPARAT

TINE - left

6шт.

12

126173A1

SELF-TAP SCREW

SCREW - hex washer head, slotted tap, special, 3.5 x 1.3 x 16 mm

6шт.

1989438C1

KIT

- tine, full, Includes: Ref. 13 & 14

1шт.

13

NSS

NOT SOLD SEPARAT

TINE - full

10шт.

14

126173A1

SELF-TAP SCREW

SCREW - hex washer head, slotted tap, special, 3.5 x 1.3 x 16 mm

10шт.

Выбрано товаров: 24
