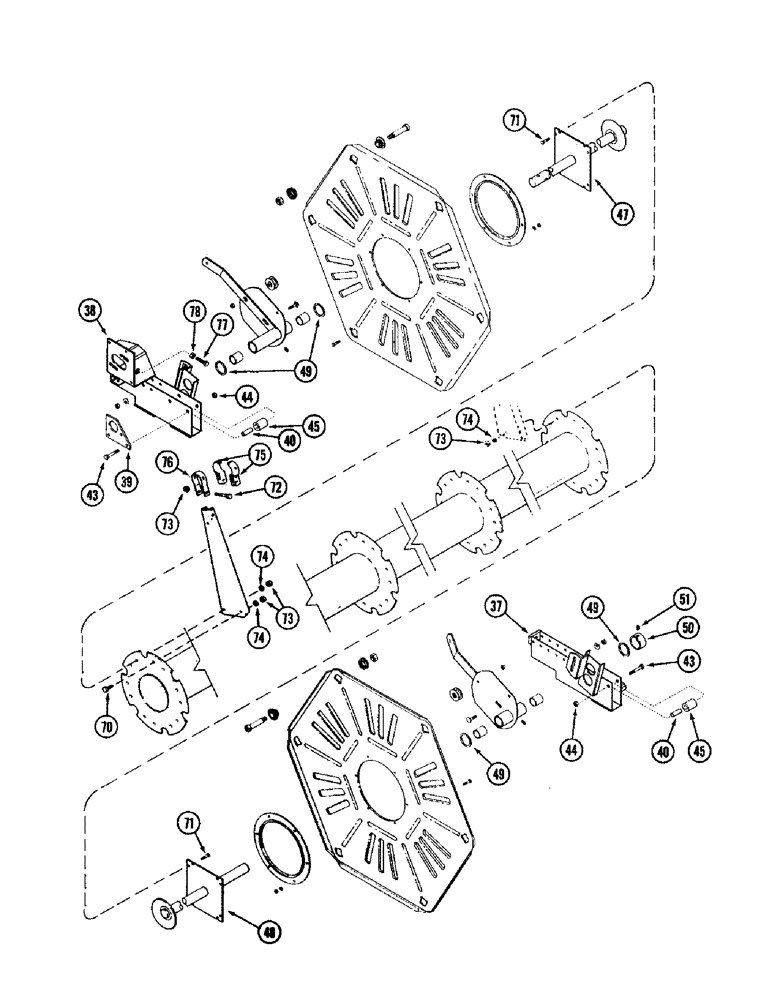

Запчасти Case IH 1020 (9A-14) - 6 BAT REEL, PLASTIC TINES, 22.5, 25.0 AND 30.0 FOOT HEADER (CONTD) (09) - CHASSIS/ATTACHMENTS

37

129996A1

SUPPORT

- reel, left-hand

1шт.

38

129997A1

SUPPORT

- reel, right-hand

1шт.

39

135113A1

SUPPORT

PLATE - support, outer

1шт.

40

23885K

SPACER,3/4" Tube x 2 1/16"

- 3/4 x 2-1/16 inch

4шт.

43

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

4шт.

44

832-46412

NUT,M12 x 1.75, Cl 8

NUT - self-locking, 12 mm - 1.75

4шт.

45

1316328C1

SHIFTER ROLLER

BUSHING - reel support

4шт.

47

1989428C1

SHAFT

- drive end

1шт.

48

1989425C1

SHAFT

- driven end

1шт.

49

495-81089

WASHER,1.66" ID x 2.25" OD x 0.12" Thk

- flat, 1-21/32 x 2-1/4 x 7/64 inch

4шт.

50

114943A1

COLLAR

- locking, Includes: Ref. 51

1шт.

51

878-1106

SET SCREW,Hex Skt, M10 x 6mm, Cup Pt

SCREW - set, hex socket headless cup point, 3/8 NF x 5/16 inch

2шт.

70

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

71

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

8шт.

72

614-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

- Hex, Full Threads, 10-1.5 x 50 mm

1шт.

73

832-41310

NUT,M10 x 1.5, Cl 10

NUT - hex, self-locking, 10 mm - 1.5, class 10

1шт.

74

892-11010

LOCK WASHER,M10

1шт.

75

1347084C1

CLAMP,50.8 mm ID x 25.4 mm

BEARING - reel arm

1шт.

76

1347085C1

STRAP

- bearing

1шт.

77

113-2663

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

- hex, full threads, 1/2 NC x 3 inch

1шт.

78

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.
