Запчасти Case IH 1020 (9A-08) - 6 BAT REEL, PLASTIC TINES, 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS

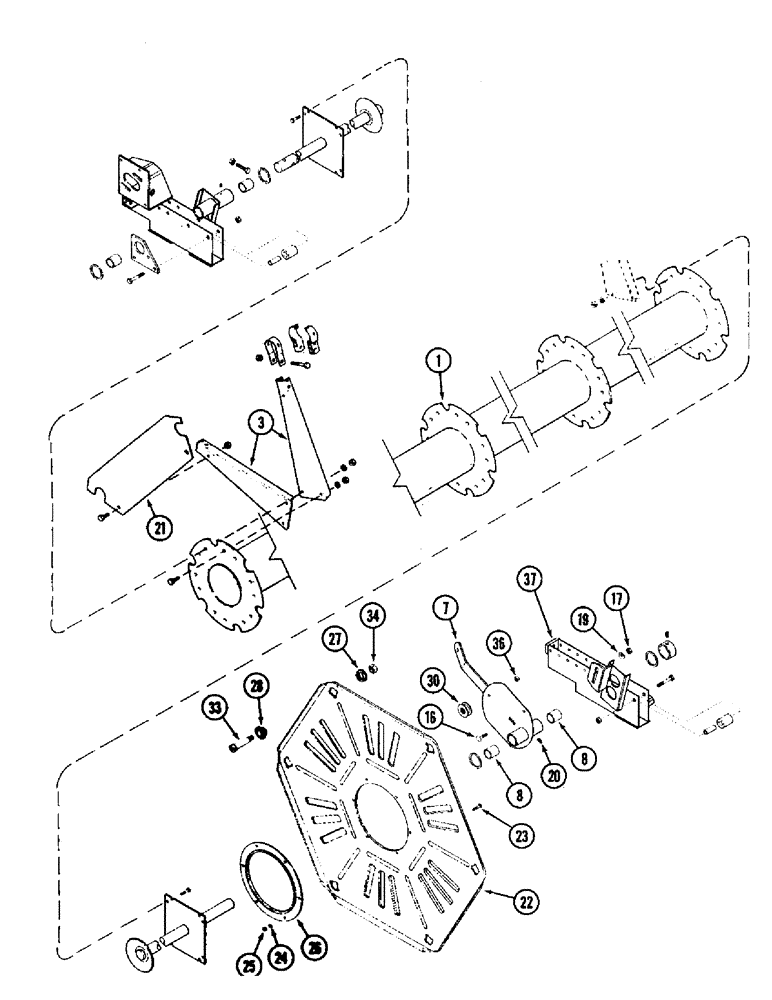

Схема запчастей Case IH 1020 - (9A-08) - 6 BAT REEL, PLASTIC TINES, 15.0, 16.5, 17.5 AND 20.0 FOOT HEADER (09) - CHASSIS/ATTACHMENTS
16
1
8
37
23
19
25
3
8
27
24
33
7
20
28
36
17
30
26
22
21
34

Артикул

Название

Примечание

Количество

1

1989399C1

SHAFT

- center tube (15.0 foot)

1шт.

1

1989400C1

SHAFT

- center tube (16.5 foot)

1шт.

1

1989401C1

SHAFT

- center tube (17.5 foot)

1шт.

1

1994811C1

SHAFT

- center tube (20.0 foot)

1шт.

3

1347083C1

ARM

- reel

1шт.

7

114938A1

BRACKET

HOUSING - eccentric roller, left-hand

1шт.

8

167666C1

BUSHING

- roller frame

2шт.

16

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

BOLT, CARRIAGE, M12 x 40, Cl8.8, Full Thd

1шт.

17

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

1шт.

19

114944A1

BELLEVILLE WASHER

WASHER - belleville, 12 mm

1шт.

20

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 1-1/4 inch

1шт.

21

1989433C2

SHIELD

- end

6шт.

175573A1

FLANGE

SHIELD ASSEMBLY - eccentric, includes shield 114940A1, bearings 114951A1 and 114952A1, Includes: Ref. 22

1шт.

22

114940A1

SHIELD

- eccentric

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

6шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

6шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

- control

1шт.

27

114951A1

BEARING,52.4 mm OD x 14.5 mm

CUP - tapered roller bearing (Female thread)

6шт.

28

114952A1

BEARING,52.4 mm OD x 25.7 mm

CONE - tapered roller bearing (Male thread)

6шт.

30

114941A1

BALL BEARING,38.23mm Idler Dia x 57.15mm OD x 44.5mm W

BEARING - roller

3шт.

33

114942A1

SCREW

BOLT - socket head, shoulder, special

6шт.

34

832-46412

NUT,M12 x 1.75, Cl 8

NUT - self-locking, 12 mm - 1.75

6шт.

36

832-46410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

3шт.

Выбрано товаров: 24
