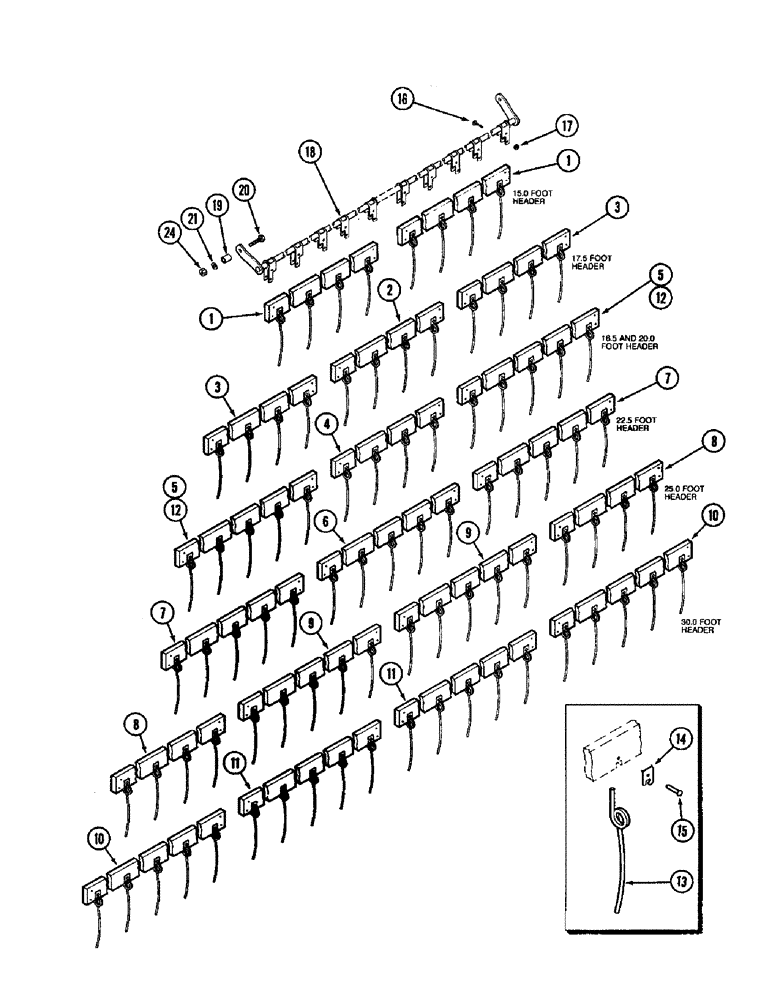

Запчасти Case IH 1020 (9A-06) - 6 BAT REEL, BAT AND STEEL TINE ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1

1326605C91

BAT

ASSEMBLY - with steel tines (15.0 foot), Includes: Ref. 13 - 15

12шт.

2

1316258C91

BAT

ASSEMBLY - with steel tines (17.5 foot), Includes: Ref. 13 - 15

6шт.

3

1316259C91

BAT

ASSEMBLY - with steel tines (17.5 foot), Includes: Ref. 13 - 15

12шт.

4

1316259C91

BAT

ASSEMBLY - with steel tines (16.5 and 20.0 foot), Includes: Ref. 13 - 15

6шт.

5

1316260C91

BAT

ASSEMBLY - with steel tines (20.0 foot), Includes: Ref. 13 - 15

12шт.

6

1316265C91

BAT

ASSEMBLY - with steel tines (22.5 foot), Includes: Ref. 13 - 15

6шт.

7

185864C91

BAT

ASSEMBLY - with steel tines (22.5 foot), Includes: Ref. 13 - 15

12шт.

8

598170R91

BAT

ASSEMBLY - with steel tines (25.0 foot), Includes: Ref. 13 - 15

12шт.

9

167676C91

BAT

ASSEMBLY - with steel tines (25.0 foot), Includes: Ref. 13 - 15

12шт.

10

1316264C91

BAT

ASSEMBLY - with steel tines (30.0 foot), Includes: Ref. 13 - 15

12шт.

11

1316265C91

BAT

ASSEMBLY - with steel tines (30.0 foot), Includes: Ref. 13 - 15

12шт.

12

598188R91

BAT

ASSEMBLY - with steel tines (16.5 foot), Includes: Ref. 13 - 15

12шт.

13

598171R1

TINE,Coiled, 1 Prong, 283mm L

- steel

1шт.

14

592616R1

CLIP

- tine

1шт.

15

23055R1

RIVET,Tr Hd, 3/16" x 1"

- 3/16 x 1 inch, truss-head semi-tubular

1шт.

16

412-422

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 1 3/8", Gr 2

BOLT - carriage, 1/4 NC x 1-3/8 inch, grade 2

1шт.

17

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

1шт.

18

1326604C1

SHAFT

- bat (15.0 foot)

6шт.

18

1326842C1

SHAFT

- bat (16.5 foot)

6шт.

18

1316267C1

SHAFT

- bat (17.5 foot)

6шт.

18

1316268C1

SHAFT

- bat (20.0 foot)

6шт.

18

1316269C1

SHAFT

- bat (22.5 foot)

6шт.

18

1316270C1

SHAFT

- bat (25.0 foot)

6шт.

18

1316271C1

SHAFT

- bat (30.0 foot)

6шт.

19

1316568C1

SPACER

BUSHING - (52 inch reel)

12шт.

20

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

(52 inch reel) Hex, 1/2"-13 x 2", G5

12шт.

21

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch (52 inch reel)

12шт.

24

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC (52 inch reel)

12шт.
