Запчасти Case IH 1020 (9A-02) - 6 BAT REEL, STEEL TINES (09) - CHASSIS/ATTACHMENTS

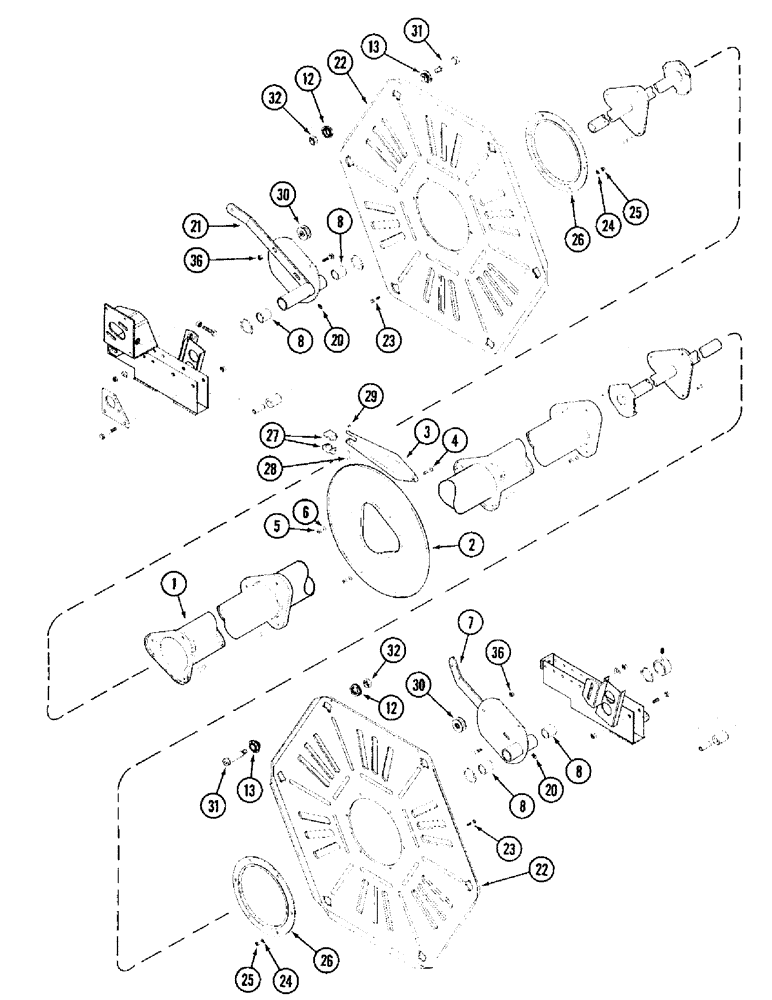

Схема запчастей Case IH 1020 - (9A-02) - 6 BAT REEL, STEEL TINES (09) - CHASSIS/ATTACHMENTS
6
23
26
25
30
24
36
22
25
24
8
29
30
32
4
13
8
2
31
26
36
3
8
22
13
20
1
27
12
12
7
5
21
8
32
28
31
23
20

Артикул

Название

Примечание

Количество

1

1326602C1

SHAFT

- center (15.0 foot)

1шт.

1

1326838C1

SHAFT

- center (16.5 foot)

1шт.

1

1316273C1

SHAFT

- center (17.5 foot)

1шт.

1

1316274C1

SHAFT

- center (20.0 foot)

1шт.

1

1316275C1

SHAFT

- center (22.5 foot)

1шт.

1

1316276C1

SHAFT

- center (25.0 foot)

1шт.

1

1316277C1

SHAFT

- center (30.0 foot)

1шт.

2

167653C1

PLATE

- reel arm (15.0, 16.5 and 17.5 foot)

1шт.

2

180248C1

PLATE

- reel arm (20.0, 22.5, 25.0 and 30.0 foot)

1шт.

3

1326650C1

ARM

- reel

1шт.

4

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

5

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

114938A1

BRACKET

HOUSING - eccentric roller, left-hand

1шт.

8

167666C1

BUSHING

- roller frame

4шт.

12

114951A1

BEARING,52.4 mm OD x 14.5 mm

CUP - tapered roller bearing (Female thread)

12шт.

13

114952A1

BEARING,52.4 mm OD x 25.7 mm

CONE - tapered roller bearing (Male thread)

12шт.

20

219-3

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 1-1/4 inch

2шт.

21

175571A2

HOUSING

- eccentric roller, right-hand

1шт.

175573A1

FLANGE

SHIELD ASSEMBLY - eccentric, includes shield 114940A1, bearings 114951A1 and 114952A1

1шт.

22

114940A1

SHIELD

- eccentric

2шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

12шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

12шт.

26

167661C1

RING,271.65mm ID x 320.68mm OD

- control

2шт.

27

1326656C1

BEARING

BUSHING - reel arm

1шт.

28

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

29

231-4144

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

30

114941A1

BALL BEARING,38.23mm Idler Dia x 57.15mm OD x 44.5mm W

BEARING - roller

6шт.

ref 30: 114941a1 BOLT IS NSS. IS MADE INTO ROLLER BEARING. (m10 x 1.5-6g bolt)

1шт.

31

114942A1

SCREW

BOLT - socket head, shoulder, special

12шт.

32

832-46412

NUT,M12 x 1.75, Cl 8

NUT - self-locking, 12 mm - 1.75

12шт.

36

832-46410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

6шт.

Выбрано товаров: 33
