Запчасти Case IH 1020 (8-32) - REEL DRIVE PUMP (08) - HYDRAULICS

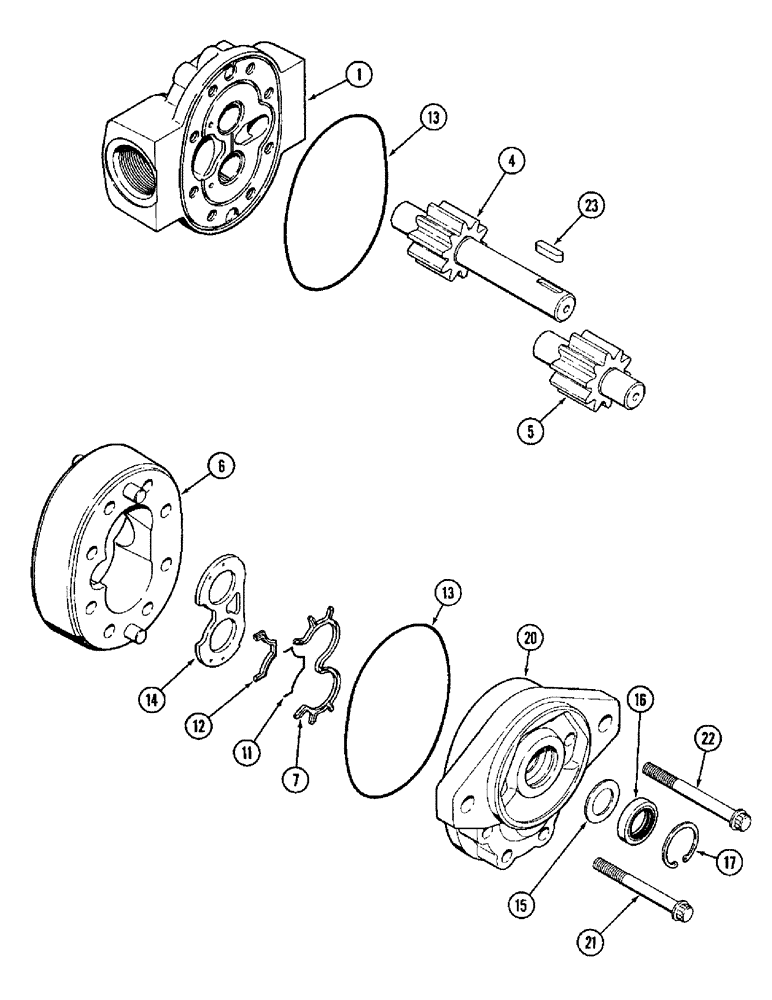

Схема запчастей Case IH 1020 - (8-32) - REEL DRIVE PUMP (08) - HYDRAULICS
7
1
21
4
22
15
5
13
11
14
6
20
16
13
12
17
23

Артикул

Название

Примечание

Количество

1272633C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, new, Includes: Ref. 1 - 23

1шт.

1949288C1

REMAN-HYD PUMP

PUMP ASSEMBLY - reel drive, remanufactured, North America only, component parts shown on this page do not apply to the remanufactured assembly, Includes: Ref. 1 - 23

1шт.

1949289C1

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this number to return pump core for credit when using a remanufactured assembly

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - drive

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - idler

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

92586C1

SEAL KIT

KIT - seal repair, seal, Includes: Ref. 7 - 17

1шт.

7

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

11

NSS

NOT SOLD SEPARAT

O-RING - backup

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

13

238-6159

O-RING,0.103" Thk x 4.977" ID, -159, Cl 6, 90 Duro

2шт.

14

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - special

1шт.

16

A25139

SEAL,22.22mm ID x 35.08mm OD x 6.91mm Thk

- shaft

1шт.

17

100-21137

SNAP RING,1.375", Int, #137

Ring, Snap, 1.375", Int, #137

1шт.

20

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

21

166-55

12 PT SCREW,Flg, 3/8" - 16 x 3 1/2", Gr 8

BOLT - 12 point, 3/8 NC x 3-1/2 inch grade 8

4шт.

22

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

BOLT - 12 point flange, 3/8 NC x 3-3/4 inch, grade 8

4шт.

23

H233445

KEY

- pump shaft

1шт.

Выбрано товаров: 20
