Запчасти Case IH 1020 (8-28) - REEL DRIVE SYSTEM, 1440E, 1460E AND 1480E COMBINE (CONTD) (08) - HYDRAULICS

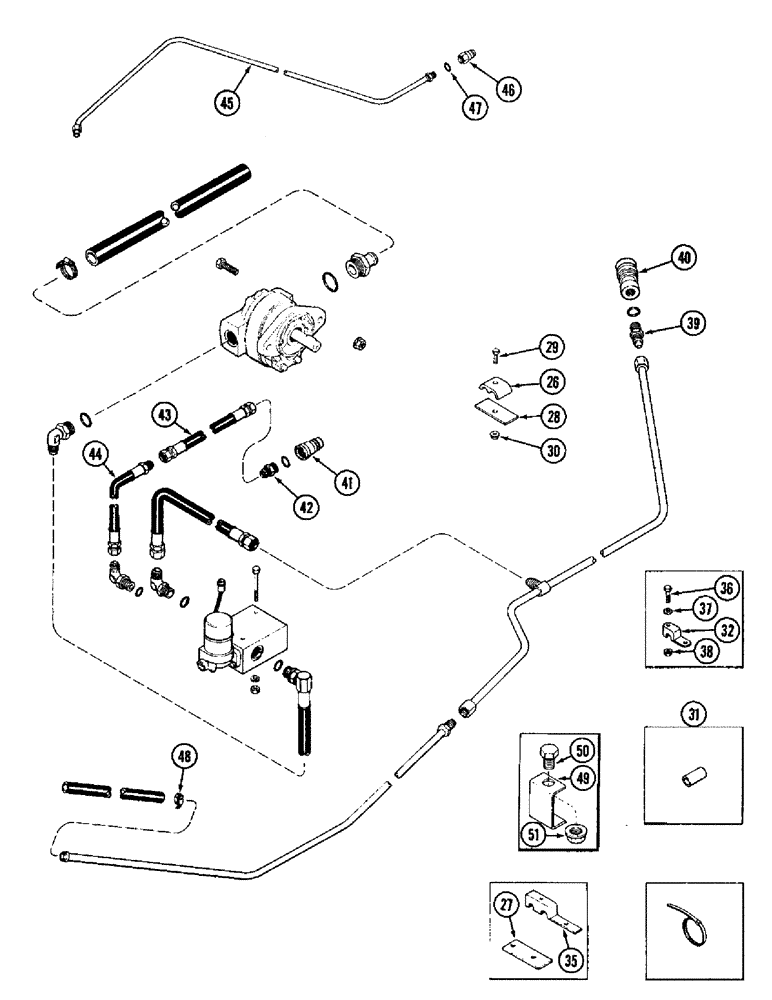

Схема запчастей Case IH 1020 - (8-28) - REEL DRIVE SYSTEM, 1440E, 1460E AND 1480E COMBINE (CONTD) (08) - HYDRAULICS
35
43
45
26
29
44
46
40
27
42
41
47
36
51
50
28
38
31
39
49
37
48
32
30

Артикул

Название

Примечание

Количество

26

165601C1

CLAMP

- reservoir drain tube, retaining, 13/32 inch diameter hole

1шт.

26

165602C1

CLAMP

- retaining, 11/32 inch diameter hole

1шт.

27

196868C2

SUPPORT

PLATE - support, tube

1шт.

1440E Combine with 47 inch feeder.

1шт.

1460E Combine with 47 inch feeder.

1шт.

1460E Combine with 54.5 inch feeder.

1шт.

28

573186R1

PLATE

BAR - support, tube

1шт.

1480E Combine with 54.5 inch feeder.

1шт.

29

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

29

424-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 2

- hex, 3/8 NC x 1-3/4 inch, grade 2

1шт.

30

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

30

231-5146

FLANGE NUT,3/8"-16

1шт.

31

163490C1

RUBBER INSULATOR

INSULATOR - rubber, 3/8 ID x 1-13/64 inch long, tube clamp

1шт.

31

163491C1

RUBBER INSULATOR

INSULATOR - rubber, 1/2 ID x 1-13/64 inch long, tube clamp

1шт.

31

163492C1

RUBBER INSULATOR

INSULATOR - rubber, 5/8 ID x 1-13/64 inch long, tube clamp

1шт.

32

183821C1

CLAMP

- tube, single, 3/8 inch OD tube

1шт.

32

183822C1

CLAMP

- tube, single, 5/8 inch OD tube

1шт.

35

121714C1

CLAMP

- header lift tubes, tube, double, 3/4 and 5/8 inch OD tube

1шт.

36

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

1шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

38

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

1шт.

39

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss

1шт.

40

395150R91

COUPLING, QUICK, FEM

COUPLING - self sealing, female (Alternate with A177478)

1шт.

40

A177478

COUPLING, QUICK, FEM

COUPLING - self-sealing, female (Alternate with 395150R91)

1шт.

41

395149R1

QUICK MALE COUPLING

COUPLER - male, 7/8 inch NF (Alternate with 1272399C2)

1шт.

41

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF (Alternate with 395149R1)

1шт.

42

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

43

196878C1

HOSE

- 1422 mm (56 inch) long, hydraulic, 3/8 ID

1шт.

1440E Combine with 47 inch feeder.

1шт.

1460E Combine with 47 inch feeder.

1шт.

43

179411C1

HOSE

- 1549 mm (61 inch) long, hydraulic, 3/8 ID

1шт.

1480E Combine with 54.5 inch feeder.

1шт.

1460E Combine with 54.5 inch feeder.

1шт.

44

1317169C1

HOSE

- 686 mm (27 inch) long, hydraulic, 3/8 ID

1шт.

45

1312410C1

HYD TUBE

TUBE - reel lift

1шт.

1440E Combine with 47 inch feeder.

1шт.

1460E Combine with 47 inch feeder.

1шт.

1460E Combine with 54.5 inch feeder.

1шт.

46

187562C1

QUICK MALE COUPLING

COUPLING - male, 9/16 NF inch

1шт.

48

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

49

1312409C1

SUPPORT

- pipe

1шт.

50

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

51

825-51410

FLANGE NUT,M10, Flg Ser

- hex serrated flange, 10 mm - 1.5

1шт.

36

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

1шт.

47

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 45
