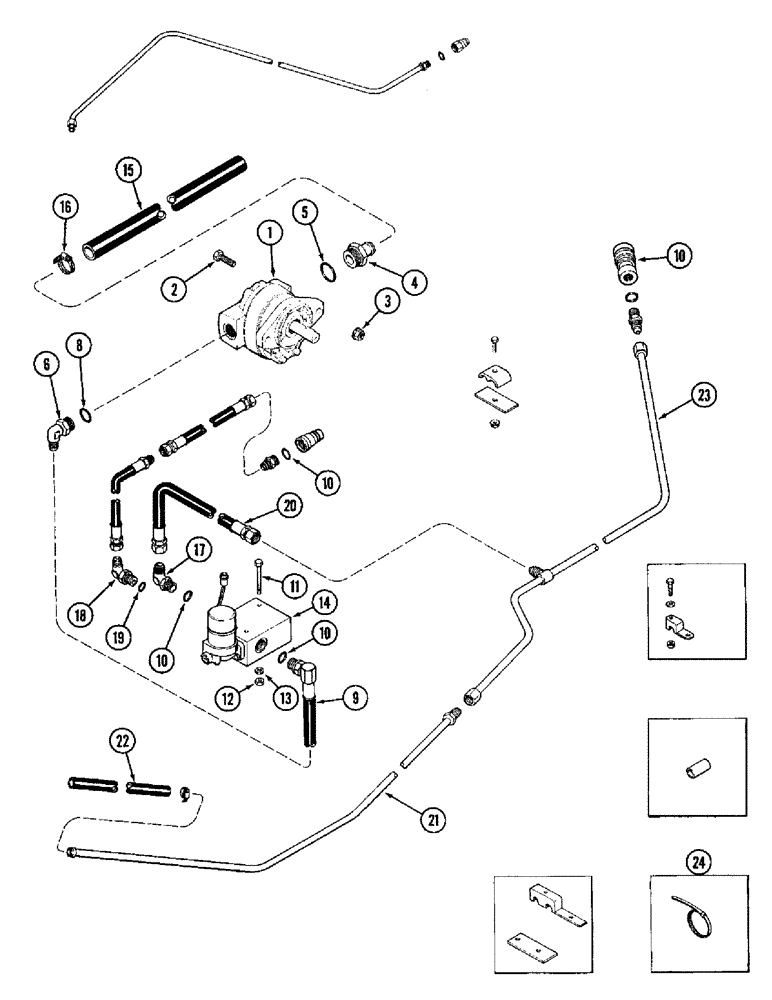

Запчасти Case IH 1020 (8-26) - REEL DRIVE SYSTEM, 1440E, 1460E AND 1480E COMBINE (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - reel drive, See Figure 8-32

1шт.

2

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

2шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

4

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

5

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

6

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj O-ring boss

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

9

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- pump pressure, 900 mm (35 inch) long, hydraulic, 1/2 ID

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch

2шт.

12

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive, See Figure 8-30

1шт.

15

198303C1

HYDRAULIC HOSE,1.00" ID x 40.00", SAE 100R4 Class 4

Reel Drive Suction, Cut From Bulk 1.00" ID x 40.00", SAE 100R4 Class 4

1шт.

16

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

CLAMP, HOSE, , Adj. #16, 0.81/1.50 Type F Worm

2шт.

17

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss

1шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

1317073C1

HOSE

- 635 mm (25 inch) long, hydraulic, 1/2 ID

1шт.

21

196746C1

HYD TUBE

TUBE - reel drive return

1шт.

1440E Combine.

1шт.

1460E Combine.

1шт.

21

187830C1

HYD TUBE

TUBE - reel drive return

1шт.

1480E Combine.

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - return, 24 inch (Order S118576 and, Serial Range: cut-length)

1шт.

23

1312411C1

HYD TUBE

TUBE - reel drive return

1шт.

1440E Combine.

1шт.

1460E Combine.

1шт.

23

1325306C1

HYD TUBE,16 mm Diameter, 1570, 135 mm Length

TUBE - reel drive return

1шт.

1480E Combine.

1шт.

24

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch, nylon

1шт.
