Запчасти Case IH 1020 (8-24) - DOUBLE PILOTED VALVE ASSEMBLY, REEL FORE AND AFT ATTACHMENT (08) - HYDRAULICS

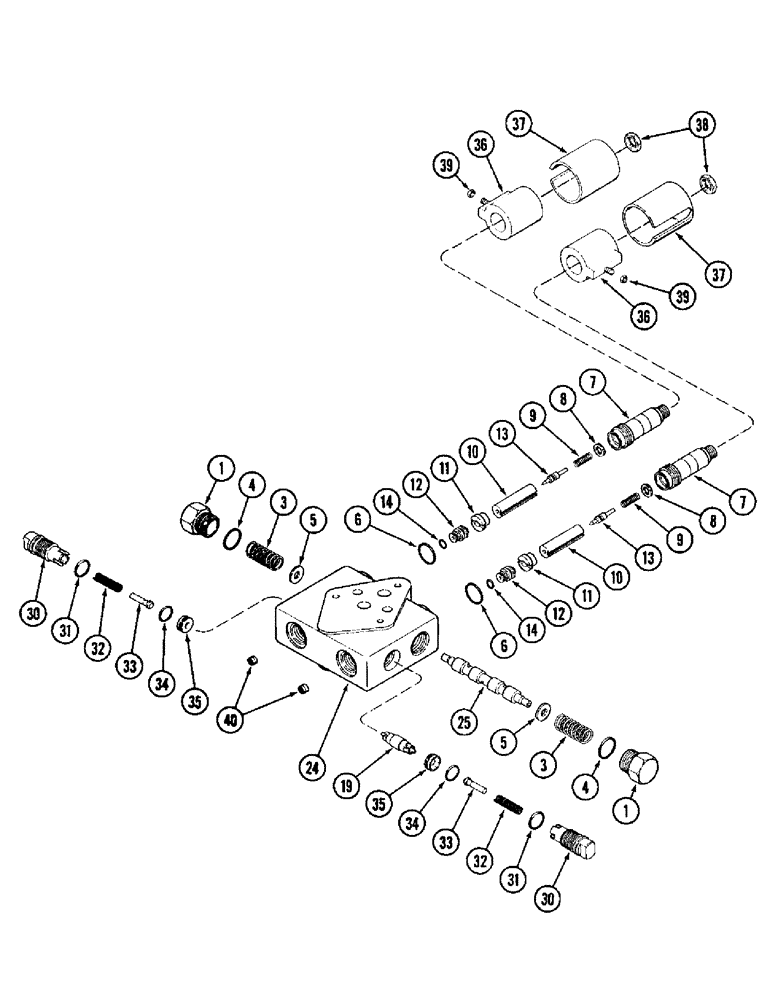

Схема запчастей Case IH 1020 - (8-24) - DOUBLE PILOTED VALVE ASSEMBLY, REEL FORE AND AFT ATTACHMENT (08) - HYDRAULICS
37
34
19
5
12
38
14
39
24
7
6
13
13
7
33
36
35
9
32
4
10
8
39
14
36
9
4
31
1
3
37
35
34
10
33
11
8
31
5
32
6
11
30
3
40
12
30
1
25

Артикул

Название

Примечание

Количество

124857A1

VALVE

ASSEMBLY - double piloted, Includes: Ref. 1 - 40

1шт.

1

100475A1

PLUG

- end cap

2шт.

3

100474A1

SPRING

- centering

2шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

Part of valve seal kit P/N 1282278C2

1шт.

5

1301687C1

WASHER

- spring

2шт.

6

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

2шт.

Part of valve seal kit P/N 1282278C2

1шт.

7

1301627C3

SLEEVE

- poppet

2шт.

8

1301624C1

BUSHING

- poppet

2шт.

9

1301640C1

SPRING

- poppet

2шт.

10

1301648C1

ARMATURE

- valve, poppet

2шт.

11

1301624C1

BUSHING

- poppet, pole

2шт.

12

1301625C1

ORIFICE

- valve

2шт.

13

110550A1

VALVE POPPET

POPPET - valve

2шт.

14

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

Part of valve seal kit P/N 1282278C2

1шт.

19

124777A1

SPOOL

- shuttle

1шт.

24

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

25

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

30

124775A1

CAP

BODY - check valve, end cap

1шт.

31

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

Part of valve seal kit P/N 1282278C2

1шт.

32

1272887C1

SPRING

- poppet, spool

1шт.

33

124771A1

VALVE POPPET

POPPET - valve, spool

1шт.

34

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

Part of valve seal kit P/N 1282278C2

1шт.

35

1267163C1

WASHER

- valve

1шт.

36

1301633C1

COIL

- valve

2шт.

37

1301632C1

CAP

COVER - coil

2шт.

38

107825

NUT,Stamped, 1/2"-20

- hex, 1/2 inch NF, stamped

2шт.

39

225-20210

NUT,#10-32, Brass

2шт.

40

1301637C1

ORIFICE

- valve

2шт.

1282278C2

SEAL KIT

KIT - valve seal, Includes: Ref. 4, 6, 14, 31 and 34

1шт.

Выбрано товаров: 34
