Запчасти Case IH 1020 (8-14) - REEL FORE AND AFT CYLINDER (08) - HYDRAULICS

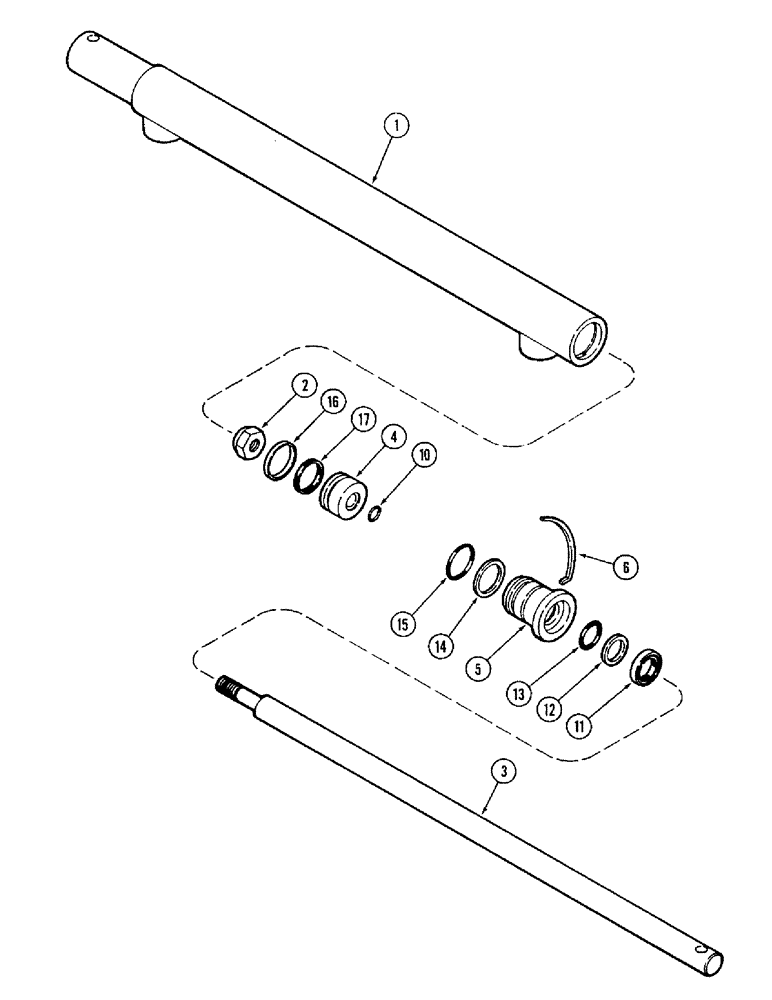

Схема запчастей Case IH 1020 - (8-14) - REEL FORE AND AFT CYLINDER (08) - HYDRAULICS
5
4
11
15
1
10
12
17
14
6
2
3
13
16

Артикул

Название

Примечание

Количество

1282012C93

CYLINDER,Double Acting, 18.97mm Rod, 330.2mm Stroke

ASSEMBLY - 32 (1-1/2) ID x 330 mm (13 inch) stroke, hydraulic, fore and aft, Includes: Ref. 1 - 17

2шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

232-4617

LOCK NUT,7/16"-20, GC

NUT, LOCK, 7/16"-20, GC

1шт.

3

1282016C1

ROD

- piston

1шт.

4

1282017C2

PISTON

- cylinder

1шт.

5

108996C1

CYLINDER HEAD

GLAND - cylinder, front

1шт.

62240C92

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 6 - 17

1шт.

6

547549R1

WIRE

RING - retaining, front head

1шт.

10

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

11

108999C1

WIPER SEAL

WIPER - rod

1шт.

12

108997C1

WASHER

RING - backup

1шт.

13

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

14

108998C1

WASHER

RING - backup

1шт.

15

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

16

532529R2

SEALING RING,29.057mm ID x 32.36mm OD x 3.17mm Thk

RING - quad

1шт.

17

239-5119

O-RING,Square, 0.094" Thk x 0.938" ID, -119, Cl 5, 75 Duro

SEAL - quad, 15/16 ID x 3/32 inch

1шт.

Выбрано товаров: 16
