Запчасти Case IH 1020 (8-02) - REEL DRIVE MOTOR SYSTEM (08) - HYDRAULICS

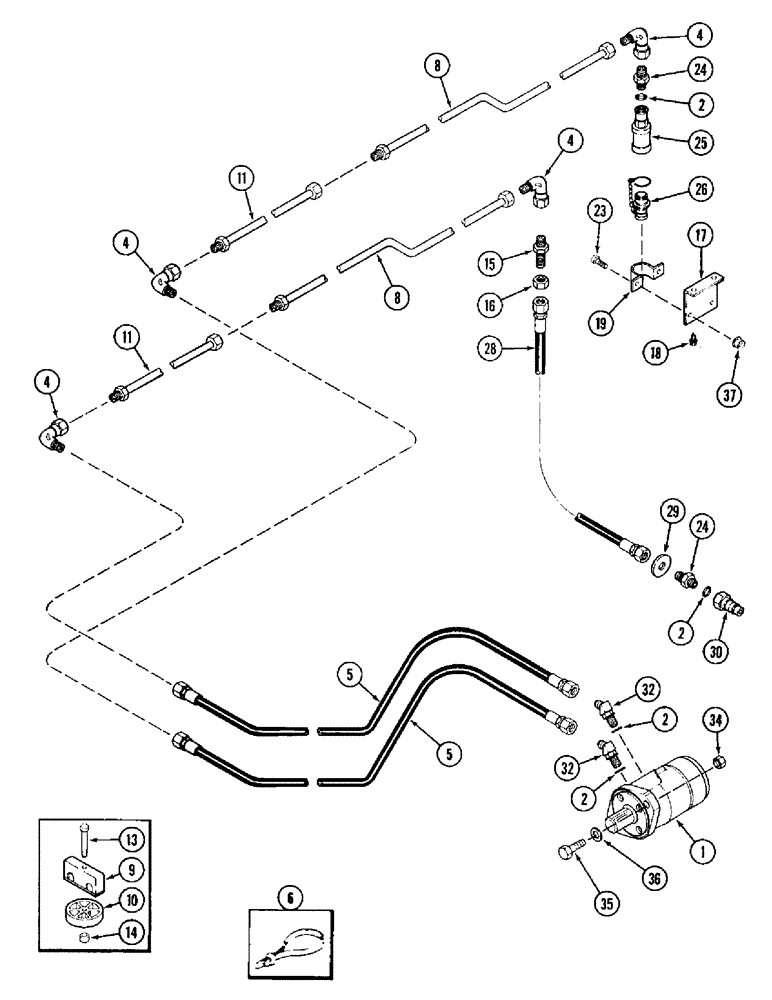

Схема запчастей Case IH 1020 - (8-02) - REEL DRIVE MOTOR SYSTEM (08) - HYDRAULICS
4
24
34
4
28
17
30
32
18
26
25
23
11
24
2
32
2
9
29
15
19
4
8
6
14
16
8
5
11
2
36
30
35
1
5
37
2
13
4

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

MOTOR ASSEMBLY - hydraulic, reel drive, See Figure 8-12

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

4шт.

4

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel

4шт.

5

131057A1

HOSE

- 1270 mm (50 inch) long, hydraulic, 3/8 ID (Pick-up reel)

2шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

8

1338406C1

TUBE,0.5" OD, 2820 mm Length

- reel drive

2шт.

9

1301178C1

CLAMP

- tube

1шт.

10

1326572C1

SPACER

- 10 mm

1шт.

11

1338408C1

TUBE,0.5" OD, 563 mm Length

- reel drive (15.0 foot)

2шт.

11

1338409C1

TUBE,0.5" OD, 791 mm Length

- reel drive (16.5 foot)

2шт.

11

1316443C1

TUBE,0.5" OD, 943 mm Length

- reel drive (17.5 foot)

2шт.

11

1338410C1

TUBE,0.5" OD, 1324 mm Length

- reel drive (20.0 foot)

2шт.

11

1338411C1

TUBE,0.5" OD, 1705 mm Length

- reel drive (22.5 foot)

2шт.

11

1338412C1

TUBE,0.5" OD, 2086 mm Length

- reel drive (25.0 foot)

2шт.

11

1338413C1

TUBE,0.5" OD, 2848 mm Length

- reel drive (30.0 foot)

2шт.

13

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

14

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

1шт.

15

218-674

FITTING,Blkhd, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree

ADAPTER - straight, 3/4-16 inch flare x bulkhead flare

1шт.

16

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

17

1316779C1

SUPPORT

ANGLE - quick disconnect support

1шт.

18

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

SCREW - self-tapping, hex washer head, 5/16 NC x 3/4 inch

2шт.

19

1321398C1

CLAMP

- quick disconnect

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

24

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

25

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch

1шт.

26

1954133C1

PLUG

PLUG - coupling, dust

1шт.

28

1316829C1

HOSE

- 965 mm (38 inch) long, hydraulic, 3/8 ID

1шт.

29

1345266C1

WASHER

- lock, white, special

1шт.

30

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

32

218-5146

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 45 degree, 3/4-16 flare x 7/8-14 inch adj O-ring

2шт.

34

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

35

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

If used Hex, 1/2"-13 x 1 3/4", G5

2шт.

36

396-21053

WASHER,17/32" x 1 1/16" x .134"

Hardened 17/32" x 1 1/16" x .134"

2шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.
