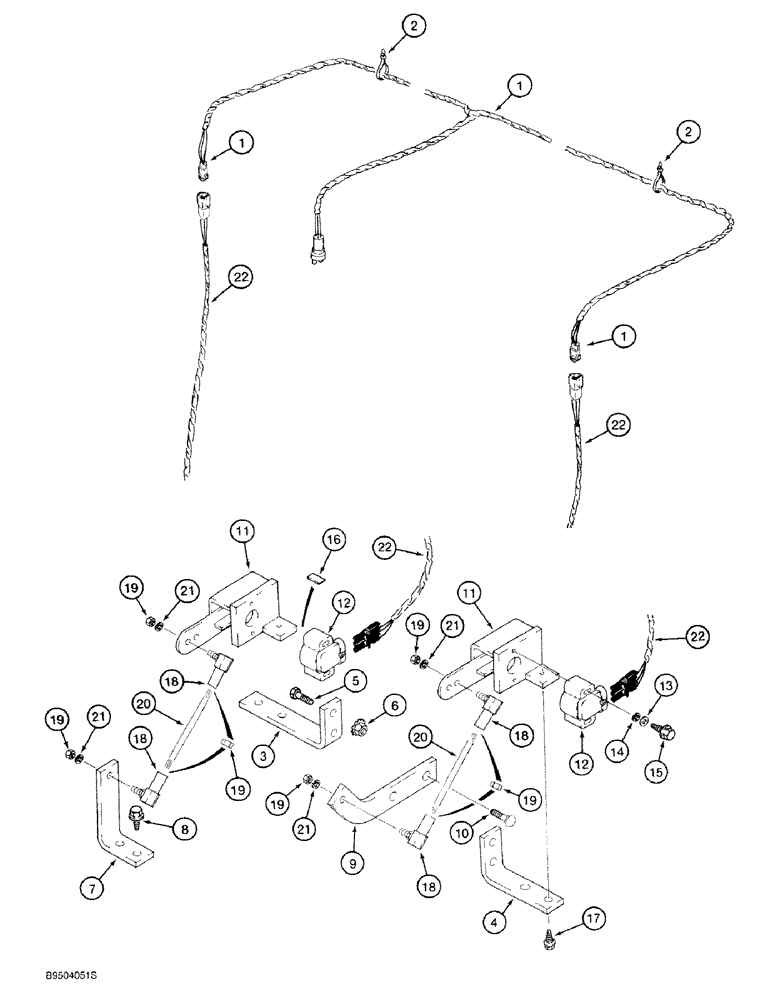

Запчасти Case IH 1020 (04-07) - HEADER HARNESS (04) - ELECTRICAL SYSTEMS

1

100278A1

HARNESS

1шт.

2

702093C1

CABLE TIE

CABLE STRAP STRAP

1шт.

3

189388A1

SUPPORT

Upper Left Hand

1шт.

4

189390A1

SUPPORT

Upper Right Hand

1шт.

5

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

6

145458

SERRATED NUT,5/16"-18 GR 5 ZND

4шт.

7

189392A1

SUPPORT

Lower Left Hand

1шт.

8

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

2шт.

9

189394A1

SUPPORT

Lower Right Hand

1шт.

10

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

11

189398A1

SUPPORT

2шт.

12

126771A1

POTENTIOMETER,4000 Ohm

4K

2шт.

13

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

4шт.

14

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

4шт.

15

463-31020

SCREW,Hex Wash Hd, #10-24 x 1 1/4"

4шт.

16

189728A1

LEVER

2шт.

17

281-14812

SELF-TAP SCREW,Hex Washer, 5/16" - 18 x 3/4"

4шт.

18

100282A1

BALL JOINT

1/4"

4шт.

19

86509309

NUT,1/4"-28, G5

8шт.

20

100281A1

STUD

2шт.

21

80682

LOCK WASHER,1/4"

4шт.

22

126768A1

HARNESS

2шт.
