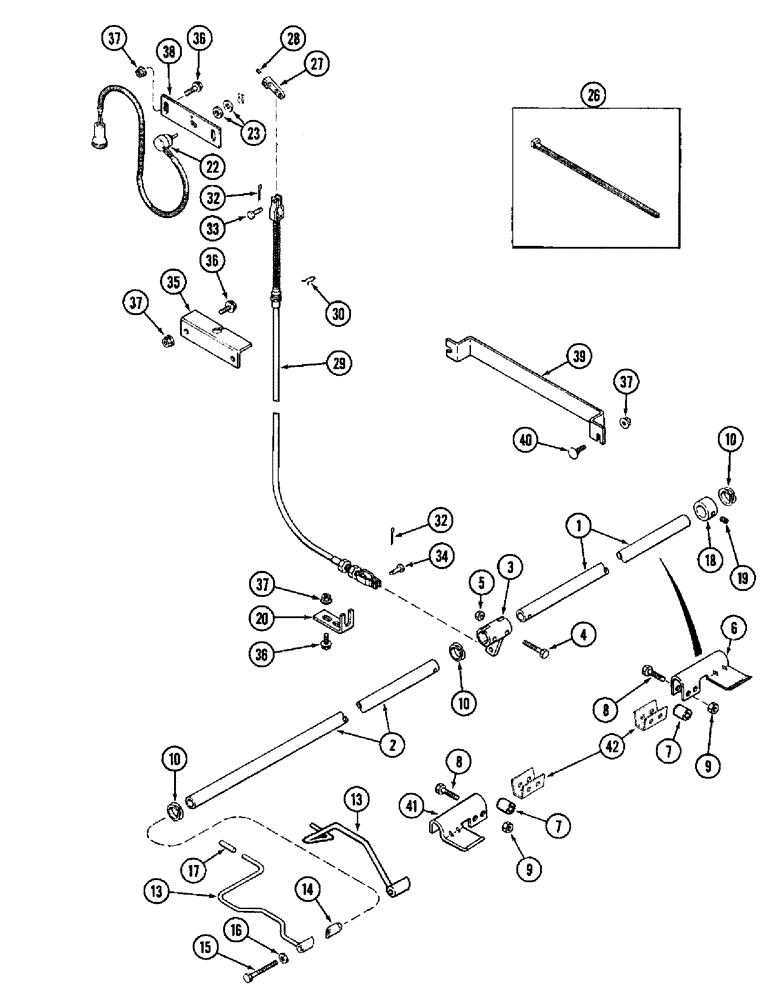

Запчасти Case IH 1020 (9D-22) - HEADER HEIGHT CONTROL (09) - CHASSIS/ATTACHMENTS

1

1320298C3

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, left-hand (15.0 foot)

1шт.

1

1326819C3

TUBE,22.22 mm OD, 1320.6 mm Length

- sensor, left-hand (16.5 foot)

1шт.

1

1320299C3

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, left-hand (17.5 foot)

1шт.

1

1320300C3

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, left-hand (20.0 foot)

1шт.

1

1320301C3

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, left-hand (22.5 foot)

1шт.

1

1320302C3

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, left-hand (25.0 foot)

1шт.

1

1320303C3

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, left-hand (30.0 foot)

1шт.

2

1307604C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right-hand (15.0 foot)

1шт.

2

1326820C2

TUBE,22.22 mm OD, 3504.1 mm Length

- sensor, right-hand (16.5 foot)

1шт.

2

1307605C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right-hand (17.5 foot)

1шт.

2

1307606C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right-hand (20.0 foot)

1шт.

2

1307607C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right-hand (22.5 foot)

1шт.

2

1307608C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right-hand (25.0 foot)

1шт.

2

1307609C2

TUBE,17.4 mm ID, 22.22 mm OD

- sensor, right-hand (30.0 foot)

1шт.

item # 2, if looking for upgrading spring kit, order p/n 341196A1

1шт.

3

1316388C1

ARM

- connector

1шт.

4

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.

5

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

2шт.

6

1307610C2

SUPPORT

- height control

1шт.

7

567987R1

SPACER,10.3mm ID x 15.88mm OD x 17.5mm L

- 5/8 x 11/16 inch, if used

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

9

9411655

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

1шт.

10

1313081C1

BUSHING,23mm ID x 28.57mm OD x 6.84mm L

- pivot

1шт.

13

126339A1

INDICATOR

ROD - indicator, no longer available order 126339A2

1шт.

13

126339A2

INDICATOR

ROD - indicator

1шт.

14

1316572C1

PLUG

- beveled

1шт.

15

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1шт.

16

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

17

1326543C1

CAP

- indicator end

1шт.

18

1308482C1

COLLAR

- sensing tube

1шт.

19

483-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set, hex socket headless, 1/4 NC x 1/4 inch, cup pt

1шт.

20

1320312C1

BRACKET

- cable anchor

1шт.

22

127360A2

POTENTIOMETER

Header Control

1шт.

22

1301147C91

POTENTIOMETER

Height Control, For 1400 Series Combines with Electro-Hydraulics

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

27

1968782C1

ARM

- potentiometer control, powdered metal (Alternate with 131175A1)

1шт.

27

131175A1

ARM

- potentiometer control, molded plastic (Alternate with 1968782C1)

1шт.

28

483-1084

SET SCREW,Hex Soc, #8-32 x 1/4"

SCREW - set, hex socket headless, No. 8 NC x 1/4 inch, cup point

1шт.

29

1316427C3

CABLE

- control

1шт.

30

148151

COTTER PIN,Hairpin, 716"

CLIP - control cable

1шт.

32

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

33

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

34

22906R1

HEADED PIN,1/4" x 3/4"

PIN, HEADED, 1/4" x 3/4"

1шт.

35

1308301C1

BRACKET

- mounting

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

6шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

7шт.

38

1308299C3

SUPPORT

STRAP - potentiometer mounting

1шт.

39

1320313C1

SUPPORT

- linkage shield

1шт.

40

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 NC x 3/4 inch

1шт.

41

185230A1

SUPPORT

- height control, if used

1шт.

42

189956A1

SPACER

- support, if used

1шт.
