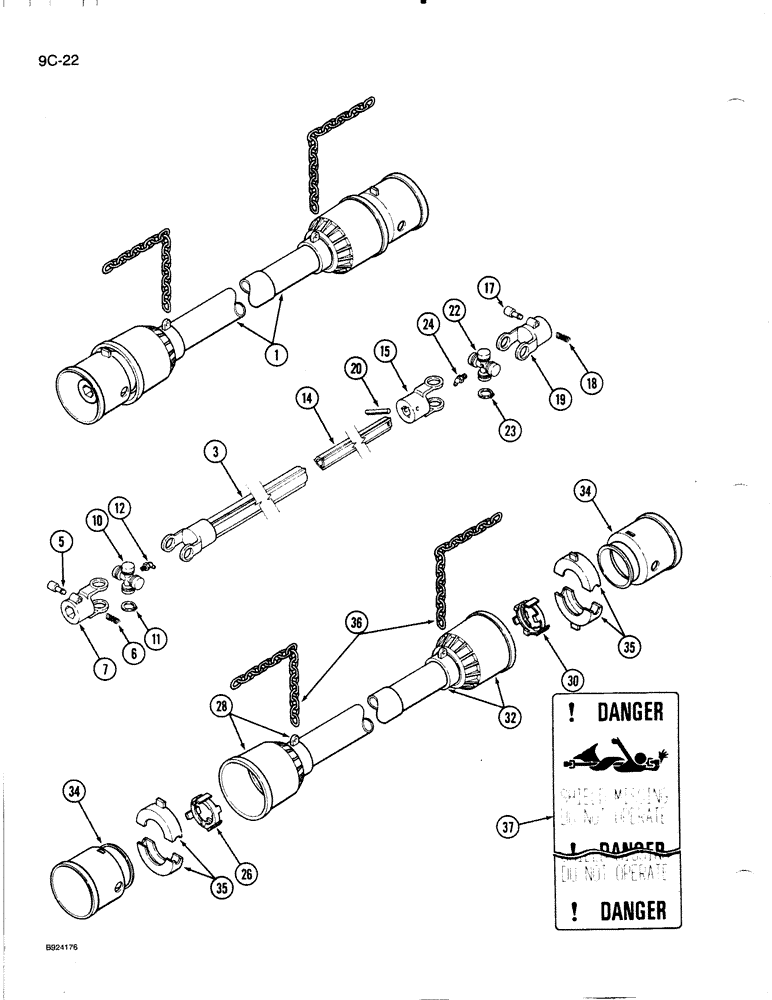

Запчасти Case IH 1020 (9C-22) - AUGER AND KNIFE DRIVE SHAFT, 15, 16-1/2, 17-1/2 AND 20 FOOT HEADER, BONDIOLI AND PAVESI (58) - ATTACHMENTS/HEADERS

1

1313569C92

DRIVE SHAFT

SHAFT ASSEMBLY - drive

1шт.

1326658C92

DRIVE SHAFT

SHAFT - female drive (Replaces 1326658C91)

1шт.

3

NSS

NOT SOLD SEPARAT

TUBE - outer (Order 1326658C92)

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing (Includes straight fitting, Ref 12)

1шт.

1325021C1

SPIDER

KIT - cross and bearing (Includes 45 degree fitting, Ref 12)

1шт.

1311950C1

KIT

- push pin

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - (Order 1311950C1)

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - (Order 1311950C1)

1шт.

7

1325022C1

YOKE

- outer (Order 1326658C92)

1шт.

10

NSS

NOT SOLD SEPARAT

CROSS AND BEARING - (Order 1330586C1)

1шт.

10

NSS

NOT SOLD SEPARAT

CROSS AND BEARING - (Order 1325021C1)

1шт.

11

933916R1

SNAP RING,M24, Int

RING - retaining, internal, 26 mm

4шт.

12

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, straight, 6 x 1 mm

2шт.

12

933926R1

LUBE NIPPLE,45 Degree, M8 x 1

FITTING - grease, 45 degree, M8/100

1шт.

1326623C92

DRIVE SHAFT

SHAFT - male drive (Replaces 1326623C92)

1шт.

14

NSS

NOT SOLD SEPARAT

TUBE - inner (Order 1326623C92)

1шт.

15

1545199C1

YOKE

- inner shaft (Order 1326623C92)

1шт.

1330586C1

REPAIR KIT

KIT - cross and bearing (Includes straight fitting, Ref 24)

1шт.

1325021C1

SPIDER

KIT - cross and bearing (Includes 45 degree fitting, Ref 24)

1шт.

1311950C1

KIT

- push pin

1шт.

17

NSS

NOT SOLD SEPARAT

PIN - (Order 1311950C1)

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - (Order 1311950C1)

1шт.

19

1325022C1

YOKE

- outer (Order 1326623C92)

1шт.

20

Q2935

LOCK PIN,M8 x 45, Slotted

PIN, LOCK, M8 x 45, Slotted

1шт.

22

NSS

NOT SOLD SEPARAT

CROSS AND BEARING - (Order 1330586C1)

1шт.

22

NSS

NOT SOLD SEPARAT

CROSS AND BEARING - (Order 1325021C1)

1шт.

23

933916R1

SNAP RING,M24, Int

RING - retaining, internal, 26 mm

4шт.

24

933756R1

LUBE NIPPLE,M6 x 1

FITTING - grease, straight, 6 x 1 mm

2шт.

24

933926R1

LUBE NIPPLE,45 Degree, M8 x 1

FITTING - grease, 45 degree, M8/100

1шт.

1326627C92

INNER SHIELD

SHIELD ASSEMBLY - outer female shaft (Replaces 1326627C92)

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - shield (Order 1326627C92)

1шт.

28

NSS

NOT SOLD SEPARAT

TUBE AND CONE ASSEMBLY

1шт.

1326630C92

OUTER SHIELD

SHIELD ASSEMBLY - inner male shaft (Replaces 1326630C92)

1шт.

30

NSS

NOT SOLD SEPARAT

BEARING - shield (Order 1326630C92)

1шт.

32

NSS

NOT SOLD SEPARAT

TUBE AND CONE ASSEMBLY

1шт.

1326625C91

SHIELD

ASSEMBLY - outer yoke

2шт.

34

NSS

NOT SOLD SEPARAT

CONE - end

1шт.

35

NSS

NOT SOLD SEPARAT

BEARING - shield (Order 1326625C91)

2шт.

36

1326632C1

CHAIN

- safety

2шт.

37

1326528C1

DECAL

- danger, shield missing (also shown on Figure 9D-30, item 19)

1шт.

38

1326752C1

DECAL

- instructions, drive shaft lubrication, not shown, see Figure 9D-30, item 20 for decal

1шт.
