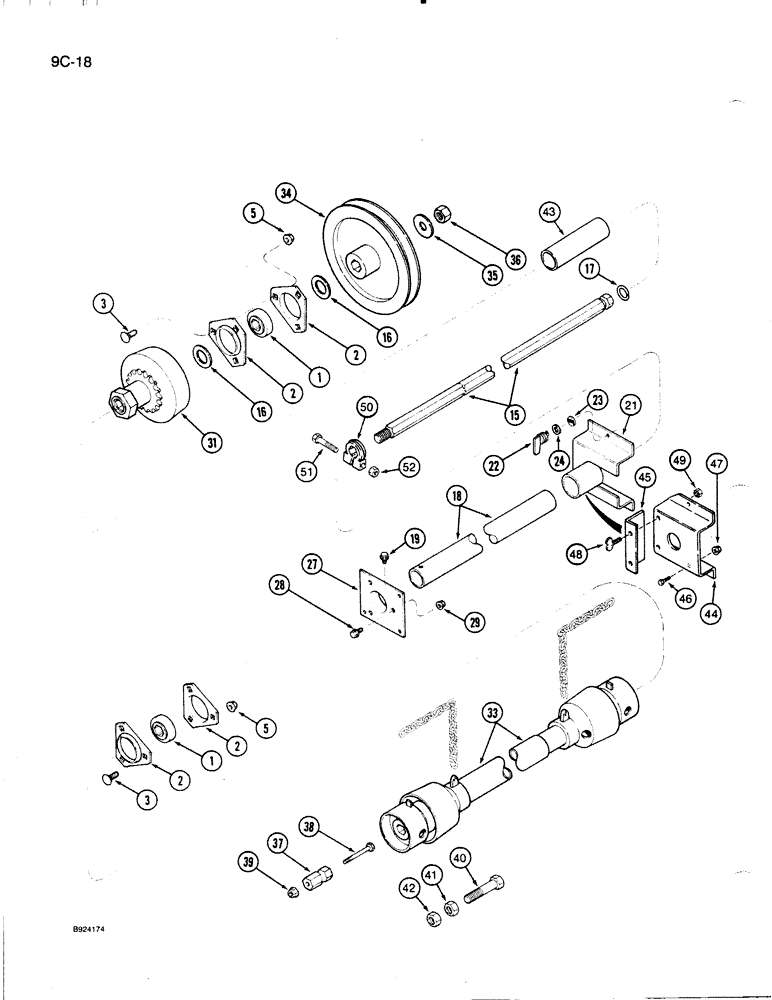

Запчасти Case IH 1020 (9C-18) - AUGER AND KNIFE JACKSHAFT DRIVE, 22-1/2 AND 25 FOOT HEADER (58) - ATTACHMENTS/HEADERS

1

156816C91

BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W

BEARING ASSEMBLY - jackshaft

2шт.

2

180955C1

FLANGED BEARING,0.375"

FLANGE - jackshaft bearing

4шт.

3

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - round head square neck, 3/8 NC x 1 inch

6шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- flanged hex lock, 3/8 inch NC

6шт.

15

1307343C2

JACKSHAFT

SHAFT - jackshaft, 22.5 foot header (Replaces 1307343C1)

1шт.

15

1307344C2

JACKSHAFT

SHAFT - jackshaft, 25.0 foot header (Replaces 1307344C1)

1шт.

16

495-81213

WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk

- flat, 1-13/32 x 2 x 3/64 inch (Replaces 608085R1)

2шт.

17

575186R1

SNAP RING

RING - retaining, slip clutch

1шт.

18

1320877C1

TUBE,48.26 mm OD, 547 mm Length

- jackshaft shield (22-1/2 foot header)

1шт.

18

1320876C1

TUBE,48.26 mm OD, 928 mm Length

- jackshaft shield (25 foot header)

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

1шт.

21

1320882C1

SHIELD

ASSEMBLY - clutch, used on models with auger and knife drive on left-hand side of header

1шт.

22

1316776C1

STUD

- shield fastener, if used

2шт.

23

1316777C1

LOCKING RING

RETAINER - shield, if used

4шт.

24

95-81068

WASHER,0.34" ID x 0.66" OD x 0.02" Thk

- flat, 11/32 x 21/32 x 1/64 inch (Replaces Q3817), if used

1шт.

27

1320880C1

SHIELD

- jackshaft

1шт.

28

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- flanged hex lock, 5/16 NC x 3/4 inch

3шт.

29

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flanged lock, 5/16 inch NC

3шт.

31

REF

INSTRUCTION

CLUTCH ASSEMBLY - with sprocket (See Page 9C-11)

1шт.

33

REF

INSTRUCTION

JOINT ASSEMBLY - drive shaft (See Pages 9B-23)

1шт.

34

REF

INSTRUCTION

PULLEY ASSEMBLY - drive (See Page 9-75)

1шт.

35

25557R1

WASHER,13/16" x 1 3/4" x .219", HDN

- flat, 13/16 x 1-3/4 x 7/32 inch

1шт.

36

131-1152

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

37

1307385C1

SHAFT

PIN - U-joint support (If equipped)

1шт.

38

113-133

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

- hex, 5/16 NC x 3-1/4 inch, if used

1шт.

39

131-1215

LOCK NUT,5/16"-18, GC

NUT, LOCK, , If used 5/16"-18, GC

1шт.

40

413-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5

If used Hex, 3/4"-10 x 3 1/2", G5

1шт.

41

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC, if used

1шт.

42

9413971

LOCK NUT,3/4"-10, GB

NUT - hex, lock, 3/4 inch NC, if used

1шт.

43

106025A1

SPACER

- retainer, special parts used on models w/ split auger and knife drive

1шт.

44

106073A1

SHIELD

- drive hub, special parts used on models w/ split auger and knife drive

1шт.

45

106072A1

SHIELD

COVER - shield, special parts used on models w/ split auger and knife drive

1шт.

46

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex, 1/4 NC x 3/4 inch, special parts used on models w/ split auger and knife drive

2шт.

47

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

- flange, lock, 1/4 inch, special parts used on model with split auger and knife drive

2шт.

48

62372C1

THUMB SCREW

- thumb, 1/4 x 1/2 inch, special parts used on model with split auger and knife drive

2шт.

49

564791R1

SPRING NUT

- speed, 1/4 inch, special parts used on models w/ split auger and knife drive

2шт.

50

1327106C1

COLLAR

- shaft, main, if used, special parts on models w/ split auger and knife drive

1шт.

51

326-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

If used, special parts on models w/ split auger and knife drive Hex, 3/8"-16 x 2 1/2", G8

1шт.

52

9413979

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC, grade 8, if used, special parts on models w/ split auger and knife drive

1шт.

Ref 32: should read see pages 9c-23 to 9c27.

1шт.
