(1-10) - PICTORIAL INDEX, REEL LIFT HYDRAULICS

Запчасти Case IH 1020 (1-10) - PICTORIAL INDEX, REEL LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS

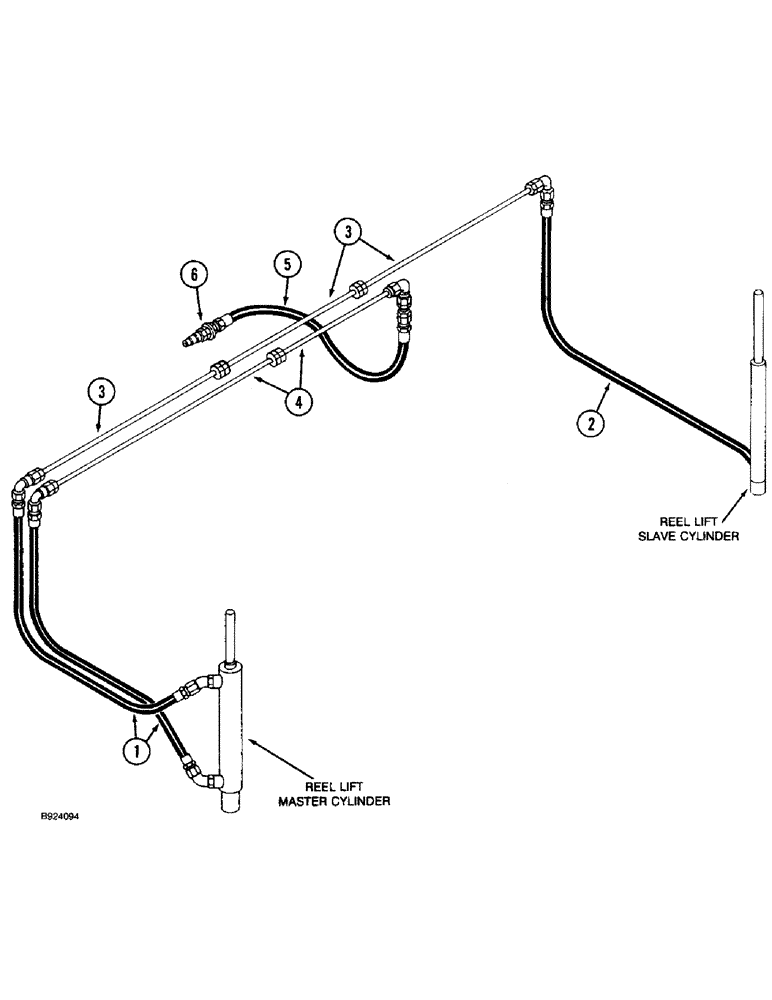

Схема запчастей Case IH 1020 - (1-10) - PICTORIAL INDEX, REEL LIFT HYDRAULICS (35) - HYDRAULIC SYSTEMS
3
3
6
4
5
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Reel Lift Master Cylinder Hose, Page 8-9, 8-11

1шт.

2

Reel Lift Slave Cylinder Hose, Page 8-9, 8-11

1шт.

3

Cylinder to Cylinder Tube, Page 8-9, 8-11

1шт.

4

Master Cylinder Tube, Page 8-9, 8-11

1шт.

5

Reel Lift to Combine Hose, Page 8-9, 8-11

1шт.

6

Male Coupling, Page 8-9, 8-11, 8-39

1шт.
