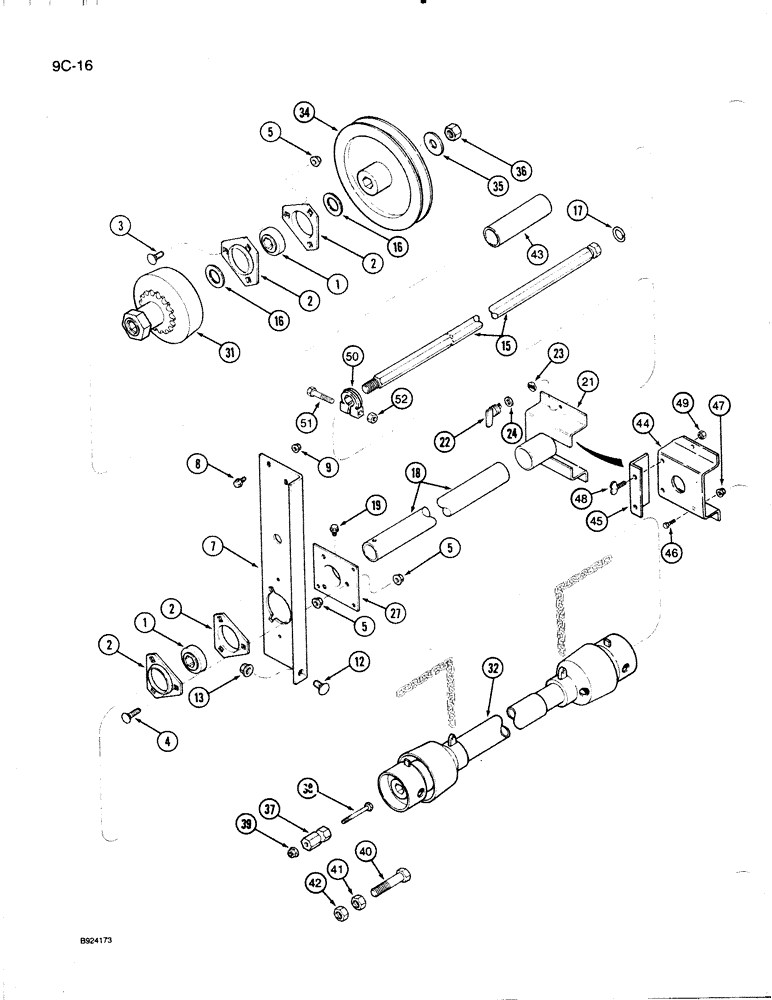

Запчасти Case IH 1020 (9C-16) - AUGER AND KNIFE JACKSHAFT DRIVE, 17-1/2 AND 20 FOOT HEADER (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
156816C91
BEARING HOUSING,28.6mm Hex x 72mm OD x 25mm W
BEARING ASSEMBLY - jackshaft
2шт.
2
180955C1
FLANGED BEARING,0.375"
FLANGE - jackshaft bearing
4шт.
3
434-616
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5
BOLT - round head square neck, 3/8 NC x 1 inch
3шт.
4
434-620
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5
BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5, Full Thd
3шт.
5
482256R1
BEARING LOCK NUT,Flg, USR, 3/8"-16
- flanged hex lock, 3/8 inch NC
9шт.
7
1307339C1
SUPPORT
ASSEMBLY - jackshaft
1шт.
8
202107C1
BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"
- hex flanged lock, 5/16 NC x 3/4 inch
2шт.
9
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
- flanged hex lock, 5/16 inch NC
2шт.
12
434-816
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5
BOLT - round head square neck, 1/2 NC x 1 inch
1шт.
13
131-930
FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5
- hex flange, self locking, 1/2 inch NC
1шт.
15
1320906C2
SHAFT
- jackshaft, 17.5 foot header (Replaces 1320906C1)
1шт.
15
1307342C2
JACKSHAFT
SHAFT - jackshaft, 20.0 foot header (Replaces 1307342C1)
1шт.
16
WASHER,35.71mm ID x 50.8mm OD x 1.7mm Thk
- flat, 1-13/32 x 2 x 3/64 inch (Replaces 608085R1)
2шт.
17
575186R1
SNAP RING
RING - retaining, slip clutch
1шт.
18
1320879C1
TUBE,48.26 mm OD, 258.5 mm Length
- jackshaft shield (17-1/2 foot header)
1шт.
18
1320878C1
TUBE,48.26 mm OD, 741 mm Length
- jackshaft shield (20 foot header)
1шт.
19
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
1шт.
21
1320882C1
SHIELD
ASSEMBLY - clutch, used on models with auger and knife drive on left-hand side of header
1шт.
22
1316776C1
STUD
- shield fastener, if used
2шт.
23
1316777C1
LOCKING RING
RETAINER - shield, if used
4шт.
24
95-81068
WASHER,0.34" ID x 0.66" OD x 0.02" Thk
- flat, 11/32 x 21/32 x 1/64 inch (Replaces Q3817), if used
1шт.
27
1320880C1
SHIELD
- jackshaft
1шт.
31
REF
INSTRUCTION
CLUTCH ASSEMBLY - with sprocket (See Page 9C-10)
1шт.
32
REF
INSTRUCTION
JOINT ASSEMBLY - drive shaft (See Pages 9C-11 through 9C-15)
1шт.
34
REF
INSTRUCTION
PULLEY ASSEMBLY - drive (See Page 9B-24)
1шт.
36
131-1152
LOCK NUT,3/4"-10, GC
NUT, LOCK, 3/4"-10, GC
1шт.
37
1307385C1
SHAFT
PIN - U-joint support (If equipped)
1шт.
38
113-133
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
- hex, 5/16 NC x 3-1/4 inch, if used
1шт.
39
131-1215
LOCK NUT,5/16"-18, GC
NUT, LOCK, , If used 5/16"-18, GC
1шт.
40
413-1256
BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 5
If used Hex, 3/4"-10 x 3 1/2", G5
1шт.
41
425-1012
NUT,3/4"-10, G5
- hex, 3/4 inch NC, if used
1шт.
42
9413971
LOCK NUT,3/4"-10, GB
NUT - hex, lock, 3/4 inch NC, if used
1шт.
43
106025A1
SPACER
- retainer, special parts used on models w/ split auger and knife drive
1шт.
44
106073A1
SHIELD
- drive hub, special parts used on model w/ split auger and knife
1шт.
45
106072A1
SHIELD
COVER - shield, special parts used on model w/ split auger and knife drive
1шт.
46
409-7412
BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl
- hex, 1/4 NC x 3/4 inch, special parts used on model w/ split auger and knife drive
2шт.
47
938016R1
FLANGE NUT,Flg, USR, 1/4"-20
- flange, lock, 1/4 inch, special parts used on model with split auger and knife drive
2шт.
48
62372C1
THUMB SCREW
- thumb, 1/4 x 1/2 inch, special parts used on model with split auger and knife drive
2шт.
49
564791R1
SPRING NUT
- speed, 1/4 inch, special parts used on model with split auger and knife drive
2шт.
50
1327106C1
COLLAR
- shaft, main, if used, special parts on model w/ split auger and knife drive
1шт.
51
326-640
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8
If used, special parts on model w/ split auger and knife drive Hex, 3/8"-16 x 2 1/2", G8
1шт.
52
9413979
LOCK NUT,3/8"-16, GC
NUT - hex, lock, 3/8 inch NC, grade 8, if used, special parts on model w/ split auger and knife drive
1шт.
Выбрано товаров: 43
